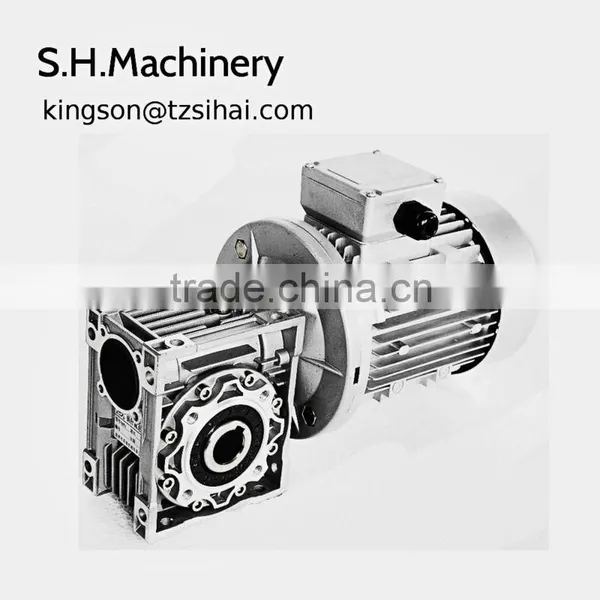

Stable Gearbox ,DC Motor Gearbox ,electric Motor Gearbox

Name: Stable Gearbox ,DC Motor Gearbox ,electric Motor Gearbox
Brand: Chen Xin
SKU: 104128871

US$ 24.5 - 335 MOQ: 1 Piece

Key Specifications

Gearing Arrangement:

Worm

Output Torque:

2.6---1195N.M

Rated Power:

0.06-15kw

Taizhou Sihai Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Gearing Arrangement Worm

Output Torque 2.6---1195N.M

Rated Power 0.06-15kw

Input Speed 1400rpm

Output Speed 14-280rpm

Place of Origin Zhejiang, China

Model Number RV025-RV150

Brand Name Chen Xin

Specifications

1.Stable gearbox ,DC motor gearbox ,electric motor gearbox
2.Large in output torque
3.Smooth running and low noise

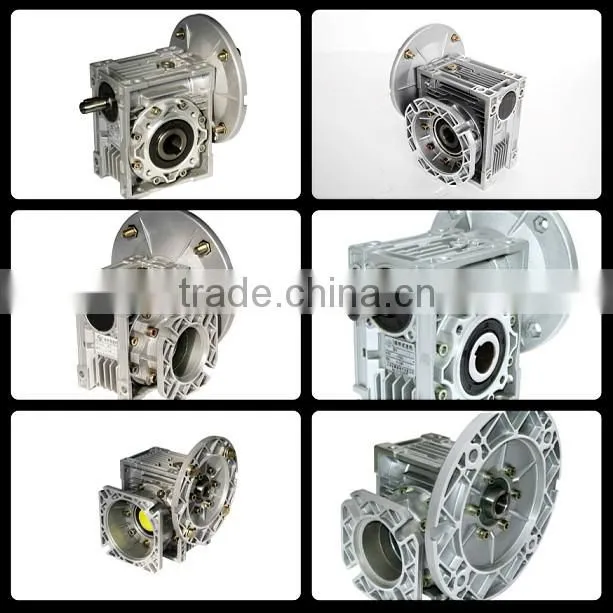

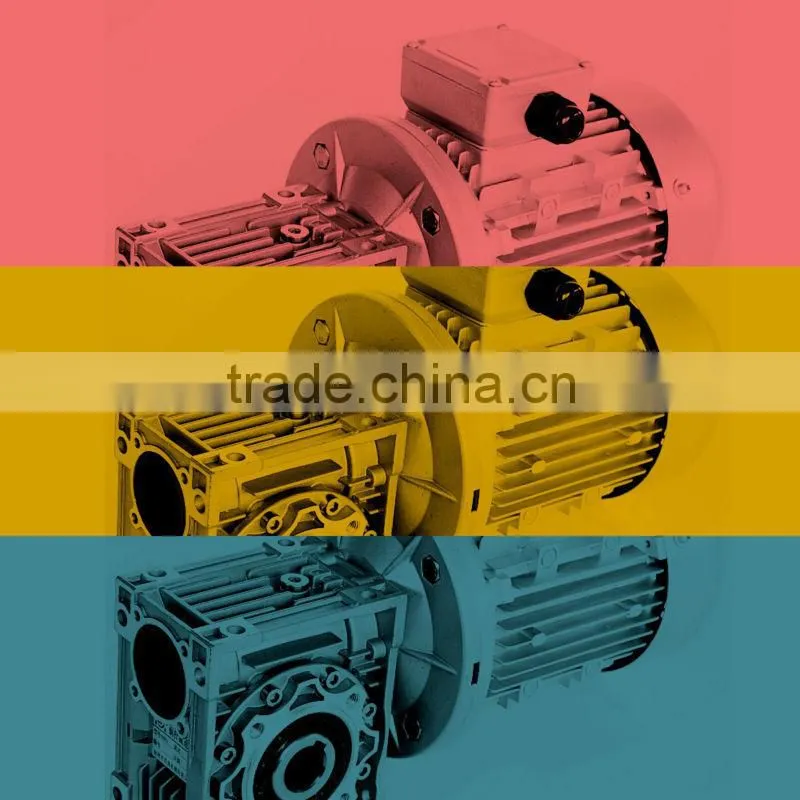

Stable gearbox ,DC motor gearbox ,electric motor gearbox

Features

Wide transmission rate, strong output torque
Structure: base-mounted, input shaft, input flange, additional single or double output shafts
Compact mechanical structure, light weight, small volume
Good temperature change resistance
Smooth operation with lower noise or vibration
Easy mounting, free linking, high efficiency
Wide range of application

Applications

Widely used in material handing, automation, machine tool, aerospace, food, packing, pharamceutical, printing industry that require to lower the speed driven by motors or other engines.

Model	RV025 030 040 050 063 075 090 110 130 150
Single unit versions	NMRV - fitted for motor flanged coupling, NRV - with input shaft, NMRV-E motor flanged coupling with worm extension shaft, NRV-E with double extension worm shaft,
Power	0.06----15KW
Single unit reduction ratio	1:5 7.5 10 15 20 25 30 40 50 60 80 100
Output torque	2.6---1195N.M
Worm shaft	20CrMnTi with carburizing and quenching.The hardness of surface is 56-62HRC with carbonized layer 0.5-0.8mm
Worm wheel	worm mandrel is HT250,and worm ring gear,ZQSn10-1
