Specifications
We have VLU200944 Slewing bearings in stock ,Good price ,high precision,We are professional China Bearing Manufacturer

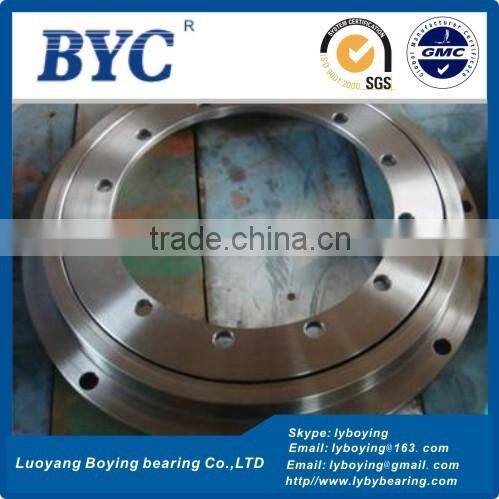

VLU200944 Slewing Bearings (834x1048x56mm) BYC Band rolling bearing turntable slew ring Import replace
A . Slewing Bearings Parameters
Brand- BYC
Model number- VLU200944
Inner ring(mm)- 834
Outer ring(mm)- 1048
Width(mm)- 56
Weight(Kg)- 54
Materials- GCR15/GCR15SiMn/50Mn/42CrMo/5CrMnMo
Series- VLU20
Lubrication type- Grease lubrication
Rolling elements- Ball
Load direction- Multi-load
Structure- Four Point Contact Ball,without gear teeth
B . VLU200944 Slewing Bearings Specification Sheet
| Designation | Mass (kg) |
Dimensions (mm) | Fixing holes | Fixing screws Fr kN |
Gear teeth |
Tooth force | Basic load ratings (axial) |
Basic load ratings (radial) |
||||||||||||
| Da | di | Di | da | Width | La | na | Li | ni | d0 | m | z | Fz norm kN |
Fz max kN |
dyn. Ca kN |
stat. C0a kN |
dyn. Cr kN |
stat. C0r kN |
|||
| VLU200944 | 54 | 1048 | 834 | 945.5 | 942.5 | 56 | 1020 | 16 | 905 | 22 | 90.9 | 856 | 8 | 107 | 31.4 | 46.7 | 231 | 670 | 151 | 250 |
C . VLU20 type Slewing Bearings Details
Product Features
Slewing Bearings have high load carrying capacity, a versatile range of applications and are highly cost-effective.Due to their design, a single bearing can reliably support radial,axial and tilting moment loads. It is therefore possible in many cases to replace bearing arrangements comprising a combination of radial and axial bearings by a single bearing. BYC Slewing Bearings have Two types:Four point contact slewing bearings and crossed roller slewing bearings.
Series Introduction

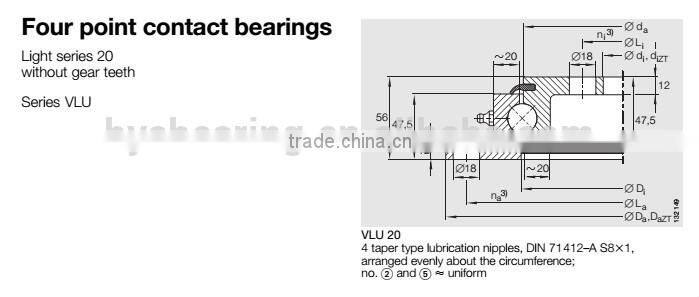

Four point contact bearing, light series 20, without gear teeth, selectable internal clearance, sealed, lubrication nipple on circumference of outer ring
Series Model No.
VLA200414N,VLA200544N,VLA200644N,VLA200744N,VLA200844N,VLA200944N,VLA201094N;
VLI200414N,VLI200544N,VLI200644N,VLI200744N,VLI200844N,VLI200944N,VLI201094N;
VLU200414,VLU200544,VLU200644,VLU200744,VLU200844,VLU200944,VLU201094;
VSA200414N,VSA200544N,VSA200644N,VSA200744N,VSA200844N,VSA200944N,VSA201094N;
VSI200414N,VSI200544N,VSI200644N,VSI200744N,VSI200844N,VSI200944N,VSI201094N;
VSU200414,VSU200544,VSU200644,VSU200744,VSU200844,VSU200944,VSU201094;
VSA250755N,VSA250855N,VSA250955N,VSA251055N;
VSI250755N,VSI250855N,VSI250955N,VSI251055N;
VSU250755,VSU250855,VSU250955,VSU251055;
VA140188V,VA160235N,VA160302N,VA250309N;
VI160288N,VI140326V,VI160420N;
VU140179,VU200220,VU130225,VU200260,VU140325,VU250380,VU200405,VU250433,VU300574,VU360680;
Applications
Product Application:Turntable, Tower Crane, Excavator,Machine Tools,Gear reducer,Textile machine,wind turbines etc.
D . VLU20 type Slewing Bearings Installation & Cautions
1. Four point contact slewing bearings
– these slewing rings without preload are robust and provenunder very demanding operation; they place only slight demands on the flatness and perpendicularity of the adjacent construction
– they are suitable for applications with low requirements for accuracy and rigidity of the bearing arrangement, for example in
simple metalworking machines, wind power equipment and
2. Crossed roller slewing bearings
– these preloaded slewing rings can support higher loads than four point contact bearings. They have proved themselves
particularly where bearings are subjected to high radial forces and moderate axial and tilting moment loads
– they are suitable for applications with uniform running free from stick-slip, low rotational resistance and high requirements for axial and radial runout accuracy and rigidity, for example in robots,handling systems and machine tools.
1.Your inquiry to our product & price will be replied within 24 hours.
2.Well-trained & experienced staff are to answer all your inquiries in English of course.
3.OEM & ODM projects are highly welcomed. We have strong R&D team here to help.
4.Your business relationship with us will be confidential to any third party.
5.Good after-sale service offered, please get back if you got question
6.Nowadays, as a professional precision bearing manufacture, we are proud of continual innovation, flexible production, speedy delivery, rapid after-sales service(2 years) and quick response.
Luoyang BoYing Bearing Co., Ltd, (BYC) is a professional manufacturer of high precision bearings,The main products are Crossed roller bearings , YRT Rotary Table Bearings , Crossed Tapered Roller Bearings , Cylindrical Thrust Roller Bearing , Angular Contact Ball Bearings , Thin Section Bearings,Slewing Bearings , Ball Screw Bearings . The accuracy grades are P5, P4, P2, and the size of inner ring are ranging from Φ50mm --- Φ1300mm. Our products are optimal for Robotics, Machine Tools, Rotary Table, medical equipment, measuring instruments ,mainly to replace the imported bearings. Also, we can design,choose and manufacture non-standard precision bearings as customer requested.
1. Industrial Neutral Packing,Package as your requirements.
2. Small size Bearings:Plastic vacuum packaging bag+Paper Box/Neutral Carton
3.Large size Bearings:Plastic film+Brown paper+Roll tape+Wooden Box
4.Shipping:By air or By sea:DHL/TNT/UPS/EMS etc
