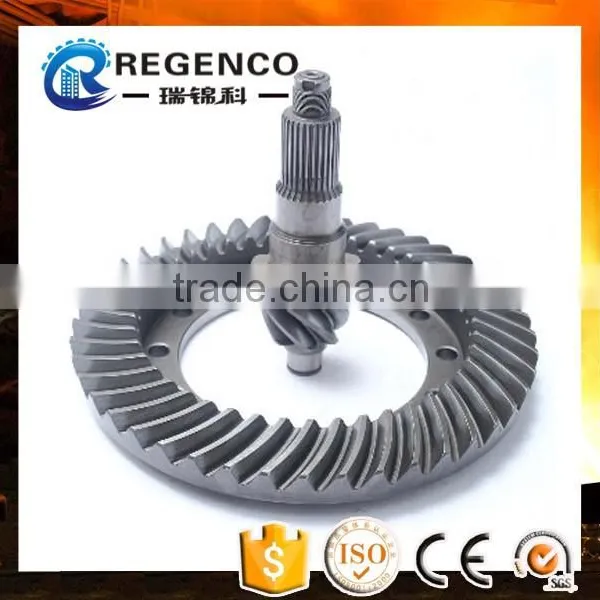

Crown Wheel & Pinion Gear 6x41, high quality P16

Ratio:

6:41

Modulus:

10.858

Noise:

76~82 db

Offset:

35mm

Net Weight:

36.55kg

Material:

20CrMnTi

Hardness:

58~62 HRC

Carburization Depth:

1.5-1.9mm

Pinion

Spline:

29

Length:

300mm

Outer Diameter:

Φ103.8mm

Crown Wheel

Inner Diameter:

Φ240mm

Outer Diameter:

Φ445mm

Thickness:

59mm

Machining Equipments

CNC center, CNC milling machine, CNC turning machine, CNC lathes,5 axis machine etc.

Materials

1. Stainless Steel: SS201, SS303, SS304, SS316, SS416, SS420

2. Steel:C45(K1045), C46(K1046),C20

3. Brass:C36000 ( C26800), C37700 ( HPb59), C38500( HPb58), C27200 (CuZn37), C28000(CuZn40)

4. Bronze: C51000, C52100, C54400, etc

5. Iron: 1213, 12L14,1215

6. Aluminum: Al6061, Al6063

7.OEM according to your request

Processing

Designing drawing, Opening mould/tooling, Precision machining (forging, Machining, Hobbing, Milling, Shaping, Shaving, Grinding, Heat treatment.) Inspection, Packing and shipping

QC :

Technicians self-check in production, final-check before package by professional Quality inspector

Heat Treatment Method

Carburizing, Induction, Flame, Nitriding, etc.

Main Machines

NC gear hobbing machines, NC Gear Shapers (Gealson, Moude), NC lathe, NC gear Shaving machines, NC gear millling, Nc gear grinding Machines.

Surface Finish

Anodize, Plating, Brushing, Polishing, Blackened, Powder coating,   Sandblasting, Laser engraving etc.

Inspection Equipment

CMM, Projection, Calipers, Micro caliper, Thread Micro caliper, Pin   gauge, Caliper gauge, Pass meter, Pass meter etc.

Advantage

Quality first Service superior , Advanced equipment,Experienced workers, Perfect testing equipment

Application

Medical parts; Machine parts; Aerospace machinery parts; Ships equipment parts; Electrical parts; Furniture parts; Kitchen tools; Telecommunications, etc.
