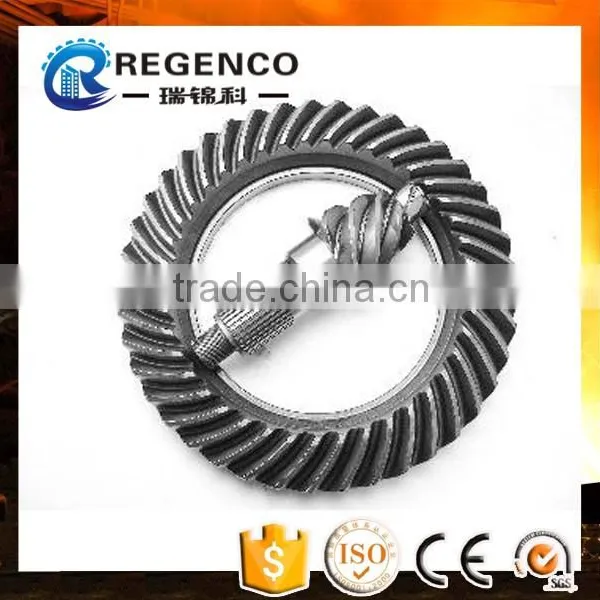

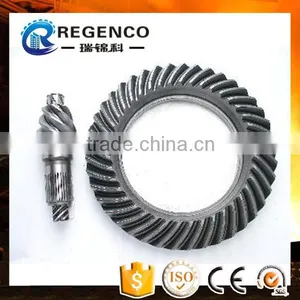

6x39 Crown Wheel & Pinion Gear
>>Basic Information
Ratio: |
6:39 |
Modulus: |
11.131 |
Noise: |
76~82 db |
Offset: |
35mm |
Net Weight: |
32.5kg |
Material: |
20CrMnTi |
Hardness: |
58~62 HRC |
Carburization Depth: |
1.5-1.9mm |
Pinion |
Spline: |
34 |
|
Length: |
287mm |
Outer Diameter: |
Φ104.4mm |
Crown Wheel |
Inner Diameter: |
Φ270mm |
|
Outer Diameter: |
Φ428mm |
Thickness: |
57.5mm |
>>Specifications:
Machining Equipments |
CNC center, CNC milling machine, CNC turning machine, CNC lathes,5 axis machine etc. |
Materials |
1. Stainless Steel: SS201, SS303, SS304, SS316, SS416, SS420 2. Steel:C45(K1045), C46(K1046),C20 3. Brass:C36000 ( C26800), C37700 ( HPb59), C38500( HPb58), C27200 (CuZn37), C28000(CuZn40) 4. Bronze: C51000, C52100, C54400, etc 5. Iron: 1213, 12L14,1215 6. Aluminum: Al6061, Al6063 7.OEM according to your request |
Processing |
Designing drawing, Opening mould/tooling, Precision machining (forging, Machining, Hobbing, Milling, Shaping, Shaving, Grinding, Heat treatment.) Inspection, Packing and shipping |
QC : |
Technicians self-check in production, final-check before package by professional Quality inspector |
Heat Treatment Method |
Carburizing, Induction, Flame, Nitriding, etc. |
Main Machines |
NC gear hobbing machines, NC Gear Shapers (Gealson, Moude), NC lathe, NC gear Shaving machines, NC gear millling, Nc gear grinding Machines. |
Surface Finish |
Anodize, Plating, Brushing, Polishing, Blackened, Powder coating, Sandblasting, Laser engraving etc. |
Inspection Equipment |
CMM, Projection, Calipers, Micro caliper, Thread Micro caliper, Pin gauge, Caliper gauge, Pass meter, Pass meter etc. |
Advantage |
Quality first Service superior , Advanced equipment,Experienced workers, Perfect testing equipment |
Application |
Medical parts; Machine parts; Aerospace machinery parts; Ships equipment parts; Electrical parts; Furniture parts; Kitchen tools; Telecommunications, etc. |
>>Main Product
- Spur Gear
- Planetary Gear
- Metal Gears Small
- Gear Wheel
- Ring Gear
- Gear Shaft
- Helical Gear
- Pinion Gear
-
Spline Shaft
>> Order Operation Process
>> Workshop
>>Production Equipment
>>Process
>>Inspection Equipment
>>Packaging and Shipping
>>Mode of Transportation
>>Application
>>FAQ
Q: Are you a manufacturer or a trading company?
A: We are a trading company which has been specializing in rigging hardware & lifting products for more than 10 years.
Q: Can you provide the free samples?
A: Yes, we can provide the free samples, but the freight is on your side.
Q: Can you supply customized gearboxes or gears?
A: Yes, we can customize any kinds of gear and gearbox as per your requirement or drawings.
Q: What information should be given, if I want to buy gearbox?
A: Gearbox ratio, gear type, speed ratio, input / output speed, rated power, mounting position, More details will be welcomed.
