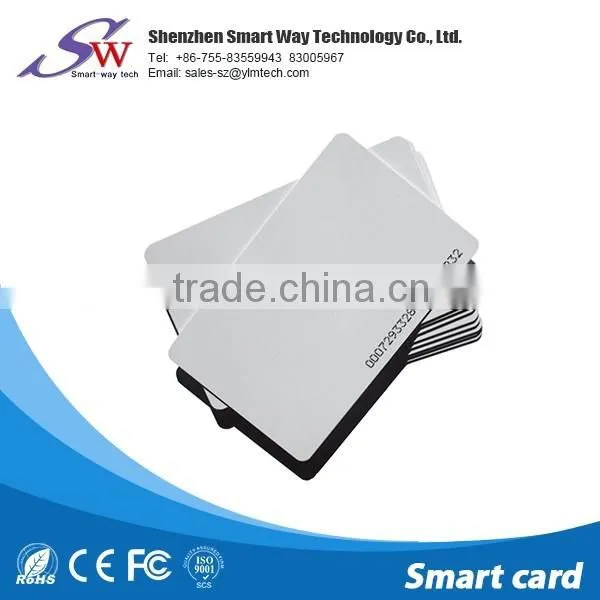

ID card 4100D

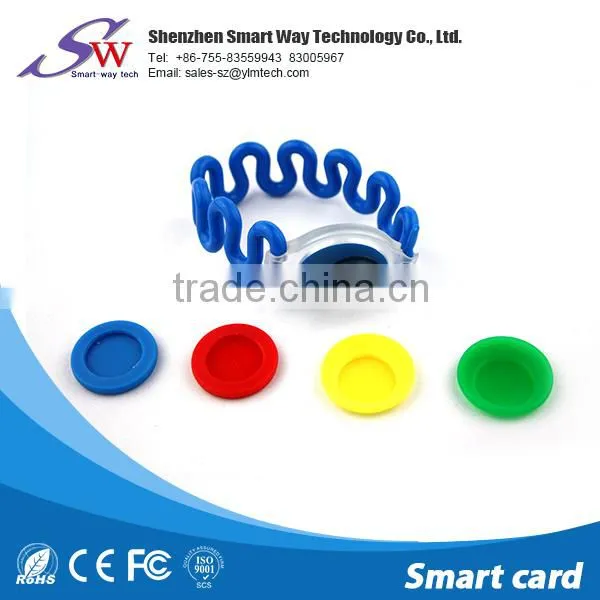

TM card:tm1990a,ds1990,rw1990a.... RFID:em4100,tk4100,4100d,t5577,em4305,mifare 1,s50,s70
The EM4100 (previously named H4100) is a CMOS integrated circuit for use in electronic Read Only RF Transponders. The circuit is powered by an external coil placed in an electromagnetic field, and gets its master clock from the same field via one of the coil terminals. By turning on and off the modulation current, the chip will send back the 64 bits of information contained in a factor ypre-programmed memory array.The programming of the chip is performed by laser fusing of polysilicon links in order to store a unique code on each chip.The EM4100 has several metal options which are used to define the code type and data rate. Data rates of 64, 32 and 16 periods of carrier frequency per data bit are available. Data can be coded as Manchester, Biphase or PSK.Due to low power consumption of the logic core, no supply buffer capacitor is required. Only an external coil is needed to obtain the chip function. A parallel resonance capacitor of 74 pF is also integrated.
RF card structure
APPLICATIONS
1,Logistics automation
2,Anticounterfeiting
3,Access control
4,Industrial transponder
SPECIAL FEATURES
64 bit memory array laser programmable
Several options of data rate and coding available
On chip resonance capacitor
On chip supply buffer capacitor
On chip voltage limiter
Full wave rectifier on chip
Large modulation depth due to a low impedance
modulation device
Operating frequency 100 - 150 kHz
Very small chip size convenient for implantation
Very low power consumption
Can Be Read in Less Than 5ms
Operating Range: 2.8V to 6.0V, -40°C to +85°C
Shenzhen Smart Way technology Co.,Ltd set up on 2011,built in Futian District, Shenzhen, China. our products are smart cards of access control and security equipment,such as Ibutton,RF cards,chips,etc.our core service is credit first customer,welcome your coming. ID card 4100D ID card 4
100D ID c
Factory show
ard 4100D
1.Can you provide a sample?
yes,we offer free samples,but the buyer need to provide shipping.
2.Weather to provide customized design?
yes,modified and customer design is avaliable.
3.How about the leadtime?
depend on the quantity of your order.
4.How about the leadtime for the sample?
3-7days.
5.What's your payment terms?
T/T or Western Union.
6.How do you ship the order normally?
For large qty order,ship the goods by sea.
For small qty order,by air or express.we supply optional express for you,including DHL,FEDEX,UPS,TNT,EMS and so on.
Why you should choose us!
1:We have more than 10 years experience in security and protection industry.
2:We have more than 10 years experience doing foreign trade,so we have perfect program for business.
3:Our products Sales to over the world.
ID card 4100D ID card 4100D ID card 4100D
