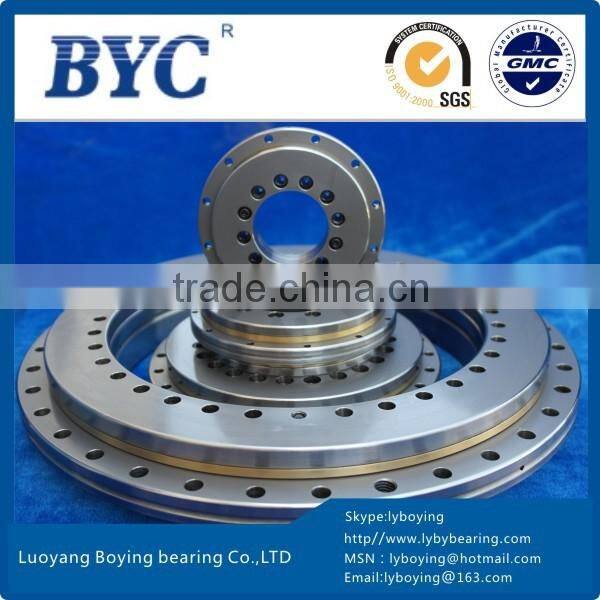

Axial Radial Bearing YRT100 (100x185x38mm) Rotary Table Bearing BYC High Rigidity Slewing Turntable Bearing

Axial Radial Bearing YRT100 (100x185x38mm) Rotary Table Bearing BYC High rigidity slewing turntable bearing

A . Axial Radial Bearing Parameters

Brand- BYC

Model number- YRT100

Inner ring(mm)- 100

Outer ring(mm)- 185

Width(mm)- 38

Weight(Kg)- 4.1

Materials- GCR15/GCR15SiMn

Precision grade- P4/P2

Lubrication type- Grease lubrication

Rotating part- Inner ring/Outer ring

Load direction- Multi-load

Structure- Integrated Inner/Outer Ring,Mounting Hole in Inner/Outer Ring

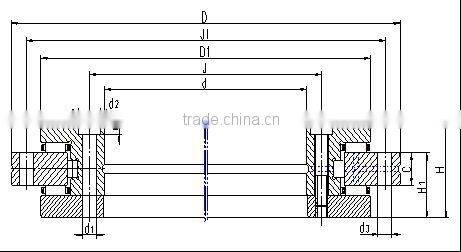

B . Axial Radial Bearing YRT100 Specification Sheet

C . Axial Radial Bearing YRT Details

Product Features

Axial radial bearings YRT are axial and radial combined cylindrical roller bearings, including two thrust needle roller bearings and a radial cylindrical roller bearing with the combination of axial and radial preload, For the convenience of transportation and fixing, two or three symmetrical screws are fastened to the two rings in order to prevent rollers and rings generating collisions which influence bearing accuracy.

Series Model No.

YRT50 YRT80 YRT100 YRT120 YRT150 YRT180 YRT200 YRT260 YRT325 YRT395 YRT460 YRT580 YRT650 YRT850 YRT950 YRT1030 YRT1200

YRTS200,YRTS260,YRTS325,YRTS395,YRTS460,YRTS580 YRTM150,YRTM180,YRTM200,YRTM260,YRTM325,YRTM395,YRTM460,YRTM580

ZKLDF100,ZKLDF120,ZKLDF150,ZKLDF180,ZKLDF200,ZKLDF260,ZKLDF325,ZKLDF395,ZKLDF460,ZKLDF580

Applications

-Precision machine tools

-precision Turntable, NC rotary table

-Rotation part of Machine tools

-Inspection instrument,Medical equipment

-Indexing plate of other precision machines etc

D. Installation

Design & Installation for  Axial Radial Bearing YRT :

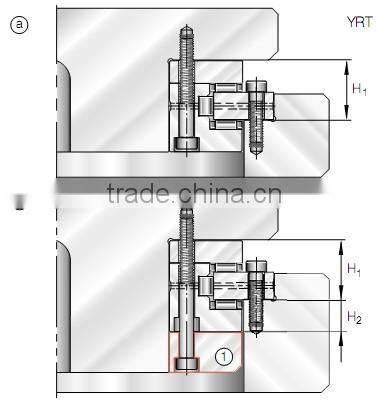

Structure with the requirements shown in Figure 1

Retaining screws secure the bearing components during transport. For installing the bearing easier, the screws should be loosened before fitting, and secured again or replaced by positioning screws after fitting.

The L-section ring can be fitted with unsupported or supported ring.

a)  Without supported ring, the bearing type is YRT.

b)  With supported ring, the bearing type is YRT-VSP.And the whole surface of L-section should be supported.

Mounting forces must only be applied to the YRT bearing ring to be fitted, never through the rolling elements.

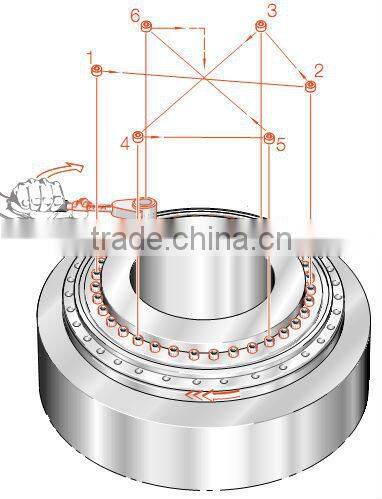

Tighten the fixing screws in crosswise using a torque wrench (shown in Figure 2).

Don’t separate or interchanged bearing components during fitting and dismantling.

Starting friction torque can be 3 to 3.5 times as high as the value of friction torque in the dimension tables.
