ibutton reader
Specifications

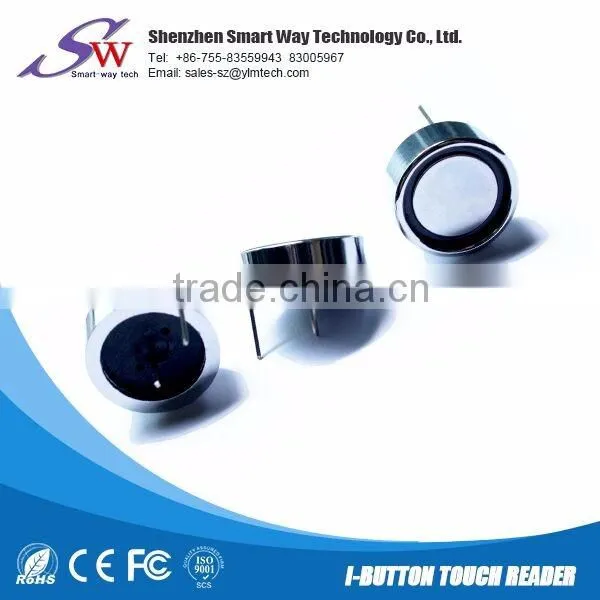

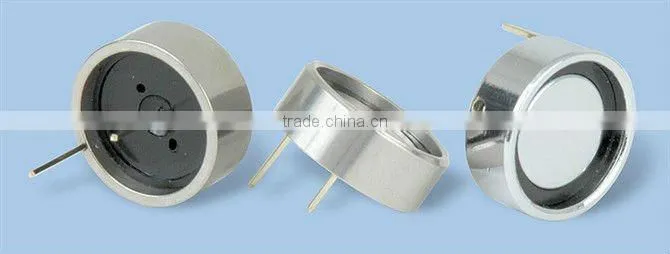

IButton Probe Reader
Factory with 10 years experience
Full stainless steel part
Integrated green LED for signal lighting
ibutton reader
FEATURE
- With sound hint
- Solid metal read/write probe for touch memory button
- Integrated green LED for signal lighting
- Probe guides the entry of touch memory
- Probe suited for panels thickness 2-3mm
- Contact made from:
Shell— Stainless steel 304
Data pole— 304 stainless steel
- Pre-wired for wasy installation:
- Wire— 17*0.14 copper wire, 4mm tinplating
- Lug plate--silver plating
- LED Current is MAX20mA.
- Installation: can be easily installed on doors, exterior design size and information card just coincide, reading card is very sensitive
5.Led color:light red green
DESCRIPTION

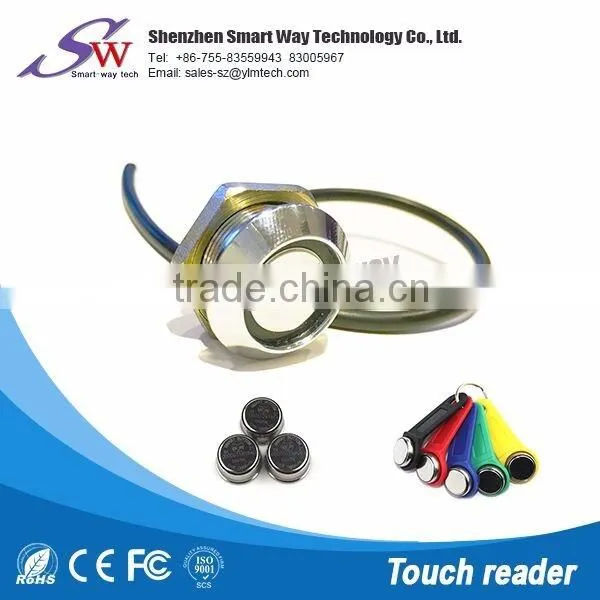

9092L iButton Probe with LED provides the electrical contact necessary for the transfer of data to and from the DS19xx family of iButtons. The round probe shape provides a self-aligning interface that readily matches the circular rim of the iButton’s MicroCan package. The solid metal contacts resist wear and are easy to keep clean.

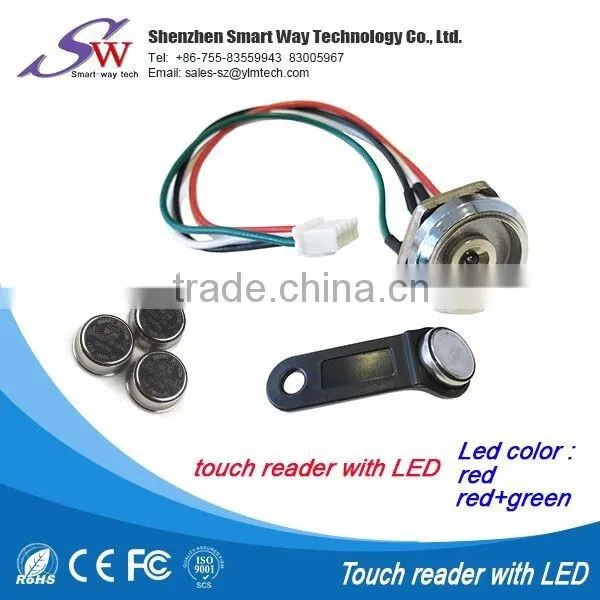

DS9092L has no moving parts, making it a rugged interface for harsh environments. The round center contact of DS9092L houses the LED that is rated for maximum 20 mA DC at 2.7V typically.

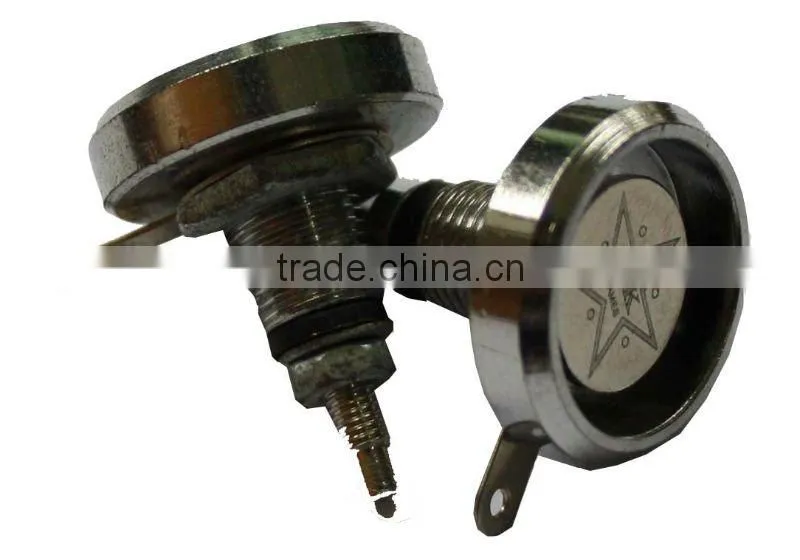

The probe comes with a brass M18*1 nut for panel mounting. Since the body of the probe also forms the ground contact, the panel should be of non-conducting material to avoid ground loops. The 30cm cable with connector is provided for easy connection to the system microcontroller. The mating connector is a Molex Part Number 22-04-1041.
ibutton reader
Smart cards we could produce:
TM card: TM1990A, RW1990, DS1991, DS1971, DS1963...
RFID card: EM4100, EM4305, T5567 / T5577, Mifare 1, Mifare S50, Mifare S70...
ibutton reader
1.Can you provide a sample?
yes,we offer free samples,but the buyer need to provide shipping.
2.Weather to provide customized design?
yes,modified and customer design is avaliable.
3.How about the leadtime?
depend on the quantity of your order.
4.How about the leadtime for the sample?
3-7days.
5.What's your payment terms?
T/T or Western Union.
6.How do you ship the order normally?
For large qty order,ship the goods by sea.
For small qty order,by air or express.we supply optional express for you,including DHL,FEDEX,UPS,TNT,EMS and so on.
Why you should choose us?
1:We have more than 10 years experience in security and protection industry.
2:We have more than 10 years experience doing foreign trade,so we have perfect program for business.
3:Our products Sales to over the world .
Shenzhen Smart Way technology Co.,Ltd set up on 2011,built in Futian District, Shenzhen, China. our products are smart cards of access control and security equipment,such as Ibutton,RF cards,chips,etc.our core service is credit first customer,welcome your coming.
