Product Details
| Condition: | New | Function: | Embossing, Filling, Sealing | Application: | Apparel, Beverage, Chemical, Commodity, Food, Other, Medical, Textiles, Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles |
| Packaging Type: | Bags | Packaging Material: | Plastic | Automatic Grade: | Automatic |
| Driven Type: | Electric | Voltage: | 3-phase 380V | Power: | 5.5kw |
| Place of Origin: | Shanghai, China | Brand Name: | CUIWANG | Model Number: | TYP-602 2/S |
| Dimension(L*W*H): | 1100mm(L)*920mm(W)*1960mm(H) | Certification: | CE &SGS&ISO | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

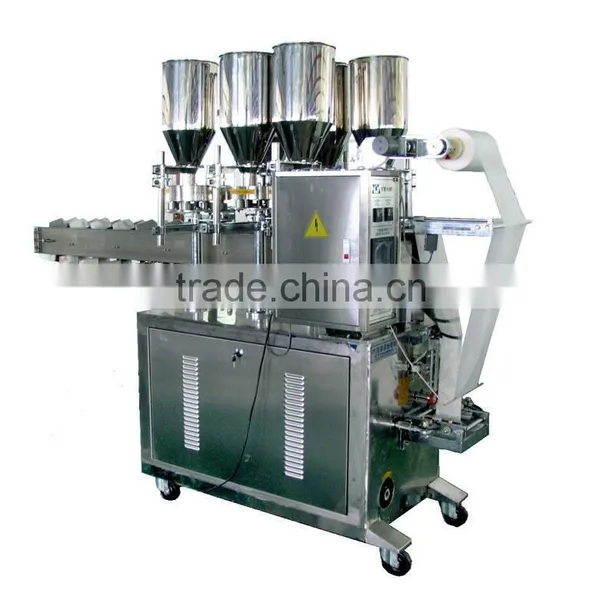

Packaging Machine for sugar
TYP-602·2/S AUTOMATIC GRANULE,POWDER FILLING AND PACKAGING MACHINE
Product Specification:
This model is based on the the heating roll sealing method,specially for granule and powder products.This machine is controlled by the servo motor so that the bag length ranging from 60 to 140mm can be adjusted.For improving the quality of package,the print registration is possible by photocell control device.In addition,the structure of the machine is simple,low price and good quality.
| SPECIFICATIONS: | |
| Filling Product: | Granule & Powder
|
| Pouch Pattern: | 3-side seal & 4-side seal
|
| Pouch Height Range: | 60-140mm
|
| Pouch Width: | 25-100mm
|
| Packaging Capacity: | 3-side seal: 20-90 pouches per minute
4-side seal: 35-100 pouches per minute (depending on pouch height,film composition,product property,etc) |
| Filling Capacity: | 1-30cc. (depending on product property and filling device to be used)
|
| Power Consumption: | 3-phase 380V 5.5kw
|
| Machine Dimensions: | 1100mm(L)×920mm(W)×1960mm(H)
|
| Machine Weight: | Approx.400kg |
| Application: | Especially applicable to packaging of all kinds of powder,granule etc. |
Advantage:
1. Easy to operate, adopt advanced PLC from Germany Siemens, mate with touch screen and electric control system, the man-machine interface is friendly.
3. Safty device: Machine stop at abnormal air pressure, heater disconnection alarm.
4. The width of the bags could be adjusted by electrical motor. Press the control-button could adjust the width of clip, easily operate, and save time.
5. The part where touch to the materials is made of stainlesss steel is accord with the request of GMP.
Auto Package process
Packing Sample:
After Service:
The seller guarantee to solve all problems which may occur due to manufacture’s mistakes or wrong design, a
nd to provide all necessary spare parts and in case if the problem is serious and can’t be solved by buyer, The
seller has to send his technician on the buyer’s account.
