Home > Industrial Equipment & Components > Bearing > Slewing Bearing > Robotic Bearing RU Series

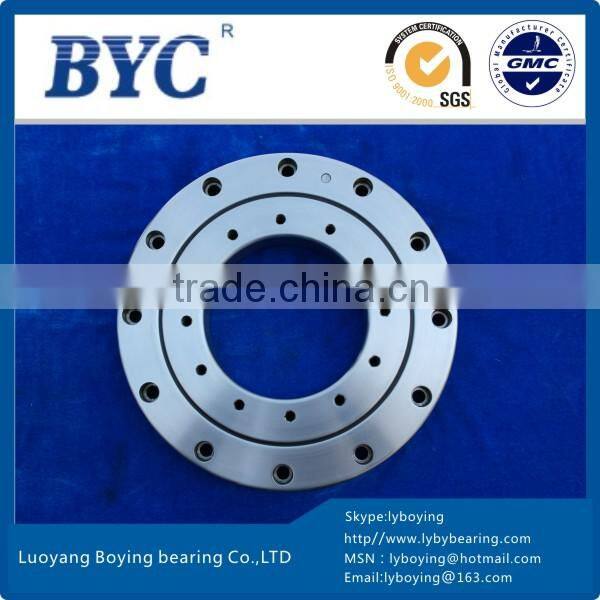

Robotic Bearing RU Series

US$ 300 - 1,500 MOQ: 1 Piece

Key Specifications

Get Latest Price

Brand Name:

BYC

Bore Size:

35, 350

Outside Diameter:

95, 540

Contact Supplier Request Quote Chat Now

Luoyang Boying Bearing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI HongKong Dalian

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name BYC

Bore Size 35, 350

Outside Diameter 95, 540

Model Number RU

Feature Cross Roller

Gear Options Nongeared

Seals Type Two side rubber seals(UU)

Place of Origin Henan, China

Product Description

(Integrated Inner/Outer Ring Type)

RU SERIES:Since the mounting holes are provided,cross roller bearing does not require a presser flange or housing. In addition, because it has an integrated inner/outer ring structure and is equipped with washers, its performance is minimally affected by the mounting procedure, ensuring stable rotation accuracy and torque. This model can be used for both inner-ring rotation and outer-ring rotation.

RU series Cross Roller bearings:
RU66 RU85 RU124G RU148G RU178G RU228 RU297 RU445 RU228X RU297X RU445X RU228G RU297G RU445G

More detials click here: Detailed parameter of RU series crossed roller bearings

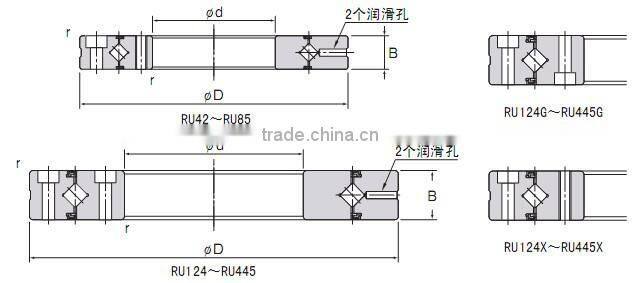

shaft diameter (mm)	Identification number	Main dimensions						Shoulde height		Basic load rating (radial)		weight
		inner ring d (mm)	outer ring D (mm)	Roller pitc circle diameter dp (mm)	width B B1 (mm)	Greasing hole φ	Chamfer r (min)	ds	Dh	C KN	C0 KN	Kg
55	RU85	35	120	85	15	3.1	0.6	79	93	20.3	29.5	1
80	RU124(G)	80	165	124	22	3.1	1	114	134	33.1	50.9	2.6
	RU124X
90	RU148(G)	90	210	147.5	25	3.1	1.5	133	162	49.1	76.8	4.9
	RU148X
115	RU178(G)	115	240	178	28	3.1	1.5	161	195	80.3	135	6.8
	RU178X
160	RU228(G)	160	295	227.5	35	6	2	208	246	104	172	11.4
	RU228X
210	RU297(G)	210	380	297.3	40	6	2.5	272	320	156	281	21.3
	RU297X
350	RU445(G)	350	540	445.4	45	6	2.5	417	473	222	473	35.4
	RU445X

Crossed roller bearings are bearings for precision applications that correspond in their dimensions to ISO dimension series 18 in accordance with DIN 616. They comprise outer rings, inner rings, rolling elements and plastic spacers. Due to the X arrangement of the rolling elements, these bearings can support axial forces from both directions as well as radial forces, tilting moment loads and any combination of loads with a single bearing position.This allows designs with two bearing positions to be reduced to a single bearing position. Crossed roller bearings are very rigid, have high running accuracy and are supplied with normal clearance, little clearance or preload. The bearing outer rings can be easily located in the adjacent construction by means of clamping rings. Since the Crossed Roller bearing achieves high rigidity and the precision can reach up to P4.P2,despite the minimum possible dimensions of the inner and outer rings,it is optimal for applications such as joints and swiveling units of industrial robots, swiveling tables of machining centers, rotary units of manipulators, precision rotary tables, medical equipment, measuring instruments and IC manufacturing machines.

Rotation accuracy:

The spacer retainer fitting among RU series crossed roller bearing cross arrayed rollers prevents rollers from skewing and the rotation torque from increasing due to friction between rollers. Unlike conventional types using steel sheet retainers, the Crossed Roller bearing does not cause displacement or locking of rollers and provides a stable rotation torque. The bearing clearance can be adjusted. In addition, highly accurate rotary motion is ensured through adjusting the bearing clearance to provide a preload.

Our Services

1.Your inquiry to our product & price will be replied within 24 hours.

2.Well-trained & experienced staff are to answer all your inquiries in English of course.

3.OEM & ODM projects are highly welcomed. We have strong R&D team here to help.

4.Your business relationship with us will be confidential to any third party.

5.Good after-sale service offered, please get back if you got question

6.Nowadays, as a professional percision bearing manufacture, we are proud of continual innovation, flexible production, speedy delivery, rapid after-sales service(2 years) and quick response.
