German Crossed Roller Bearing XSU Type for Machine Tools

German Crossed Roller Bearing XSU Type for Machine Tools thumbnail-1
German Crossed Roller Bearing XSU Type for Machine Tools thumbnail-2
German Crossed Roller Bearing XSU Type for Machine Tools thumbnail-3
German Crossed Roller Bearing XSU Type for Machine Tools thumbnail-4
German Crossed Roller Bearing XSU Type for Machine Tools thumbnail-5
German Crossed Roller Bearing XSU Type for Machine Tools thumbnail-6
German Crossed Roller Bearing XSU Type for Machine Tools photo-1
German Crossed Roller Bearing XSU Type for Machine Tools photo-2
German Crossed Roller Bearing XSU Type for Machine Tools photo-3
German Crossed Roller Bearing XSU Type for Machine Tools photo-4
German Crossed Roller Bearing XSU Type for Machine Tools photo-5
German Crossed Roller Bearing XSU Type for Machine Tools photo-6
US$ 1 - 1,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
BYC
Bore Size:
40, 600
Outside Diameter:
50, 800
Contact Supplier Request Quote Chat Now
Luoyang Boying Bearing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI HongKong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name BYC
Bore Size 40, 600
Outside Diameter 50, 800
Model Number XSU
Feature Cross Roller
Gear Options Nongeared
Seals Type Two side rubber seals(UU)
Place of Origin Henan, China



Product Description

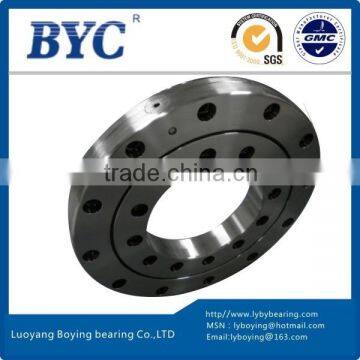

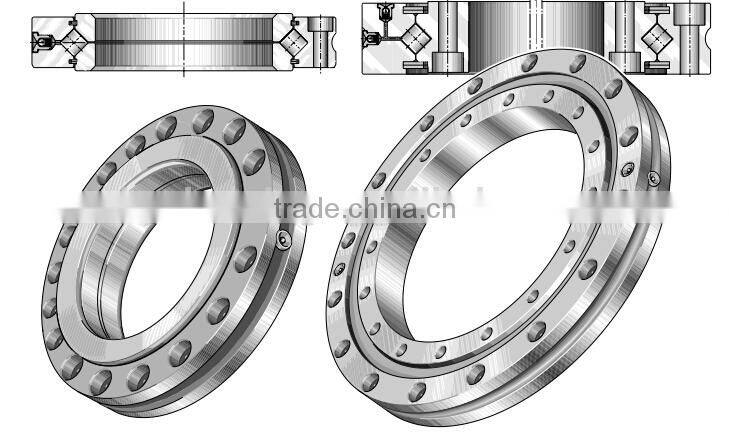

Crossed roller bearing XSU for Machine tool turntable with integrated rings

Crossed roller bearings XU XV XSU series:
XSU080168,XSU080188,XSU080218,XSU080258,XSU080318,XSU080398, XSU140414,XSU140544,XSU140644,
XSU140744,XSU140844,XSU140944

XU050077,XU060094,XU060111,XU080120,XU080149,XU120179,XU120222,XU160260,XU080264,XU160405,XU080430,XU300515

German Crossed roller bearing XSU type for Machine Tools

Model
Number		 Main dimensions

Fixing Hole

(Outer ing)

Fixing Hole

(Inner ing)

Basic load

rating
(Axial)

Basic load

rating
(Radial)

 Weight
Kg
Inner ring
d(mm)		 Outer ring
D(mm)		 Roller pitch
circle
dp(mm)		 Width
B(mm)

Pitch of

 holes
φLa

 Number
na

Pitch of

holes
φLi

 Number
ni		 Ca KN Coa KN Cr KN Cor KN
XU050077 40 112 77 22 97 6-φ6.6 56 6-M8 22.4 29 14.3 14.2 1.4
XU060094 57 140 94 26 120 6-φ9 70 6-M8 32.5 37.5 20.7 18.4 2.4
XU060111 76.2 145.79 111 15.87 133.1 8-φ6.9 88.9 8-φ6.9 36 44.5 22.8 21.5 1.2
XU080120 69 170 120 30 148 6-φ9 90 6-M8 56 53 35.5 26 4
XU080149 101.6 196.85 149.6 22.22 177.8 16-φ6.9 115.8 16-φ6.9 63 66 40 32.5 3.6
XU120179 124.5 234 179 35 214 12-φ11 144.5 12-φ11 118 179 75 88 7
XU120222 140 300 222 36 270 12-M16 170 12-φ18 133 275 85 131 12
XU160260 191 329 260 46 305 20-φ14 215 20-φ14 212 350 135 173 16
XU080264 215.9 311 264 25.4 295.3 12-φ8.7 231.8 12-φ8.7 85 117 54 57 6.9
XU160405 336 474 405 46 450 30-φ14 360 30-φ14 270 550 172 270 25
XU080430 380 480 430 26 462 20-φ9 398 20-M10 110 280 70 138 12
XU300515 384 646 515 86 598 18-φ26 432 18-φ26 720 1370 455 670 115
XSU080168 130 205 168 25.4 240 12 145 12 66 240 42 96 3.3
XSU080188 150 225 188 25.4 275 16 165 16 71 275 46 110 3.7
XSU080218 180 255 218 25.4 315 20 195 20 77 315 49 127 4.3
XSU080258 220 295 258 25.4 375 24 235 24 84 375 54 151 5.1
XSU080318 280 355 318 25.4 465 28 295 28 93 465 59 185 6.3
XSU080398 360 435 398 25.4 590 36 375 36 106 590 68 236 7.8
XSU140414 344 484 414 56 460 24 368 24 229 520 146 250 28
XSU140544 474 614 544 56 590 32 498 32 270 680 170 330 38
XSU140644 574 714 644 56 690 36 598 36 290 800 185 395 44
XSU140744 674 814 744 56 790 40 698 40 315 930 200 455 52
XSU140844 774 914 844 56 890 40 798 40 340 1050 215 510 60
XSU140944 874 1014 944 56 990 44 898 44 360 1170 227 580 67
XSU141094 1024 1164 1094 56 1140 48 1048 48 390 1360 246 670 77



German Crossed roller bearing XSU type for Machine Tools





German Crossed roller bearing XSU type for Machine ToolsGerman Crossed roller bearing XSU type for Machine Tools

BYC Boying Bearings can produce percision Crossed roller bearings and YRT rotary table bearings as THK/INA/IKO quality,which percision grade reach to P4/P2.

Crossed roller bearings RB series:
RB4010UUCC0 RB4510UUCC0 RB5013UUCC0 RB6013UUCC0 RB7013UUCC0 RB8016UUCC0 RB9016UUCC0 RB10016UUCC0 RB10020UUCC0 RB11012UUCC0 RB11015UUCC0 RB11020UUCC0 RB12016UUCC0 RB12025UUCC0 RB13015UUCC0 RB13025UUCC0 RB14016UUCC0 RB14025UUCC0 RB15013UUCC0 RB15025UUCC0 RB15030UUCC0 RB16025UUCC0 RB17020UUCC0 RB18025UUCC0 RB19025UUCC0 RB20025UUCC0 RB20030UUCC0 RB20035UUCC0 RB22025UUCC0 RB24025UUCC0 RB25025UUCC0 RB25030UUCC0 RB25040UUCC0 RB30025UUCC0 RB30035UUCC0 RB30040UUCC0 RB35020UUCC0 RB40035UUCC0 RB40040UUCC0 RB45025UUCC0 RB50025UUCC0 RB50040UUCC0 RB50050UUCC0 RB60040UUCC0 RB70045UUCC0 RB80070UUCC0 RB90070UUCC0 RB1000110UUCC0 RB1250110UUCC0


Crossed roller bearings SX series:
SX011814,SX011818,SX011820,SX011824,SX011828,SX011832,SX011836,SX011840,SX011848,SX011860,SX011868
,SX011860,SX0118/500


Crossed roller bearings XU XV XSU series:
XSU080168,XSU080188,XSU080218,XSU080258,XSU080318,XSU080398, XSU140414,XSU140544,XSU140644,
XSU140744,XSU140844,XSU140944

XU050077,XU060094,XU060111,XU080120,XU080149,XU120179,XU120222,XU160260,XU080264,XU160405,XU080430,XU300515

XV30,XV40,XV50,XV60,XV70,XV80,XV90,XV100,XV110

XSA140414N,XSA140544N,XSA140644N,XSA140744N,XSA140844N,XSA140944N,XSA141094N,
XSI140414N,XSI140544N,XSI140644N,XSI140744N,XSI140844N,XSI140944N,XSI141094N


Crossed roller bearings RA series:
RA5008,RA6008,RA7008,RA8008,RA9008,RA10008,RA11008,RA12008,RA13008,RA14008,RA15008,RA16013,RA17013,RA18013,RA19013,RA20013

Crossed roller bearings RE series:
RE4010UUCC0 RE4510UUCC0 RE5013UUCC0 RE6013UUCC0 RE7013UUCC0 RE8016UUCC0 RE9016UUCC0 RE10016UUCC0 RE10020UUCC0 RE11012UUCC0 RE11015UUCC0 RE11020UUCC0 RE12016UUCC0 RE12025UUCC0 RE13015UUCC0 RE13025UUCC0 RE14016UUCC0 RE14025UUCC0 RE15013UUCC0 RE15025UUCC0 RE15030UUCC0 RE16025UUCC0 RE17020UUCC0 RE18025UUCC0 RE19025UUCC0 RE20025UUCC0 RE20030UUCC0 RE20035UUCC0 RE22025UUCC0 RE24025UUCC0 RE25025UUCC0 RE25030UUCC0 RE25040UUCC0 RE30025UUCC0 RE30035UUCC0 RE30040UUCC0 RE35020UUCC0 RE35025UUCC0 RE40035UUCC0 RE40040UUCC0 RE45025UUCC0 RE50025UUCC0 RE50040UUCC0 RE50050UUCC0 RE60040UUCC0



Crossed roller bearings RU series:
CRBF108,CRBF2012(RU42),CRBF2512,RU66(CRBF3515),RU85(CRBF5515),RU124G(CRBF8022),RU148G,RU178G,RU228,RU297,RU445,RU228X,RU297X,RU445X,RU228G,RU297G,RU445G



Crossed roller bearings CRBH series:
CRBH10020A,CRBH11020A,CRBH12025A,CRBH13025A,CRBH14025A,CRBH15025A,CRBH20025A,CRBH25025A



Cross Tapered Roller Bearings XR series:
XR496051,XR678052(PSL912-309A),XR766051(PSL912-308A),XR820060(PSL912-304A),XR855053(PSL912-305A),XR882055(PSL912-306A),XR889058(PSL912-307A),XR897051,JXR637050,JXR652050,JXR699050 ,616093A,615661A,300XRN50,615894A,0457XRN060, XD.10.0457P5 ,615662A,580XRN76, XD.10.0580P5 ,615659A,0685XRN091, XD.10.0686P5 ,615895A, 0901XRN112, XD.10.0902P5 , BFKB353282/HA4, 1028XRN132 , XD.10.1029P5 ,615898A, XD.10.1549P5


Rotary Table Bearings:
YRT series
YRT50,YRT80,YRT100,YRT120,YRT150,YRT180,YRT200,YRT260,YRT325,YRT395,YRT460,YRT580,YRT650,YRT850,
YRT950,YRT1030,YRT1200
YRTS series
YRTS200,YRTS260,YRTS325,YRTS395,YRTS460,YRTS580
YRTM series
YRTM150,YRTM180,YRTM200,YRTM260,YRTM325,YRTM395,YRTM460,YRTM580
ZKLDF series
ZKLDF100,ZKLDF120,ZKLDF150,ZKLDF180,ZKLDF200,ZKLDF260,ZKLDF325,ZKLDF395,ZKLDF460,ZKLDF580


Packaging & Shipping

1. Industrial Neutral Packing

2. Package as your requirements.

3. Small size Bearings:Plastic vacuum packaging bag+Paper Box/Neutral Carton

4.Large size Bearings:Plastic film+pergamyn paper+Roll tape+Wooden Box

5.Shipping:By air or By sea:DHL/TNT/UPS/EMS etc

Our Services

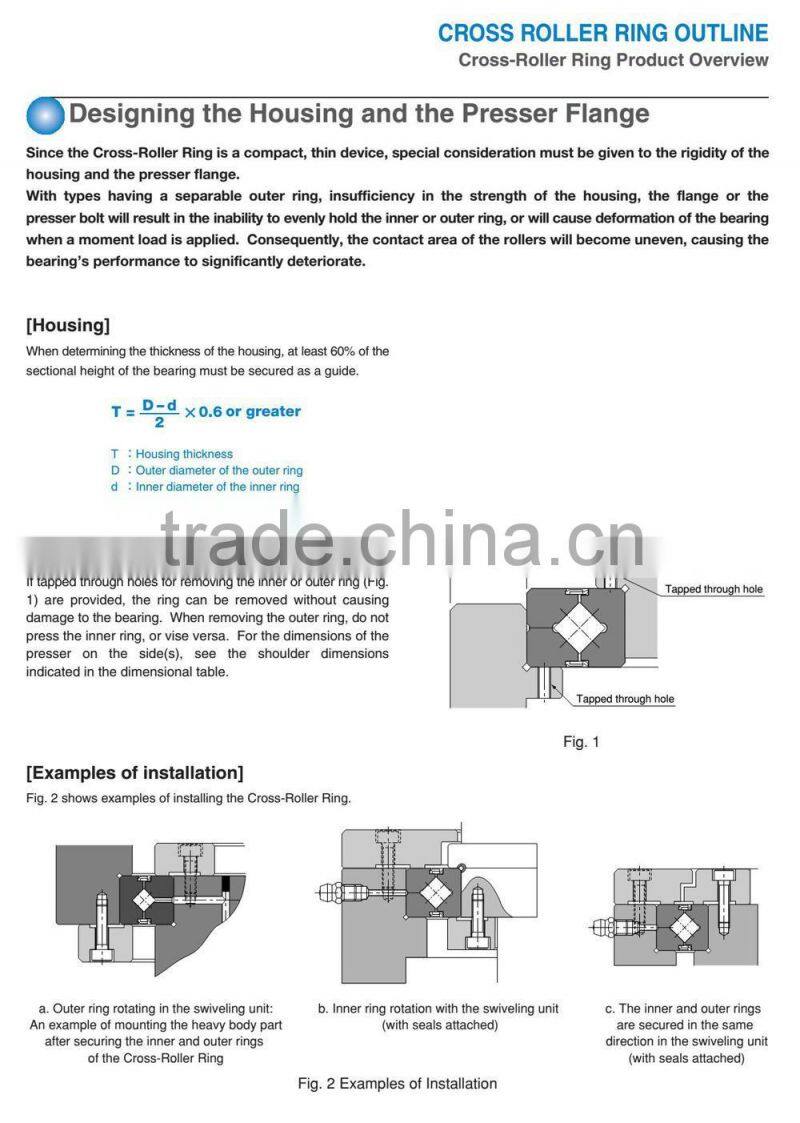

Example of installation:

1.Thoroughly clean the housing and other parts to be installed, and check to determine if deburring is required.

2.Since the Crossed Roller bearing is a tiny section bearing type and therefore tends to misalign when it is installed, in case of this situation,gradually drive the product into the housing or onto the shaft by gently hitting it with a plastic hammer, while keeping the product horizontal. Taking care, continue to hammer until it fully contacts the reference surface.

3.Place the presser flange onto the Crossed Roller bearing . Rock the flange several times to match the bolt holes.

4.Insert the presser bolts into the holes.  Manually turn the bolts and make sure they do not display skewing caused by misalignment of the holes.

5. As is shown in the pictures below:Tighten the presser bolts in three to four steps from light to full tightening byrepeatedly securing the bolts in diagonal order.When tightening the separable inner or outer ring, slightly turning the integral outer or inner ring will correct the dislocation between the ring and the body.

German Crossed roller bearing XSU type for Machine Tools



1.Your inquiry to our product & price will be replied within 24 hours.

2.Well-trained & experienced staff are to answer all your inquiries in English of course.

3.OEM & ODM projects are highly welcomed. We have strong R&D team here to help.

4.Your business relationship with us will be confidential to any third party.

5.Good after-sale service offered, please get back if you got question

6.Nowadays, as a professional percision bearing manufacture, we are proud of continual innovation, flexible production, speedy delivery, rapid after-sales service(2 years) and quick response.


Company Information

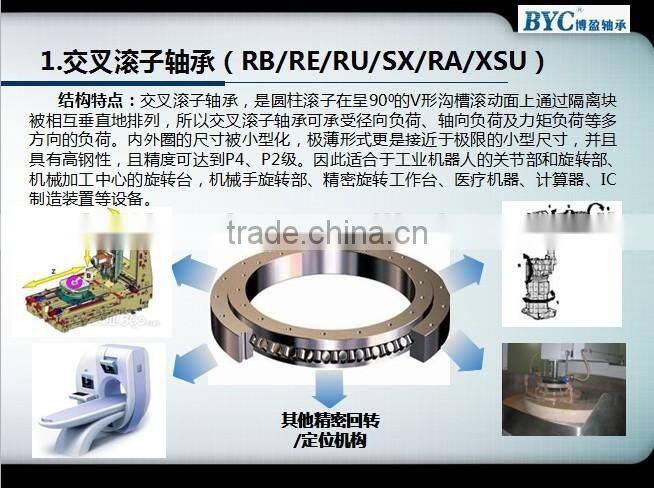

       Luoyang BoYing Bearing Co., Ltd,(BYC)is a professional manufacturer of high precision bearings, The main products of our company are crossed roller bearings, YRT rotary table bearings, crossed tapered roller bearings,cylindrical thrust roller bearing. The leading products include crossed roller bearing RB, RE, RU,RA,CRBC, CRBH, XSU, SX series, rotary table bearings YRT, YRTS,YRTM,ZKLDF series, crossed tapered roller bearing JXR, XR series, almost whole range of precision bearings. The accuracy grades are P5, P4, P2, and the size of inner ring are ranging from Φ50mm --- Φ1300mm. Our products are optimal for applications such as joints and swiveling units of industrial robots, swiveling tables of machining centers, precision rotary tables, medical equipment, measuring instruments and IC manufacturing machines,mainly to replace the imported bearings. Also, we can design,choose and manufacture  non-standard,large size precision bearings as customer requested.
