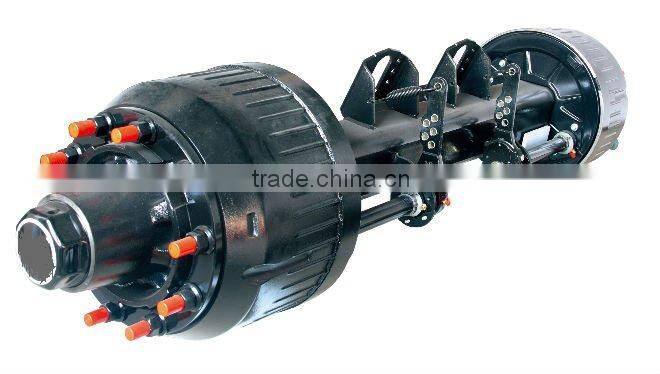

Zhengyang Factory 12 Years Of Production Experience 13t American Style Axle For Trailer

Zhengyang Factory 12 Years Of Production Experience 13t American Style Axle For Trailer thumbnail-1
Zhengyang Factory 12 Years Of Production Experience 13t American Style Axle For Trailer thumbnail-2
Zhengyang Factory 12 Years Of Production Experience 13t American Style Axle For Trailer thumbnail-3
Zhengyang Factory 12 Years Of Production Experience 13t American Style Axle For Trailer photo-1
Zhengyang Factory 12 Years Of Production Experience 13t American Style Axle For Trailer photo-2
Zhengyang Factory 12 Years Of Production Experience 13t American Style Axle For Trailer photo-3
US$ 450 - 650 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Parts:
Trailer Axles
OEM No.:
ZY-A1026
Max Payload:
20T
Contact Supplier Request Quote Chat Now
Shandong Zhengyang Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Parts Trailer Axles
OEM No. ZY-A1026
Max Payload 20T
Size 1840mm
Place of Origin Shandong, China
Brand Name ZY
Model Number ZY-A

Detail specifications of agriculture axle as follow



Detail specifications  of Geman Axle Series as follow

Zhengyang Factory 12 Years Of Production Experience 13t American Style Axle For Trailer

Model No.

Capacity

(T)

Brake

(MM)

centre distance of brake chamberL4

Axle Tube(mm)

centre distance of spring seat L3

Track L2(mm)

Bearing
inner/outer

Total Length L1(mm)

Weight

(KG)

Recommended Wheel

ZY-A1060

12

420*200

420

150*150

≥980

1840

33118/33213

≈2158

390

7.50V-20

ZY-A1061

14

420*200

430

150*150

≥900

1840

32219/33215

≈2172

420

8.5V-20

ZY-A1062

16

420*200

280

150*150

≥900

1840

32222/32314

≈2245

550

8.5V-20





 Detail specifications of American Axle Series as follow

Description

ModelNo.

Capacity

(T)

Brake

(mm)

centre distance of brake chamberL4

Axle Tube

(mm)

centre distance of spring seat L3

Bearing

outer /inner

Total Length L1(mm)

Weight

(KG)

Recommended Wheel

Inboard Drum Axle

ZY-A1045

13

420*180

390

150*150/Φ127

≥930

518445/

518445

≈2192

370

7.50V-20

Inboard Drum Axle

ZY-A1046

14

420*220

350

150*150

≥930

518445/

518445

≈2185

370

7.5V-20

Inboard Drum Axle

ZY-A1047

16

420*220

354

150*150

≥940

518445/

220149

≈2200

420

8.00V-20

Inboard Drum Axle

ZY-A1048

20

420*220

354

150*150

≥940

518445/

32222

≈2256

460

8.50V-20

Inboard Drum Axle

ZY-A1049

25

420*220

354

150*150

≥940

30222/

32222

≈2270

490

8.5V-20



Advantage Of The Products As Follow



1) Nation standard ,

2) Good braking quality,

3) High-intensity,

4) Big rigidity,

5) Long life  and strong bearing capacity,

6) Passed the national authoritative department's monitor.

7) ISO9001:2000 and TS16949 certified.

8) Gained old customer's trust .



 Characteristics Of The Products As Follow



1).Special heat-treat, low-alloy steel axle beam, it has the virtues of good synthetic performance,

strong load ability and lower self weight.

2).High quality alloy solid inserted spindle, through wholly heat treatment, provide superior fatigue

capability.

3).High performance premium non-asbestos brake linings, extend service life.

4).Easy for ABS installation.

5).Camshaft, matching with special seals, can ensure no entry of the grease into the brake drum,

more safety.

6).New tight fit hub capO rings, high property for sealinG

7).Grease lubricant is supplied by Mobil that lengthens the time of free maintenance.

8).Full range of stud fixing such as ISO, BSF and JAP, it can meet the requirements of various

wheel rims.

Axle Parts Of The Product Show As Follow

  Zhengyang Factory 12 Years Of Production Experience 13t American Style Axle For Trailer

Zhengyang Factory 12 Years Of Production Experience 13t American Style Axle For Trailer

Zhengyang Factory 12 Years Of Production Experience 13t American Style Axle For Trailer

  Zhengyang Factory 12 Years Of Production Experience 13t American Style Axle For Trailer

Zhengyang Factory 12 Years Of Production Experience 13t American Style Axle For Trailer


We also can supply this products as follow



1. High Quality German / American style suspension



Zhengyang Factory 12 Years Of Production Experience 13t American Style Axle For Trailer



2.High quality Air tank



Zhengyang Factory 12 Years Of Production Experience 13t American Style Axle For Trailer



3.High quality Fifth wheels



Zhengyang Factory 12 Years Of Production Experience 13t American Style Axle For Trailer



4.High quality king pin



Zhengyang Factory 12 Years Of Production Experience 13t American Style Axle For Trailer



5.High quality Brake chamber



Zhengyang Factory 12 Years Of Production Experience 13t American Style Axle For Trailer



6.High quality Landing gear



Zhengyang Factory 12 Years Of Production Experience 13t American Style Axle For Trailer


Contact
My dear friend ,if you have any questions ,you can free contact with me at any time .
Then you will find that you had made a right choice at here and I won't let you down
