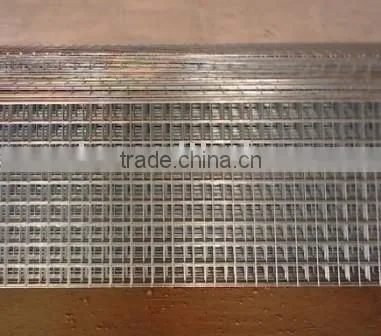

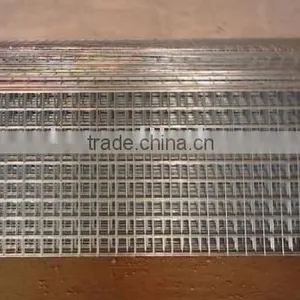

Galvanized Welded Wire Mesh

US$ 10 - 60 MOQ: 300 Packs

Key Specifications

Place of Origin:

Hebei, China

Material:

Stainless Steel Wire

Type:

Welded Mesh

Shenzhou City Fuyang Wire Mesh Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hebei, China

Material Stainless Steel Wire

Type Welded Mesh

Application Protecting Mesh

Weave Style Plain Weave

Technique Welded Mesh

Brand Name FY

Specifications

Welded wire mesh
Low carbon steel wire, stainless steel wire
Hot dipped galvanizing
Electric galvanizing

Raw material:

Raw material: low carbon steel and stainless steel wires

Surface Treatment:

Welded after hot dipped galvanized

Welded after electro galvanized

Welded before electro galvanized

Welded before hot dipped galvanized

Welded by stainless steel wire

PVC coated welded wire mesh

Specification List of Welded Wire Mesh
Opening		Wire Diameter<BWG>
In inch	In metric unit(mm)	Wire Diameter<BWG>
1/4" x 1/4"	6.4mm x 6.4mm	22,23,24
3/8" x 3/8"	10.6mm x 10.6mm	19,20,21,22
1/2" x 1/2"	12.7mm x 12.7mm	16,17,18,19,20,21,22,23
5/8" x 5/8"	16mm x 16mm	18,19,20,21,
3/4" x 3/4"	19.1mm x 19.1mm	16,17,18,19,20,21
1" x 1/2"	25.4mm x 12.7mm	16,17,18,19,20,21
1-1/2" x 1-1/2"	38mm x 38mm	14,15,16,17,18,19
1" x 2"	25.4mm x 50.8mm	14,15,16
2" x 2"	50.8mm x 50.8mm	12,13,14,15,16
Technical Note: 1,Standard roll length: 30m;width: 0.5m to 1.8m 2,Special sizes available at request 3,Packing: in waterproof paper in rolls. Custom packing available at request.

Galvanized Welded Wire Mesh
Opening		Wire Diameter<BWG>
In inch	In metric unit(mm)	Wire Diameter<BWG>
2" x 3"	50mm x 75mm	2.0mm,2.5mm,1.65mm
3" x 3"	75mm x 756mm	2.67mm,2.41mm,2.11mm,1.83mm,1.65mm
2" x 4"	50mm x 100mm	2.11mm,2.5mm
4" x 4"	100mm x 100mm	2.0mm,2.5mm
Technical Note: 1,Standard roll length: 30m;width: 0.5m to 1.8m 2,Special sizes available at request 3,Packing: in waterproof paper in rolls. Custom packing available at request.

PVC Coated Welded Mesh:
Opening		Wire Diameter<BWG>
In inch	In metric unit(mm)	Wire Diameter<BWG>
1/2" x 1/2"	12.7mm x 12.7mm	16,17,18,19,20,21
3/4" x 3/4"	19mm x 19mm	16,17,18,19,20,21
1" x 1"	25.4mm x 25.4mm	15,16,17,18,19,20
Technical Note: 1.Standard roll length: 30m;width: 0.5m to 1.2m 2.Special sizes available at request 3.Packing: in waterproof paper in rolls. Custom packing available at request.
