Help CenterNRXT25025 Crossed Roller Bearings (250x310x25mm) BYC Boying Bearing High Precision Slewing Ring Bearing
Related Products
-
NRXT25030 Crossed Roller Bearings (250x330x30mm) BYC Boying Bearing High Precision Slewing Ring BearingUS$ 100 - 1,000MOQ: 1 Piece -
NRXT30025 Crossed Roller Bearings (300x360x25mm) BYC Boying Bearing High Precision High Pressure BearingUS$ 100 - 1,000MOQ: 1 Piece
-
NRXT30035 Crossed Roller Bearings (300x395x35mm) BYC Band High Precision Rolling BearingUS$ 100 - 1,000MOQ: 1 Piece
-
NRXT30040 Crossed Roller Bearings (300x405x40mm) BYC Band Thin Section Rolling BearingUS$ 100 - 1,000MOQ: 1 Piece
-
NRXT40035 Crossed Roller Bearings (400x480x35mm) BYC Band Thin Section Rolling BearingUS$ 100 - 1,000MOQ: 1 Piece
Specifications
NRXT25025 Thin section Crossed roller bearing is in stock now,These bearings are slim bearings having a small outside diameter

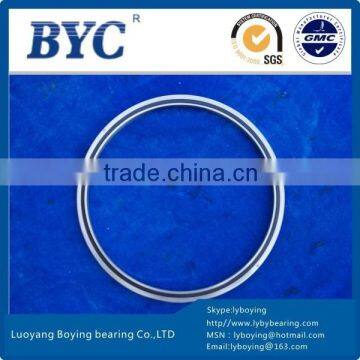

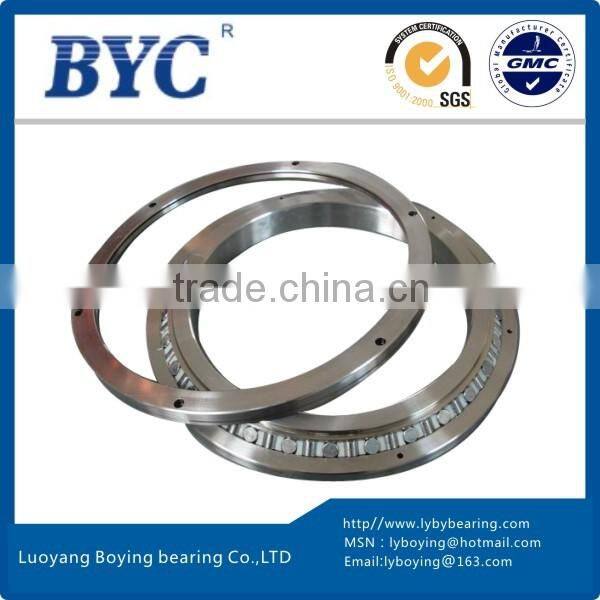

NRXT25025 Crossed Roller Bearings (250x310x25mm) BYC Boying Bearing High precision slewing ring bearing
A . Crossed Roller Bearings Parameters
Brand- BYC
Model number- NRXT25025
Inner ring(mm)- 250
Outer ring(mm)- 310
Width(mm)- 25
Weight(Kg)- 5
Materials- GCR15/GCR15SiMn
Precision grade- P5/P4/P2
Lubrication type- Grease lubrication
Rotating part- Inner Ring Rotation
Load direction- Multi-load
Structure- Separable Outer Ring
B . NRXT25025 Crossed Roller Bearings Specification Sheet
| Model Number |
Main dimensions | Mounting dimensions | Basic load rating (radial) |
weight | |||||||
| Inner ring d (mm) |
Outer ring D(mm) |
Roller pitch circle dp(mm) |
Width B(mm) |
Greasing hole φ |
Chamfer r(min) |
ds | Dh | C kN | C0 kN | Kg | |
| NRXT25025 | 250 | 310 | 277.5 | 25 | 2 | 3 | 265 | 290 | 69.3 | 150 | 5 |
C . NRXT type Crossed Roller Bearings Details
Product Features
BYC Crossed roller bearings are lightweight, compact bearings with thinnest possible inner and outer rings with high rigidity, because of its vertical arrangement of cylindrical rollers with a 90°V groove through the separate spacers in the deep groove rolling surface. This special design allows just one bearing to carry loads in all directions including radial, axial and moment loads.
Series Introduction
NRXT series is a bearing with thinnest possible inner and outer rings because the outer ring is split while the inner ring is integrated into the main body. It is being used in cases where a high rotational accuracy of the inner ring is required.
Series Model No.
NRXT2508DD NRXT4010DD NRXT5013DD NRXT6013DD NRXT7013DD NRXT8013DD NRXT8016DD NRXT9016DD NRXT9020DD NRXT10020DD NRXT11020DD NRXT12020DD NRXT12025DD NRXT13025DD NRXT14025DD NRXT15025DD NRXT15030DD NRXT20030DD NRXT25025DD NRXT25030DD NRXT30025DD NRXT30035DD NRXT30040DD NRXT40035DD NRXT40040DD NRXT50040DD NRXT50050DD NRTX60040DD
NRXT2508E NRXT4010E NRXT5013E NRXT6013E NRXT7013E NRXT8013E NRXT8016E NRXT9016E NRXT9020E NRXT10020E NRXT11020E NRXT12020E NRXT12025E NRXT13025E NRXT14025E NRXT15025E NRXT15030E NRXT20025E NRXT20030E NRXT25025E NRXT25030E NRXT30025E NRXT30035E NRXT30040E NRXT40035E NRXT40040E NRXT50040E NRXT50050E NRXT60040E
Product Application
•Industrial Robotic arm,Reducer drive
•precision Turntable,NC rotary table
•Rotation part of Machine tools
•Inspection instrument,Medical equipment
• Aviation equipment,Military radar etc
D . NRXT type Crossed Roller Bearings Installation & Cautions

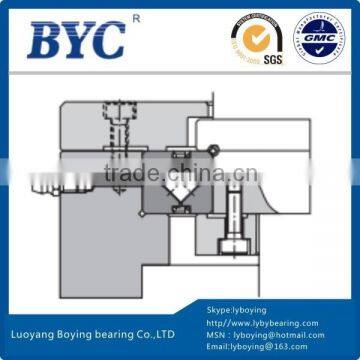

Example of installation for Crossed Roller Bearings:
1.Inspect the parts before installing:Clean bearing bracket,main axle or other parts to remove dirt or grease.
2.Place the bearing into the bearing bracket and main axle:To match the design clearance ,keep the bearing horizontal and insert the bearing into the bearing bracket or axle.If it is hard to install,use a rubber hammer to slightly hit every part of the bearing,so that the bearing can be attention to the hitting force is too large.Afterwards,the matching status of bearing and basic face can be examined by checking the noise.For a interference fit,use heating or cooling to expand or shrink the parts for ease of installation. Be sure the bearing temperature does not exceed 80℃ . If the split inner or outer ring is acentric, please loosen the blots slightly and rotate the monolithic ring to adjust the concentricity of split ring, so that the bearing can be fit in the bracket.
3.Install the mounting disc:Place the mounting disc onto the bearing and align the screw holes, Screw all the bolts in the holes first and follow the orders show in below diagram when tightening bolts in diagonally opposite sequence,Do not tighten bolts randomly.
Cautions:
1.The normal operating temperature of Crossed roller bearing is 10-80℃, If it is over this range,please contact BYC.
2.If a foreign substance enters inside the bearing structure, the rotation route of the roller may be damage, or the bearing may fail.Please clean the bearing by refill the lubricant grease.
3.Please do not remove or apply force to the bolt and nut of the split bearing.
Luoyang BoYing Bearing Co., Ltd, (BYC) is a professional manufacturer of high precision bearings,The main products are Crossed roller bearings , YRT Rotary Table Bearings , Crossed Tapered Roller Bearings , Cylindrical Thrust Roller Bearing , Angular Contact Ball Bearings , Thin Section Bearings,Slewing Bearings , Ball Screw Bearings . The accuracy grades are P5, P4, P2, and the size of inner ring are ranging from Φ50mm --- Φ1300mm. Our products are optimal for Robotics, Machine Tools, Rotary Table, medical equipment, measuring instruments ,mainly to replace the imported bearings. Also, we can design,choose and manufacture non-standard precision bearings as customer requested.
1.Your inquiry to our product & price will be replied within 24 hours.
2.Well-trained & experienced staff are to answer all your inquiries in English of course.
3.OEM & ODM projects are highly welcomed. We have strong R&D team here to help.
4.Your business relationship with us will be confidential to any third party.
5.Good after-sale service offered, please get back if you got question
6.Nowadays, as a professional precision bearing manufacture, we are proud of continual innovation, flexible production, speedy delivery, rapid after-sales service(2 years) and quick response.
1. Industrial Neutral Packing,Package as your requirements.
2. Small size Bearings:Plastic vacuum packaging bag+Paper Box/Neutral Carton
3.Large size Bearings:Plastic film+Brown paper+Roll tape+Wooden Box
4.Shipping:By air or By sea:DHL/TNT/UPS/EMS etc
Tel: +86-379-62275175
SKYPE: lyboying
Email: lyboying@
Aliexpress: /store/1332007
http://bycbearing.en.china.cn
MP: +86-15515365379
