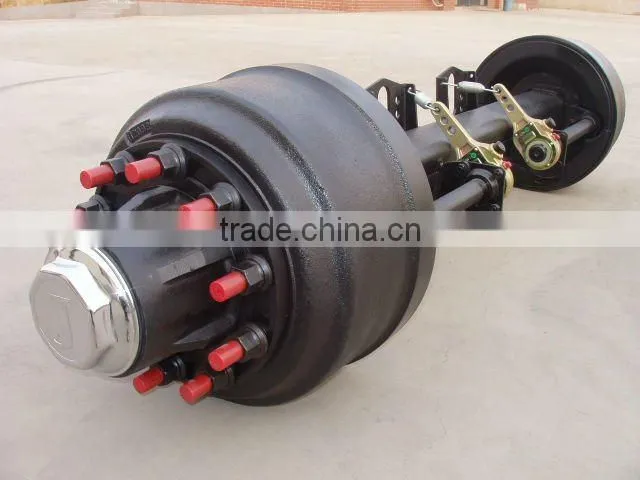

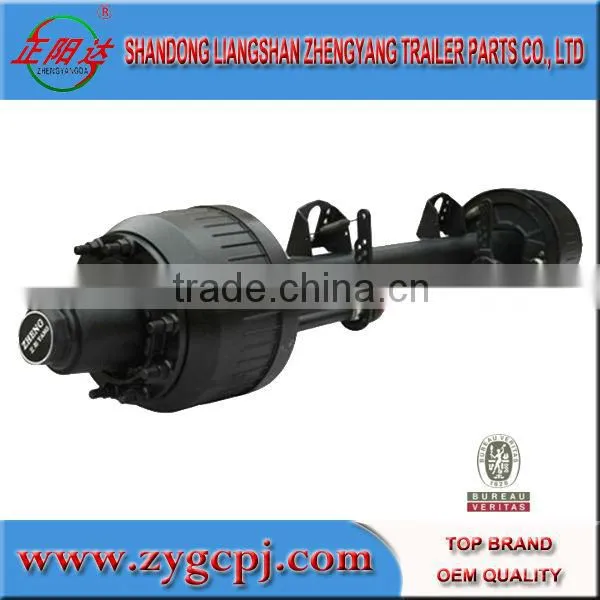

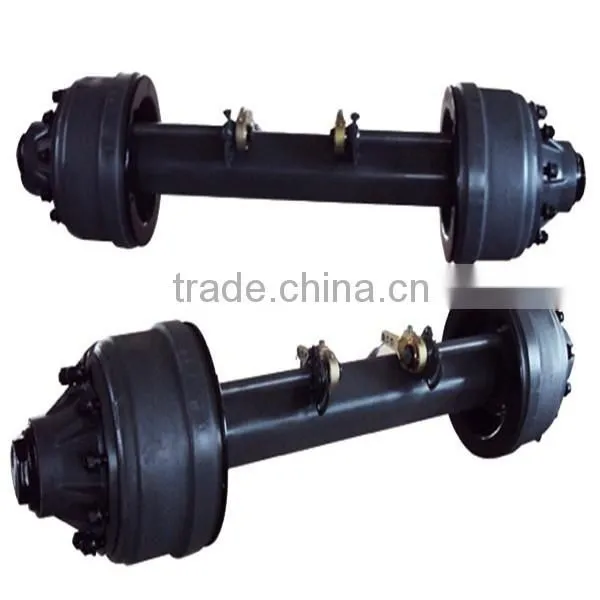

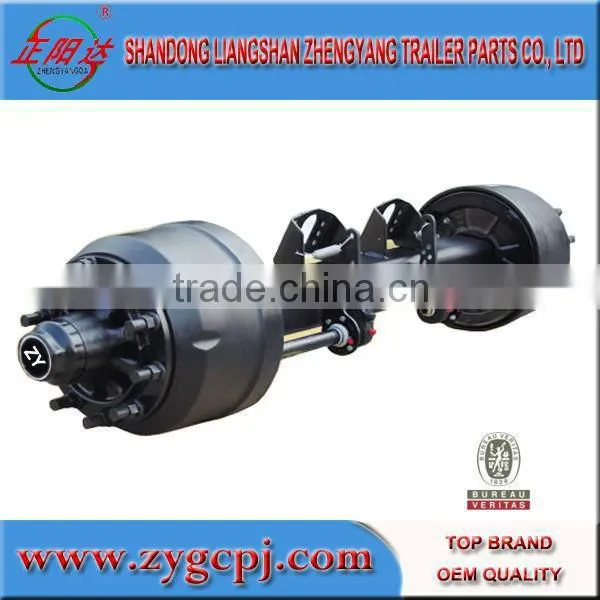

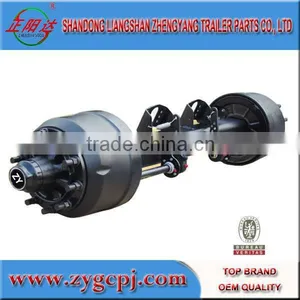

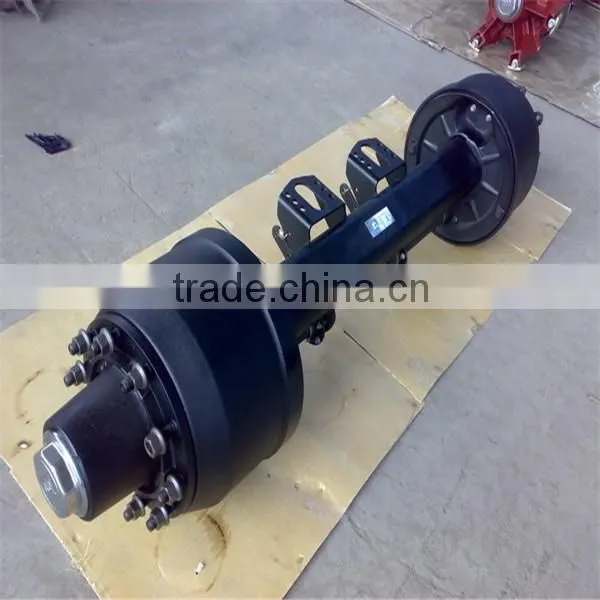

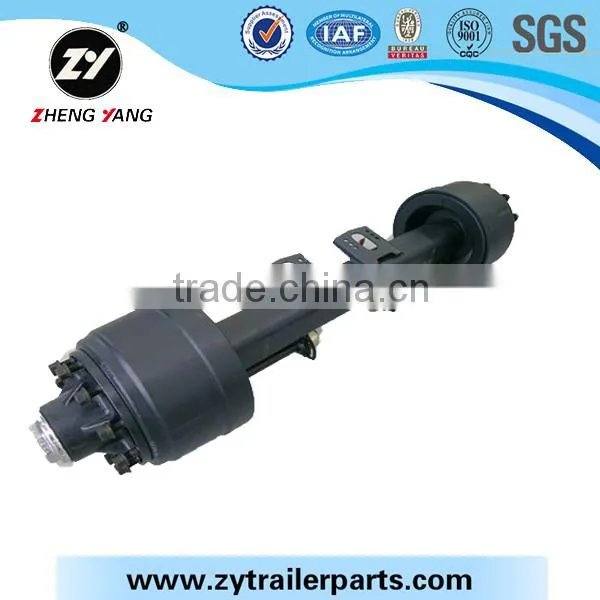

fuwa standard trailer axle for heavy drmper truck trailer--specification
Model No. |
Capacity (T) |
Brake (MM) |
centre distance of brake chamberL4 |
Axle Tube(mm) |
centre distance of spring seat L3 |
Track L2(mm) |
Bearing |
Total Length L1(mm) |
Weight (KG) |
Recommended Wheel |
ZY-A1060 |
12 |
420*200 |
420 |
150*150 |
≥980 |
1840 |
33118/33213 |
≈2158 |
390 |
7.50V-20 |
ZY-A1061 |
14 |
420*200 |
430 |
150*150 |
≥900 |
1840 |
32219/33215 |
≈2172 |
420 |
8.5V-20 |
ZY-A1062 |
16 |
420*200 |
280 |
150*150 |
≥900 |
1840 |
32222/32314 |
≈2245 |
550 |
8.5V-20 |
Description |
ModelNo. |
Capacity (T) |
Brake (mm) |
centre distance of brake chamberL4 |
Axle Tube (mm) |
centre distance of spring seat L3 |
Bearing outer /inner |
Total Length L1(mm) |
Weight (KG) |
Recommended Wheel |
Inboard Drum Axle |
ZY-A1045 |
13 |
420*180 |
390 |
150*150/Φ127 |
≥930 |
518445/ 518445 |
≈2192 |
370 |
7.50V-20 |
Inboard Drum Axle |
ZY-A1046 |
14 |
420*220 |
350 |
150*150 |
≥930 |
518445/ 518445 |
≈2185 |
370 |
7.5V-20 |
Inboard Drum Axle |
ZY-A1047 |
16 |
420*220 |
354 |
150*150 |
≥940 |
518445/ 220149 |
≈2200 |
420 |
8.00V-20 |
Inboard Drum Axle |
ZY-A1048 |
20 |
420*220 |
354 |
150*150 |
≥940 |
518445/ 32222 |
≈2256 |
460 |
8.50V-20 |
Inboard Drum Axle |
ZY-A1049 |
25 |
420*220 |
354 |
150*150 |
≥940 |
30222/ 32222 |
≈2270 |
490 |
8.5V-20 |
Advantage Of The Products As Follow:
1) Nation standard ,
2) Good braking quality,
3) High-intensity,
4) Big rigidity,
5) Long life and strong bearing capacity,
6) Passed the national authoritative department's monitor.
7) ISO9001:2000 and TS16949 certified.
8) Gained old customer's trust .
Characteristics Of The Products As Follow:
1).Special heat-treat, low-alloy steel axle beam, it has the virtues of good synthetic performance,
strong load ability and lower self weight.
2).High quality alloy solid inserted spindle, through wholly heat treatment, provide superior fatigue capability.
3).High performance premium non-asbestos brake linings, extend service life.
4).Easy for ABS installation.
5).Camshaft, matching with special seals, can ensure no entry of the grease into the brake drum, more safety.
6).New tight fit hub capO rings, high property for sealinG
7).Grease lubricant is supplied by Mobil that lengthens the time of free maintenance.
8).Full range of stud fixing such as ISO, BSF and JAP, it can meet the requirements of various wheel rims.
We are a professional factory,trailer axle ,suspension,air tank,brake chamber,brake system,landing gear,twist lock and so on.

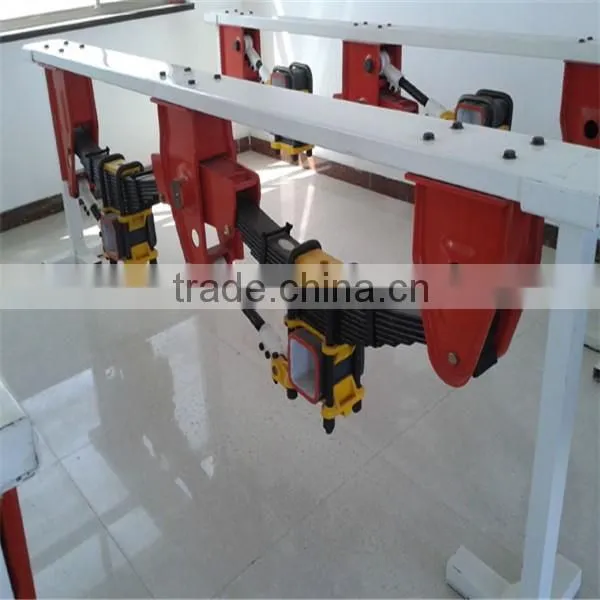

1.High Quality German / American style suspension

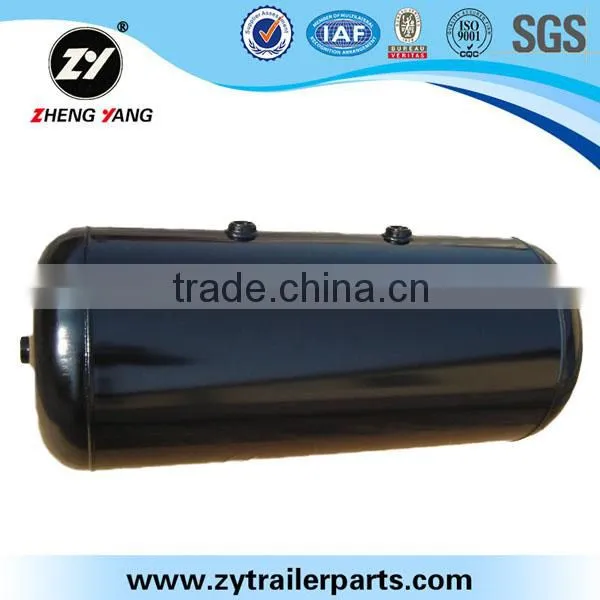

2.High quality Air tank

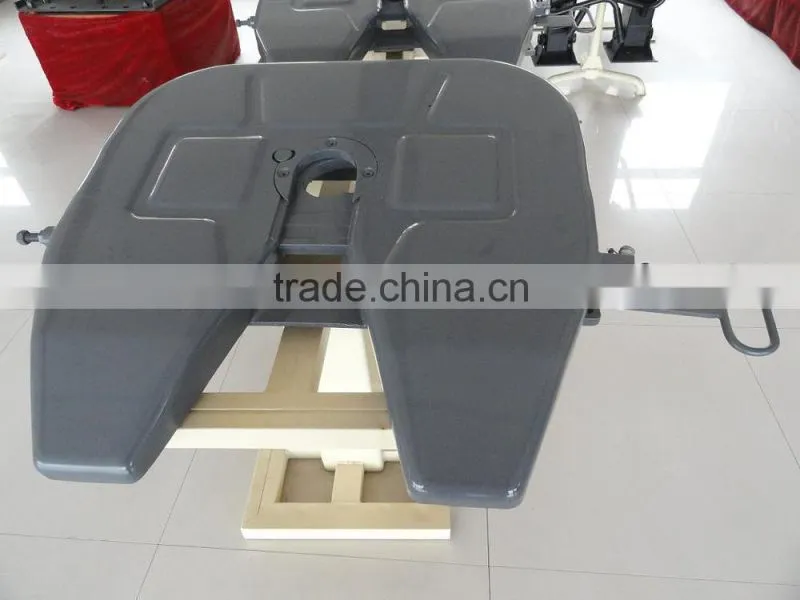

3.High quality Fifth wheels

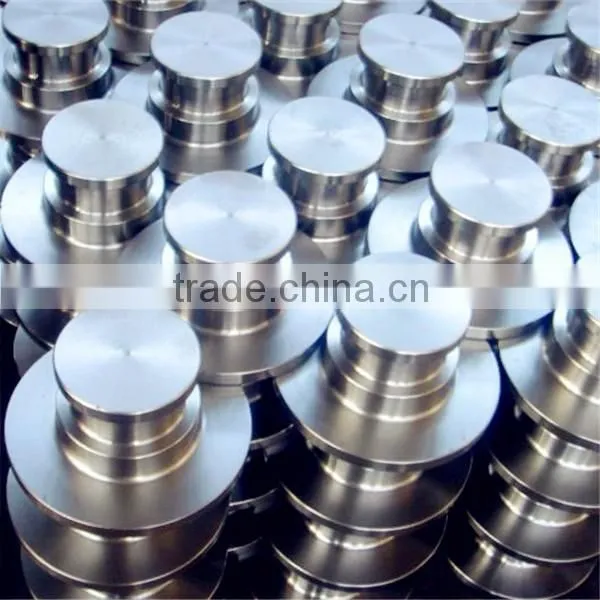

4.High quality king pin

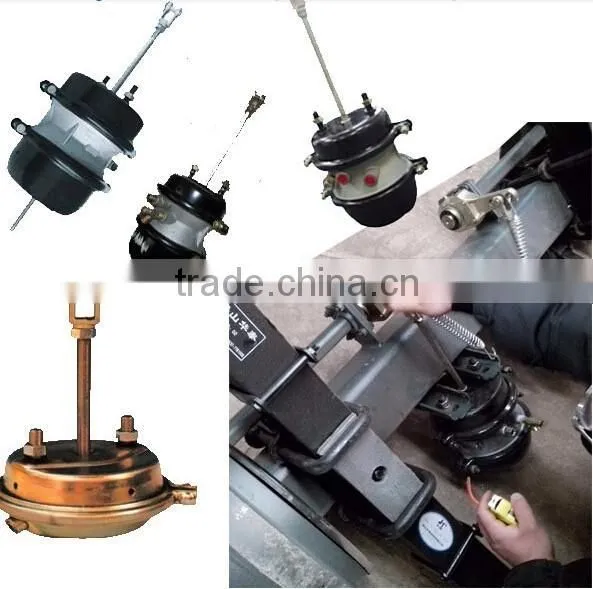

5.High quality Brake chamber

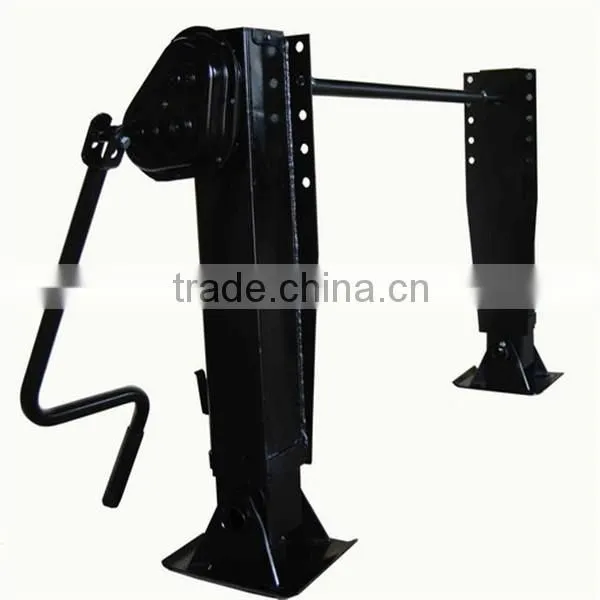

6.High quality Landing gear
