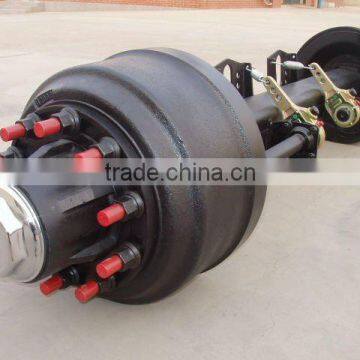

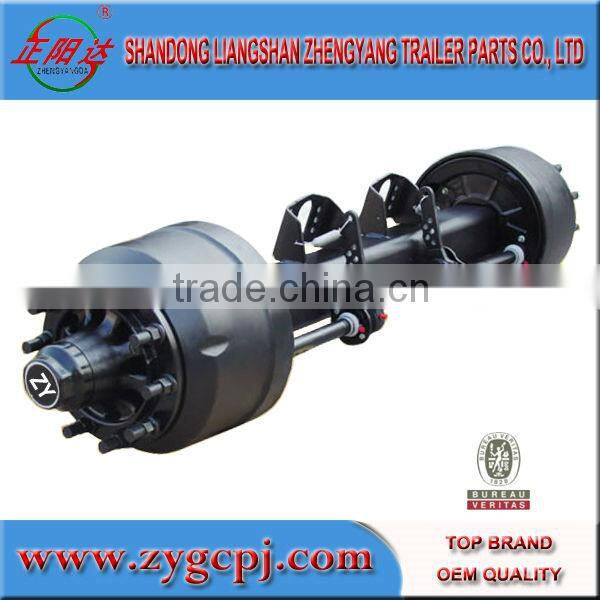

Help CenterHyundai Trailer Parts Outboard Drum Axle Series for Sale
Related Products
-
Trailer Parts Suspension System German Style Underslung SuspensionUS$ 450 - 800MOQ: 10 Pieces -
Hot Sale German Suspension For Trucks Suspension SystemUS$ 450 - 750MOQ: 1 Set
-
ZY Brand Underslung Round Axle Suspension System for Semi-TrailerUS$ 500 - 650MOQ: 1 Piece
-
Trailer Spares Parts German Type Trailer Suspension for SaleUS$ 450 - 750MOQ: 10 Sets
-
Best Quality Trx Suspension for TrailerUS$ 450 - 750MOQ: 10 Sets
Characteristics:
1).Special heat-treat, low-alloy steel axle beam, it has the virtues of good synthetic performance, strong load ability and lower self weight.
2).High quality alloy solid inserted spindle, through wholly heat treatment, provide superior fatigue capability.
3).High performance premium non-asbestos brake linings, extend service life.
4).Easy for ABS installation.
5).Camshaft, matching with special seals, can ensure no entry of the grease into the brake drum, more safety.
6).New tight fit hub capO rings, high property for sealing.
7).Grease lubricant is supplied by Mobil that lengthens the time of free maintenance.
8).Full range of stud fixing such as ISO, BSF and JAP, it can meet the requirements of various wheel rims.
Parameter:
| Technical Parameters of American Axle Series | |||||||||||||
| Description | ModelNo. | Capacity(t) | Brake(mm) | centre distance of brake chamberL4 | Axle Tube(mm) | centre distance of spring seat L3 | Stud | P.C.D | Track L2(mm) |
Bearing outer /inner |
Total Length L1(mm) | Weight(kg) | Recommended Wheel |
| Inboard Drum Axle | ZY-A1045 | 13 | 420*180 | 390 | 150*150/Φ127 | ≥930 | 10*M22*1.5 | 335 | 1840 |
518445/ 518445 |
≈2192 | 370 | 7.50V-20 |
| Inboard Drum Axle | ZY-A1046 | 14 | 420*220 | 350 | 150*150 | ≥930 | 10*M22*1.5 | 335 | 1850 |
518445/ 518445 |
≈2185 | 370 | 7.5V-20 |
| Inboard Drum Axle | ZY-A1047 | 16 | 420*220 | 354 | 150*150 | ≥940 | 10*M22*1.5 | 335 | 1850 |
518445/ 220149 |
≈2200 | 420 | 8.00V-20 |
| Inboard Drum Axle | ZY-A1048 | 20 | 420*220 | 354 | 150*150 | ≥940 | 10*M24*1.5 | 335 | 1850 |
518445/ 32222 |
≈2256 | 460 | 8.50V-20 |
| Inboard Drum Axle | ZY-A1049 | 25 | 420*220 | 354 | 150*150 | ≥940 | 10*M24*1.5 | 335 | 1850 |
30222/ 32222 |
|||
Advantage:
1) Reasonable structure,
2) Good braking quality,
3) High-intensity,
4) Big rigidity,
5) Long life as well as strong bearing capacity,
6) Passed the national authoritative department's monitor.
7) ISO9001:2000 and TS16949 certified.
8) Exported to many countries such as USA, Europe, Middle East, Southeast Asia
and Africa etc.
Images Show:
Our company holds the notion all the time that "first-class goods,reasonable price, perfect after-service";
We always think of your demand ahead of time and never ignore every bit
demand of clients during the service;
Let our sincereness and specialized technique be always with you!
1. Q:What's your best price for this product?
A: We will quote you best price according to your quantity, so when you making an
nquiry, please let us know the quantity you want.The more quantity the better price.
2. Q:How about the quality of this product?
A: Our products are certified to ISO9001,international quality standards. We company
have very strict Quality Control Systems.
3. Q:What material of the product can you supply?
A: Steel
4. Q:What's your MOQ?
A: 10pcs for each model. We hope you can buy more to save more money.
5. Q:What's the delivery time?
A: For products that are in stock, we can ship it within 7 days after receiving your
payment. For custom order, quantity within 24 tons, production time is 12-20 days after confirmed every details.
6. Q:What's your packing?
A:Our usual packing for this product is pallet, we can also supply you packing
according to your requirements.
7. Q:Can we custom our own logo or label on this product?
A: Yes, you can. we support logo print & stamping & label print, print will be free if the
logo is not very complex.
8. Q:What about the warranty?
A: We are very confident in our products, and we pack them very well to make sure the goods in well protection.
Shandong Zhengyang Machinery Co.,Ltd. which is Chinese trailer (special- use vehicle) production base.We have a factory profesionally design and manufacture parts, including landing gear series, kingpin series, air tanks, suspension systems, air brake chamber series, locks of containers, etc.
