CE Certificate Diesel Wood Chipper DWC-22
- Qingdao China
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | Runshine | Model Number | DWC-22 | |
| After-sales Service Provided | Overseas third-party support available |
Product Description

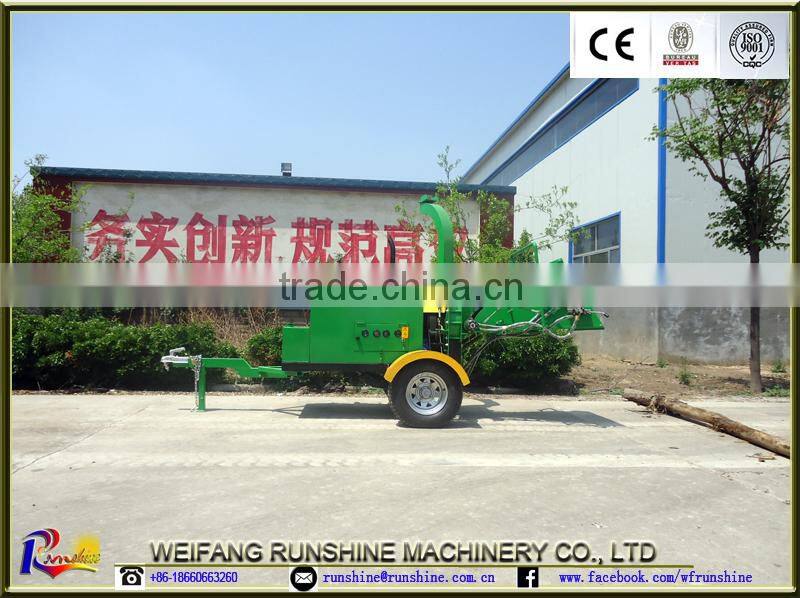

Runshine DWC-22 diesel wood chipper
Features: for diesel wood chipper
1.CE certificate.
2.Yanmar diesel engine.
3.Hydraulic feeding.
4. 8″ Cutting diameter,
5.Easy discharge hood,
6. ball hitch and security chain
7. Discharge chute rotates 360 degrees.
8. self feeding design
9. feeding speed adjustable

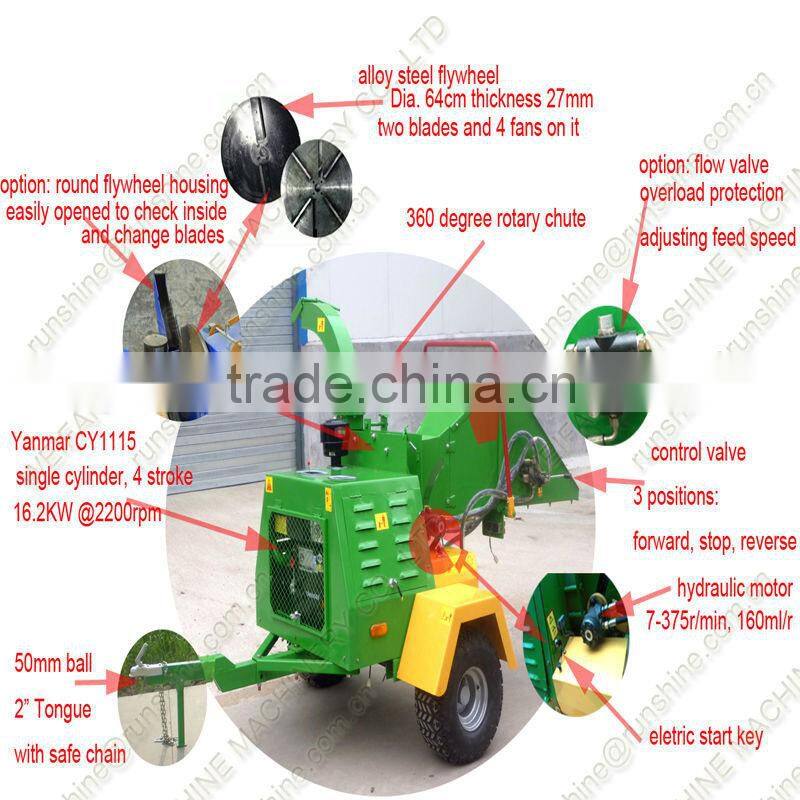

parts description of diesel wood chipper
Technical Data: of diesel wood chipper
Model | DWC-22 | |
Engine | Item | CY1115 diesel engine |
type | Single cylinder, horizontal, four-stroke | |
Combustion chamber type | Direct Injection | |
Cylinder diameter | 115mm | |
Piston stroke | 115mm | |
Piston displacement | 1.194L | |
Piston average speed | 8.43m/s | |
Compression ratio | 17.3 | |
Rated power | 16.2KW/2200rpm | |
Effective pressure | 740KPa | |
Fuel consumption rate | <245g/KW.h | |
Engine oil consumption | <1.5g/KW.h | |
Cooled style | Water-cooled (evaporation) | |
Start | Electric start | |
weight | 190kgs | |
dimensions | 918x451x689mm | |
Fuel | Diesel 0# in summer, -10# or -20# in winter | |
Chipper capacity | 150mm (Max. To 200mm) | |
Flywheel diameter | 640mm | |
flywheel weight | 85kgs | |
Blades Numbers | 1 stationary blade, 2 rotary blades | |
Feed Hopper inner Opening | 200 x 220mm | |
Discharge Hood Height | 2000mm | |
Rated RPM | 1080 | |
Weight | 650kg | |
Working efficiency | 7-11 cbm/h | |
Runshine diesel wood chipper working in European countries, Australia, South America and Japan.

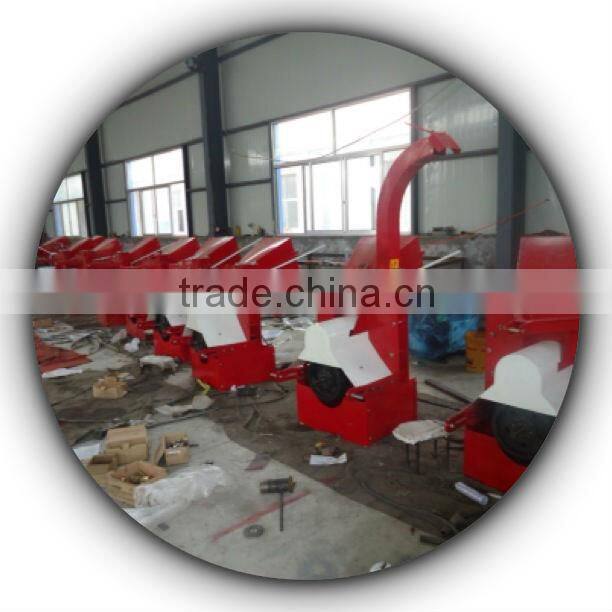

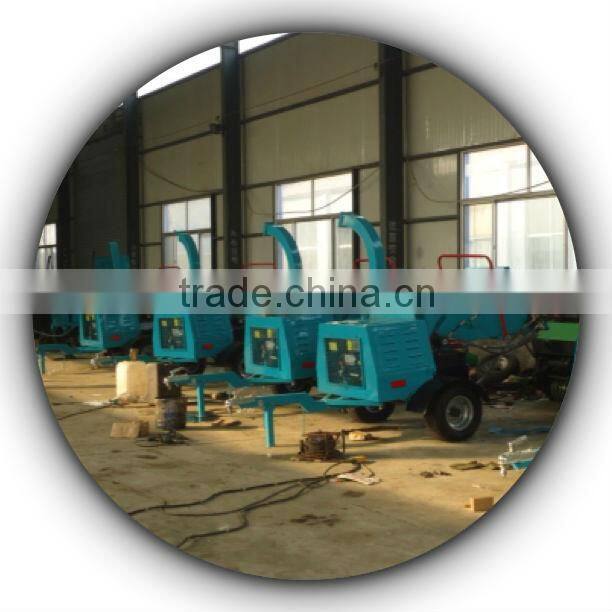

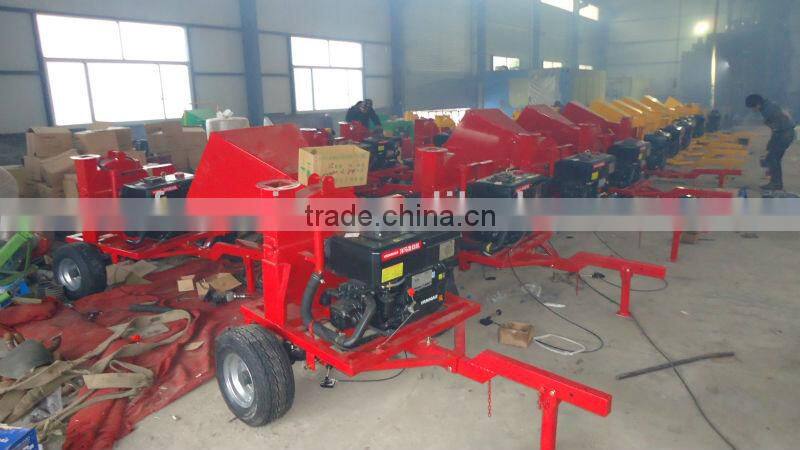

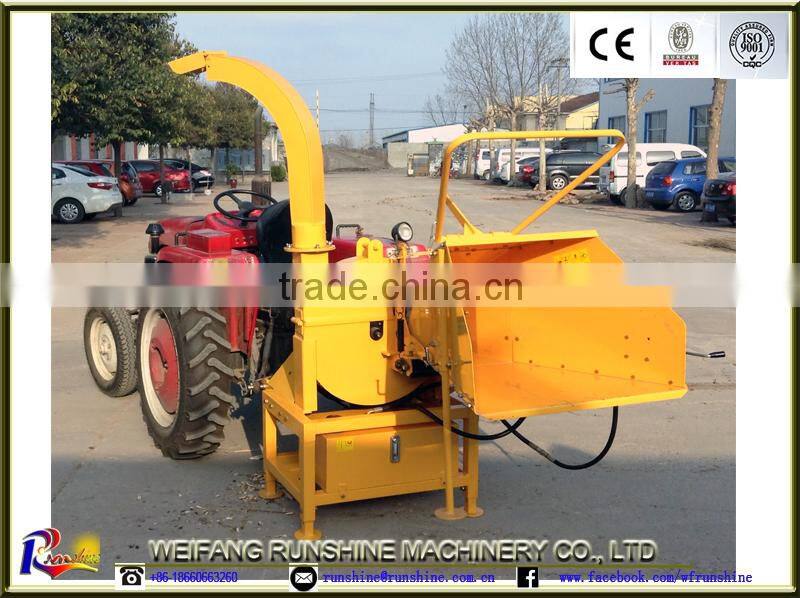

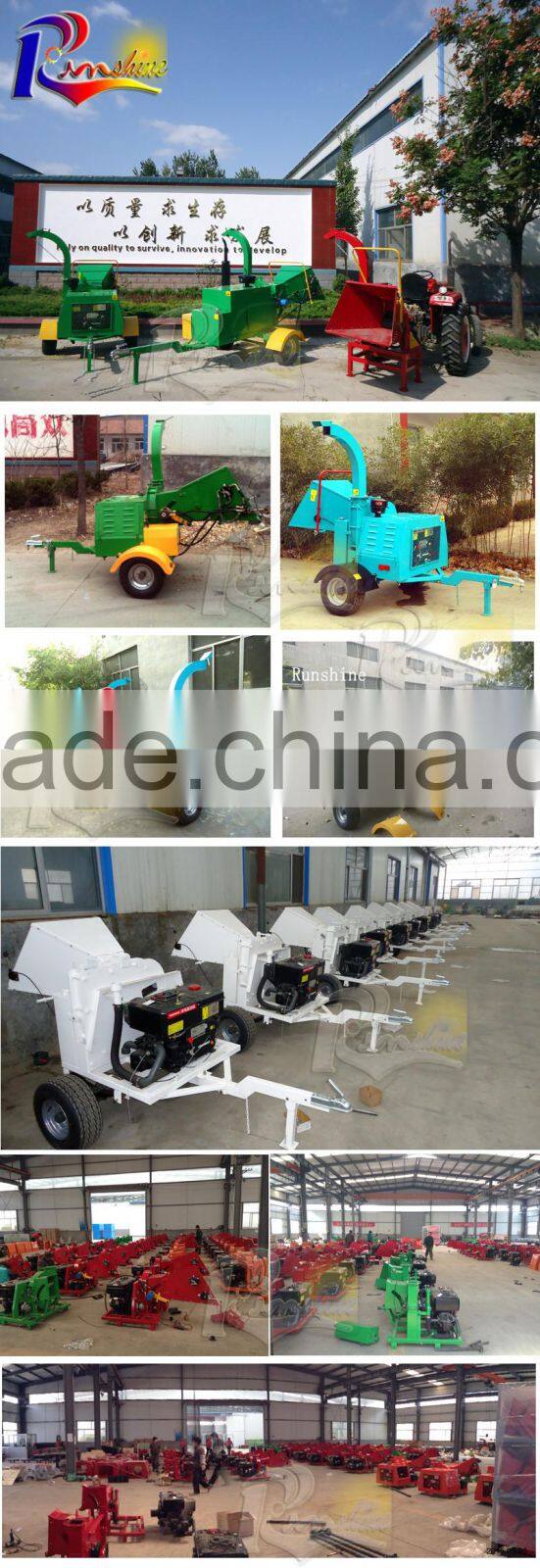

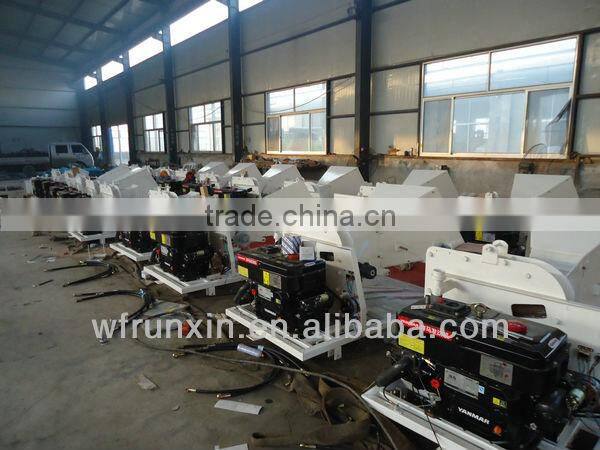

pictures of diese wood chipper

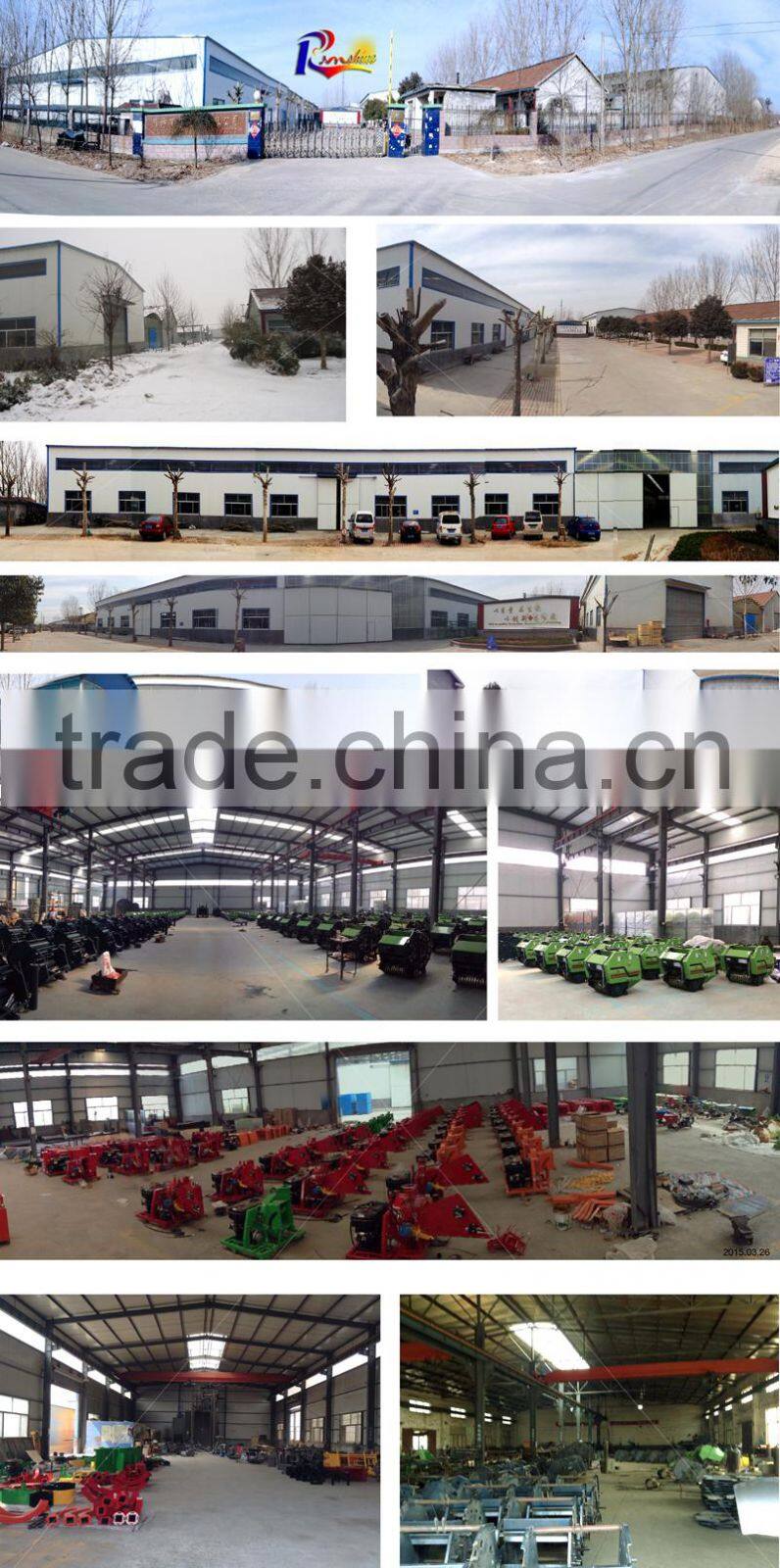

Weifang Coast-Harbor Machinery Co., Ltd., was built in 1989, in casting and producing power tiller. it develops step by step.
- 1999 the factory only covered 4,000 square meters, with 2 workshops
- 2004 the new factory occupied 30,000 square meters, with 5 workshops.
and this year it was renamed "WEIFANG RUNSHINE MACHINERY CO., LTD" and started to international trade. first products line was front end loader and backhoe for tractor.
- 2005 developing PTO wood chipper and diesel wood chipper. soon, the diesel wood chippers are well sold to the world. at the same time, other tractor attachments were developed, such as, finish mower, slasher, road sweeper, snow blower.
- 2007 one new workshop was built, 20 pcs Co2 welding machine, Flame cutting machine, shearing machine were bought.
- 2009 through it is hard time all over the world, but two important things made us boom up ---OEM road construction machines. and the most important developing the mini round baler. after one year testing,
- 2010 it was brought to market and get success quickly. first year, over 200 units are exported.
- 2012 over 500 units are exported. rotary rake,finger wheel rake and bale wrapper were made into the haying machines family.
- 2013 because of the demand of development, two workshops came into service. disc mower is sent to market, and the first order over 100 units. we got CE certificate for Wood chipper WC-8, Diesel wood chipper DWC-22, DWC-40, disc mower, hay rake, round baler, bale wrapper.
- 2014 sales volume over $5 million. amount of products over 2300 units mini round balers; over 500 units disc mowers over 600 units rotary hay rakes , finger wheel rakes over 400 units diesel wood chippers.
- at the end of 2014, we developed larger round baler and tested it succeed. it is promoted in 2015. this makes us the No.1 manufacturer of haying machines and diesel wood chipper in China.
- now, Runshine has 5 processing workshops, 3 assembly workshops, 1 surface treatment workshop, 2 finished product warehouse, 2 parts warehouse, 1showroom;
3 products lines: haying machines---disc mower, rotary hay rake, finger wheel rake, large round baler, mini round baler, bale wrapper; woodworking machines--PTO wood chipper, diesel wood chipper, log splitter; 3PT attachments for tractor---front end loader, backhoe, snow blower, road sweeper and etc.

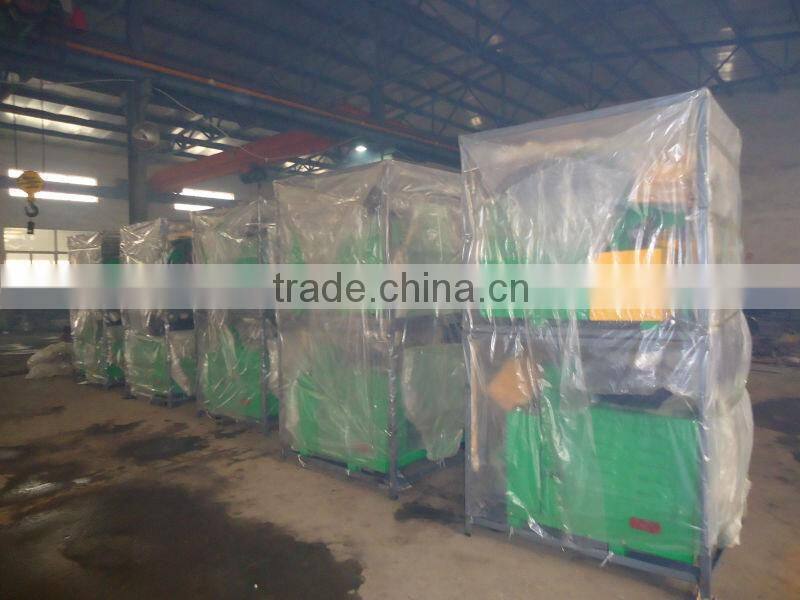

| packing method | iron crate with plastics |
| one unit | 1.2x1.15x1.2m 656kgs |
| 20GP | 20units |
| 40GP | 40units |
