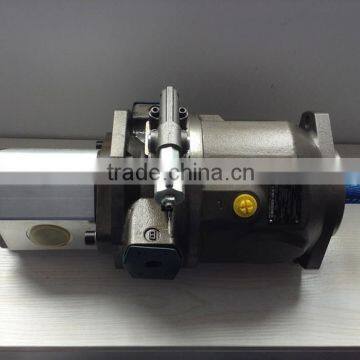

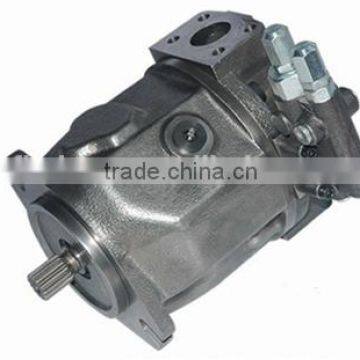

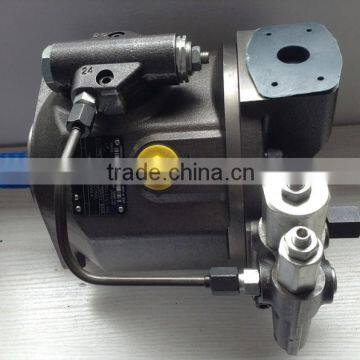

Rexroth A10VSO Variable piston hydraulic pump
- 2000 Set / Sets per Month
- NINGBO/shanghai
- Credit Card
Product Details
Type: | Hydraulic Power Units | Model Number: | A10VSO piston hydraulic pump | Brand Name: | Findway |
Place of Origin: | Zhejiang, China |
Packaging Details
standard export packing. Wooden case that has been fumigated.It can also endure long time sea shipment.
Product Description
1.We offer 24 hour technical support to help our customer choose the pump the need and solve any techincal problem occured when using the pump.
2.We offer 18 month warranty time for our hydraulic pump. Should any problem occurs during warranty time, we will provide spare parts to our customer free of charge
Our company specialize in manufacturing and supplying Rexroth series hydraulic pump and hydraulic motor.
Main products: A2F.A4V.A4VSO.A4VG.A4VTG.A4VSG,A6V,A7V.A8V.A10V.A10VSO.A10VG pump & spare parts, A2FM,A6VM,MCR03,MCR05 motor & spare parts.
Good quality, fast delivery and competitive pricing.
The A10VO Series Pump is made in china with higher quality and competitive cost. These series pumps’ function and details Dimension of the spare parts as same as the Original Brand Pump. It can be replaced with the original Brand Pump very well.
A10VO--31 series axial piston variable displacement pumps can be used
For Implement Hydraulics of Construction Machinery : Wheel Excavators, Standard Excavators, Mining Excavators,Compact Excavators, Wheeled Loaders, Backhoe Loaders, Skid steer loaders,
Telehandlers, Pavers and road milling machines, Concrete Pumps, Dumpers; Also used for the Implement Hydraulics of Agricultural and Forestry machinery: Harvesters, Forwards, Skidders,
Mobile Cranes, Fork lift trucks, Large lift trucks, Mining machines, Crushers and Screens, On-highway and Commercial Vehicles, Air port Equipment, Heavy duty vehicles, and so on...
CHARACTERISTICS of A10VO series hydraulic pump
1 Swash plate design axial variable piston pump used in open circuit.
2 Continuous work pressures can reach 280bar;
the highest instantaneous work pressure can reach 350bar.
3 The flow is directly proportional to the drive rotate speed and the displacement,
and can make stepless variable come true by adjusting the obliquity of the swash plate.
4 There are various of control type such as DR, DFR, DFLR etc. and the control response is very fast.
5 Low noises level, High efficiency, High reliability and long time service life.
6 Small volume, High power density.
7 Excellent oil absorbency.
8 Axial and radial loading of drive shaft possible
9 SAE and ISO mounting flange
Techinal data of A10VO series hydraulic pump A10VO18/28/45/71/100/140
Sizes |
|
|
| 16/18 | 28 | 45 | 71 | 100 | 140 |
Displacement |
| Vg max | cm3 | 18 | 28 | 45 | 71 | 100 | 140 |
Max speed |
| nmax | rpm | 3300 | 3000 | 2600 | 2200 | 2000 | 1800 |
Max. flow | In nmax | qv | L/min | 59.4 | 84 | 117 | 156 | 200 | 252 |
in 1500 r/min | 27 | 42 | 68 | 107 | 150 | 210 | |||
(¦¤p=280bar) | in nmax | Pmax | Kw | 27.7 | 39 | 55 | 73 | 93 | 118 |
in 1500 r/min | 12.6 | 20 | 32 | 50 | 70 | 98 | |||
(¦¤p=280bar) | in Vg max | Tmax | Nm | 80.1 | 125 | 200 | 316 | 445 | 623 |
Weight |
| m | Kg | 12 | 15 | 21 | 33 | 45 | 60 |
We use wooden case that can endure long time sea shipment. Our package can prevent products from damaged during shipment at maximum extent.
We also have professional forwarder who not only offer competitive price in freight but also has strong ability to help our customer with custom clearance.
Hydraulic testing system of hydraulic pump:
Each set of hydraulic pump is fully tested by our hydraulic system to ensure product 100 % quality before we send them to our customers.
Spray room of hydraulic pump and hydraulic motor:
Our spray room is dust free which ensures a perfect surface of our hydraulic pump and hydraulic motor.
Assembly line of hydraulic pump and hydraulic motor
Our assembly line is also dust-free which keeps the cleanliness of inner parts of our hydraulic pump and hyrdaulic motor.
Three-dimensional Measuring Instrument:
The three-dimension measuring instrument ensures our hydraulic pump and motor spare parts are the same to original ones.
Nitriding furnace of hydraulic pump and hydraulic motor:
The Nitriding funace ensures the hardness and abradability of our spare parts.
Hydraulic pump and motor spare parts stock
Machining center:
Company Profile
Ningbo Jiangdong Findway Import & Export Co.,Ltd is a newly established company who mainly supplies replacement products of original brand. The company is located in the center of China's most advanced hydraulic parts, pumps, motors, valve manufacturing area-Ningbo,Zhenjiang province and close to Chinese Biggest transportation group Shanghai and Ningbo. Currently the company mainly products include:A2F,A4V,A4VSO,A4VG,A4VTG,A4VSG,A6V,A7V,A8V,A10V.A10VSO,A10VG hydraulic pump and spare parts, A2FM,A6VM,MCR03,MCR05 hydraulic motor and spare parts. The company's products are 100% interchangeable to original products with good quality and competitive pricing.
