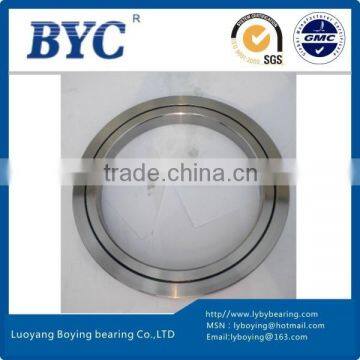

CRBH6013 Crossed Roller Bearing|thin Section Bearing Matching Size for Robotic

CRBH6013 crossed roller bearing|thin section bearing|bearing matching size for Robotic

(Integrated Inner/Outer Ring Type)

CRBH6013 crossed roller bearings is with an integrated Inner/Outer Ring structure,CRBH series can be used for both inner-ring rotation and outer-ring rotation.
CRBH series cross roller bearings:CRBH10020A CRBH11020A CRBH12025A CRBH13025A CRBH14025A CRBH15025A CRBH20025A CRBH25025A

Structure features of  CRBH6013 crossed roller bearing:

With the Crossed roller bearing, cylindrical rollers are arranged crosswise, with each roller perpendicular to the adjacent roller, in a 90°V groove, separated from each other by a spacer retainer.  This design allows just one bearing to receive loads in all directions including, radial, axial and moment loads. Since the Crossed Roller bearing achieves high rigidity and the precision can reach up to P4.P2,despite the minimum possible dimensions of the inner and outer rings,it is optimal for applications such as joints and swiveling units of industrial robots, swiveling tables of machining centers, rotary units of manipulators, precision rotary tables, medical equipment, measuring instruments and IC manufacturing machines.

Rotation accuracy:

The spacer retainer fitting among cross-arrayed rollers prevents rollers from skewing and the rotation torque from increasing due to friction between rollers. Unlike conventional types using steel sheet retainers, the CRBH6013 crossed roller bearing does not cause displacement or locking of rollers and provides a stable rotation torque. Since the inner and outer rings are designed to be separable, the bearing clearance can be adjusted. In addition, highly accurate rotary motion is ensured through adjusting the bearing clearance to provide a preload.

Usage characteristics

The inner and outer rings, which are separable, are secured to CRBH6013 crossed roller bearing body after the rollers and spacer retainers are installed. This procedure prevents the rings from separating from each other.  Thus, it is easy to handle the rings when installing this type.

 Packing:

Vacuum package:40mm-200mm
Wooden box package:200mm-1500mm

Shipping:

 By air or By sea

 Installation Procedure:

1.Thoroughly clean the housing and other parts to be installed, and check to determine if deburring is required.

2.Since the Crossed Roller bearing is a thin-wall bearing type and therefore tends to misalign when it is installed, in case of this situation,gradually drive the product into the housing or onto the shaft by gently hitting it with a plastic hammer, while keeping the product horizontal. Taking care, continue to hammer until it fully contacts the reference surface.

3.Place the presser flange onto the Crossed Roller bearing . Rock the flange several times to match the bolt holes.

4.Insert the presser bolts into the holes.  Manually turn the bolts and make sure they do not display skewing caused by misalignment of the holes.

5. As is shown in the pictures below:Tighten the presser bolts in three to four steps from light to full tightening byrepeatedly securing the bolts in diagonal order.When tightening the separable inner or outer ring, slightly turning the integral outer or inner ring will correct the dislocation between the ring and the body.
