Our company specialize in manufacturing and supplying Rexroth series hydraulic pump and hydraulic motor.
Main products: A2F.A4V.A4VSO.A4VG.A4VTG.A4VSG,A6V,A7V.A8V.A10V.A10VSO.A10VG pump & spare parts, A2FM,A6VM,MCR03,MCR05 motor & spare parts.
Good quality, fast delivery and competitive pricing.
Q1. How about quality stability?
Our products has a long service life up to 6-8 years when used properly.
Each set of hydraulic pump is fully tested on our hydraulic system to ensure product quality before we send them to our customers.
Q2.What about delivery time?
We offer 7 day production lead time. Normally we have most of the products in stock. 3-5 days is enough for delivery.
We use wooden case that can endure long time sea shipment. Our package can prevent products from damaged during shipment at maximum extent.
We also have professional forwarder who not only offer competitive price in freight but also provide fast custom clearance service to our customers.
1.We offer 24 hour online technical support to help our customer choose the pump they need and solve any techincal problem occured when using the pump.
2.We offer 18 month warranty time for our hydraulic pump. Should any quality problem occurs during warranty time, we will provide spare parts to our customers for charge free.

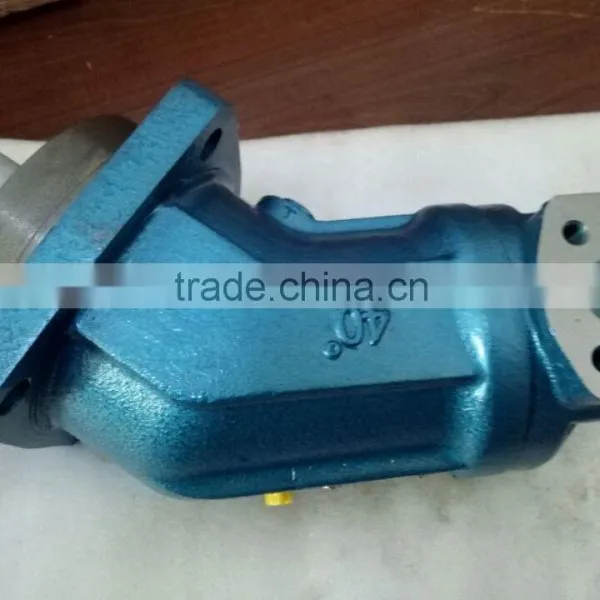

The A2FM --61 series hydraulic motors are made
in china with higher quality and competitive cost.
This A2F series motors’ function and the overall size along with
all of the spare parts are as the same as the Original A2FM series motor.
It can replace original A2F series motor very well.
The Fixed motors A2FM--61 series used for:
The Implement hydraulics of Construction Machinery, Agricultural and Forestry Machinery, Material Handling, On- Highway and Commercial Vehicles: Wheel Excavators, Standard Excavators, Mining Excavators, Rollers, Telehandlers, Pavers and road milling machines, Concrete mixers; Mobile cranes, Crawler cranes, Drilling rigs, Crushers and screens; Municipal vehicles, Heavy duty vehicles and so on...
The Fixed motors A2FM--61 series used for the Travel Drive systems of Construction Machinery, Agricultural and Forestry Machinery, Material Handling, On- Highway and Commercial Vehicles: Mining excavators, Concrete mixers, Combine and forage harvesters, Fork lift trucks, Large lift trucks and container handling, Aerial work platforms, Municipal vehicles, Airport equipment, Heavy duty vehicles
Features of Rexroth A2FM hydraulic axial piston motor:sprayer hydraulic motor
1. Bent axis design with fixed displacement
2. Completely interchangeable with original
3. For use as either pump or motor in hydrostatic drivers, in open of closed circuit
4. High performance rotary group with well-proven spherical control area with the advantages; self-centering low peripheral speed, high efficiency
5. Robust rolling bearings endure long service life
6. Drive shaft capable of adopting radial loading
7. Application: For engineering machinery, maritime boat and industrial machinery etc.
Technical Specifications
A2FM Series motor
Size |
|
|
|
5 |
10 |
12 |
16 |
23 |
28 |
32 |
45 |
56 |
63 |
80 |
Displacement |
|
Vg |
cm3 |
4.93 |
10.3 |
12 |
16 |
22.9 |
28.1 |
32 |
45.6 |
56.1 |
63 |
80.4 |
Speed |
|
nmax |
rpm |
5600 |
3150 |
3150 |
3150 |
2500 |
2500 |
2500 |
2240 |
2000 |
2000 |
1800 |
Flow |
at nmax |
qvmax |
l/min |
27.6 |
32.4 |
37.8 |
50 |
57 |
70 |
80 |
102 |
112 |
126 |
144 |
Power |
p=315bar |
Pmax |
kw |
14.5 |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
Power |
p=400bar |
Pmax |
kw |
- |
21.6 |
25 |
34 |
38 |
47 |
53 |
68 |
75 |
84 |
96 |
Torque |
p=315bar |
Tmax |
Nm |
24.7 |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
Torque |
p=400bar |
Tmax |
Nm |
- |
65 |
76 |
101 |
145 |
178 |
203 |
290 |
356 |
400 |
511 |
Weight |
|
m |
Kg |
2.5 |
6 |
6 |
6 |
9.5 |
9.5 |
9.5 |
13.5 |
18 |
18 |
23 |
Size |
|
|
|
90 |
107 |
125 |
160 |
180 |
200 |
250 |
355 |
500 |
710 |
1000 |
Displacement |
|
Vg |
cm3 |
90 |
106.7 |
125 |
160.4 |
180 |
200 |
250 |
355 |
500 |
710 |
1000 |
Speed |
|
nmax |
rpm |
1800 |
1600 |
1600 |
1450 |
1450 |
1550 |
1500 |
1320 |
1200 |
1200 |
950 |
Flow |
at Nmax |
qvmax |
l/min |
162 |
170 |
200 |
232 |
261 |
310 |
375 |
469 |
600 |
826 |
950 |
Power |
p=350bar |
Pmax |
kw |
- |
- |
- |
- |
- |
- |
219 |
278 |
330 |
497 |
554 |
Power |
p=400bar |
Pmax |
kw |
108 |
114 |
133 |
155 |
174 |
207 |
- |
- |
- |
- |
- |
Torque |
p=350bar |
Tmax |
Nm |
- |
- |
- |
- |
- |
- |
1393 |
1978 |
2785 |
3955 |
5570 |
Torque |
p=400bar |
Tmax |
Nm |
572 |
678 |
795 |
1020 |
1145 |
1272 |
- |
- |
- |
- |
- |
Weight |
|
m |
Kg |
23 |
32 |
32 |
45 |
45 |
66 |
73 |
110 |
155 |
322 |
336 |
Hydraulic testing system of hydraulic pump:
Each set of hydraulic pump is fully tested by our hydraulic system to ensure product 100 % quality before we send them to our customers.
Spray room of hydraulic pump and hydraulic motor:
Our spray room is dust free which ensures a perfect surface of our hydraulic pump and hydraulic motor.
Assembly line of hydraulic pump and hydraulic motor
Our assembly line is also dust-free which keeps the cleanliness of inner parts of our hydraulic pump and hyrdaulic motor.
Three-dimensional Measuring Instrument:
The three-dimension measuring instrument ensures our hydraulic pump and motor spare parts are the same to original ones.
Nitriding furnace of hydraulic pump and hydraulic motor:
The Nitriding funace ensures the hardness and abradability of our spare parts.
Hydraulic pump and motor spare parts stock
Machining center:
