XR882055 cross tapered roller bearing|machine tool bearings|BYC precision bearings|901.7*1117.6*82.55mm
Cross tapered roller bearing XR882055|used for machine tool|tapered roller bearing size chart

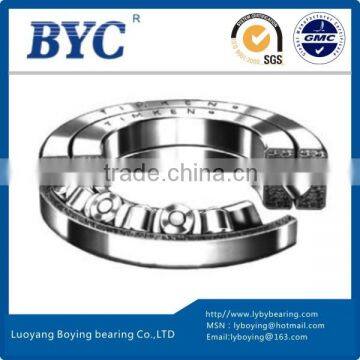

XR882055 cross tapered roller bearing contains two sets of races and rollers brought together at high angles with alternate rollers facing in opposite directions. The height of cross section is similar to single-row bearing for conserving space and saving bearing housing material. And the steep-angle, tapered geometry results in a total effective bearing spread much greater than the width of the bearing itself.
It is able to withstand high overturning moments, and is optimal for machine tools, including vertical boring, grinding machines, precision circular dividing table, gear hobbing machine, turret and industrial robots.
XR496051 XR678052 XR766051 XR820060 XR855053 XR882055 XR889058 XR897051
JXR637050 JXR652050 JXR699050
Bearing |
Main dimensions (mm) |
Basic dynamic load rating |
Speed Limited Oil |
Weight |
||||
Inner ring |
Outer ring |
Width |
Chamfer |
Radial |
Axial |
|||
XR496051 |
203.2 |
279.4 |
31.75 |
1.5 |
41 |
49.2 |
800 |
6.5 |
XR678052 |
330.2 |
457.2 |
63.5 |
3 |
80 |
98.4 |
620 |
35 |
XR766051 |
457.2 |
609.6 |
63.5 |
3 |
106 |
133 |
520 |
51 |
XR820060 |
580 |
760 |
80 |
5 |
106 |
209 |
300 |
100 |
XR855053 |
685.8 |
914.4 |
79.375 |
3 |
180 |
224 |
260 |
150 |
XR882055 |
901.7 |
1117.6 |
82.55 |
3 |
225 |
297 |
200 |
185 |
XR889058 |
1028.7 |
1327.15 |
114.3 |
3 |
283 |
374 |
160 |
400 |
XR897051 |
1549.4 |
1828.8 |
101.6 |
3 |
326 |
489 |
80 |
500 |
JXR637050 |
300 |
400 |
37 |
1.5 |
47.2 |
60 |
720 |
13 |
JXR652050 |
310 |
425 |
45 |
2.5 |
61.6 |
76.5 |
640 |
20 |
JXR699050 |
370 |
495 |
50 |
3 |
70.2 |
89.2 |
600 |
30 |
XR882055 cross tapered roller bearing is able to withstand high overturning moments, and is optimal for machine tools, including vertical boring, grinding machines, precision circular dividing table, gear hobbing machine, turret and industrial robots.
Design Features
l The line contact of races and rollers can offer high rotation accuracy, high stability and high rigidity.
l The adjustment design of pro-load extend the bearing using life , increase the rigidity and reach the smallest runout.
l The nylon spacers has low inertia and small running torque.
l High rotation accuracy and high rigidity , and conserving material costs.
l The steep-angle, tapered geometry results in a total effective bearing spread much greater than the width of the bearing itself.
Packing:Vacuum package:40mm-200mm
Wooden box package:200mm-1500mm
Shipping: By air or By sea
Installation Procedure:
1.Thoroughly clean the housing and other parts to be installed, and check to determine if deburring is required.
2.Since the Crossed Roller bearing is a thin-wall bearing type and therefore tends to misalign when it is installed, in case of this situation,gradually drive the product into the housing or onto the shaft by gently hitting it with a plastic hammer, while keeping the product horizontal. Taking care, continue to hammer until it fully contacts the reference surface.
3.Place the presser flange onto the Crossed Roller bearing . Rock the flange several times to match the bolt holes.
4.Insert the presser bolts into the holes. Manually turn the bolts and make sure they do not display skewing caused by misalignment of the holes.
5. As is shown in the pictures below:Tighten the presser bolts in three to four steps from light to full tightening byrepeatedly securing the bolts in diagonal order.When tightening the separable inner or outer ring, slightly turning the integral outer or inner ring will correct the dislocation between the ring and the body.
Nowadays, as a professional percision bearing manufacture, we are proud of continual innovation, flexible production, speedy delivery, rapid after-sales service(2 years) and quick response.
Luoyang BoYing Bearing Co., Ltd,(BYC) is a professional manufacturer of high precision bearings, which has combine researching and developing,producing and marketing together. Taking the advantage of the strong industrial basis of Luoyang, under the guidance of the pioneer in bearing industry. we grew up rapidly. After years of researching and producing practice,we have developed a very integrated system ,Now,we have solid technical strength,excellent processing facilities ,perfected production & test condition,and also completed quality control.
The main products of our company are crossed roller bearings, YRT rotary table bearings, crossed tapered roller bearings. The leading products include crossed roller bearing RB, RE, RU,RA,CRBC, CRBH, XSU, SX series, rotary table bearings YRT, YRTS,YRTM,ZKLDF series, crossed tapered roller bearing JXR, XR series, almost whole range of precision bearings. The accuracy grades are P5, P4, P2, and the size of inner ring are ranging from Φ50mm --- Φ1300mm. Our products are optimal for applications such as joints and swiveling units of industrial robots, swiveling tables of machining centers, precision rotary tables, medical equipment, measuring instruments and IC manufacturing machines,mainly to replace the imported bearings. Also, we can design,choose and manufacture non-standard,large size precision bearings as customer requested.
Now we adhere our management philosophy "Focus on details, Enhance self-ability",“Providing best products,and Satisfied after-sale service” We are looking forward to cooperate with customers all over the word ,contributing to the development and technology of your enterprise.
