2016 Wonderful Sales 5X1 HDMI Switcher Mini Switcher With Remote
Description of 2016 Wonderful Sales 5X1 HDMI Switcher Mini Switcher With Remote:
This 5x1 HDMI Switcher allows access to multiple HDMI sources, using a single HDMI sink. The HDMI Switcher allows five HDMI devices to be switched easily through one HDMI compatible monitor or projector. The HDMI Switch can also be placed at the end of a long HDMI cable to regenerate the HDMI signal.
Our HDMI Switches offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
Features of 2016 Wonderful Sales 5X1 HDMI Switcher Mini Switcher With Remote:
1) Five HDMI 1.3a input signal split to one HDMI 1.3a sink devices
2) HDCP 1.2 protocol compliant
3) Support 3D
4) Support CEC
5) Support deep color 30bit.
6) Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
7) Digital audio format: DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD
8) Support signal retiming
9) Support input up to 15metres AWG26 HDMI 1.3 standard cable length, output up to 25metres AWG26 cable length
10) Inputs can be switched with the IR remote control,also can be controlled by button.
11) No loss of quality
12) It can smartly jump over those input sources which are not connected.
13) With the smart function of memory, it can come back to the latest status when restarted
or reconnected
14) Installs in minutes
15) Need DC5V/1A power adapter
Specification of 2016 Wonderful Sales 5X1 HDMI Switcher Mini Switcher With Remote:
HDMI version…………………………………………….………….......………….. HDMI 1.3a
HDCP version……………………………………………………………….......……....HDCP1.2
HDMI resolution…....24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Video color format …………………………..………......….24bit/deep color 30bit
Audio format………...DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Max bandwidth……………………………………………………………..…………..250MHz
Max baud rate……………….…….………………….………………………..……..6.75Gbps
Input/Output TMDS signal ………….……………………...… 0.5~1.5Volts p-p(TTL)
Input/Output DDC signal …………………………………………..…… 5Volts p-p (TTL)
Input cable distance..…... …………….≤15m AWG26 HDMI 1.3 standard cable
Output cable distance………………...≤25m AWG26 HDMI 1.3 standard cable
Max working current…………………………………………………...…………….....350mA
Power adapter Input: ……...AC (50HZ, 60HZ) :100V-240V; Output: DC5V/1A
Operating Temperature range……..…………….……………………… (-15 to +55°C)
Operating Humidity range………………………..5 to 90%RH (No Condensation)

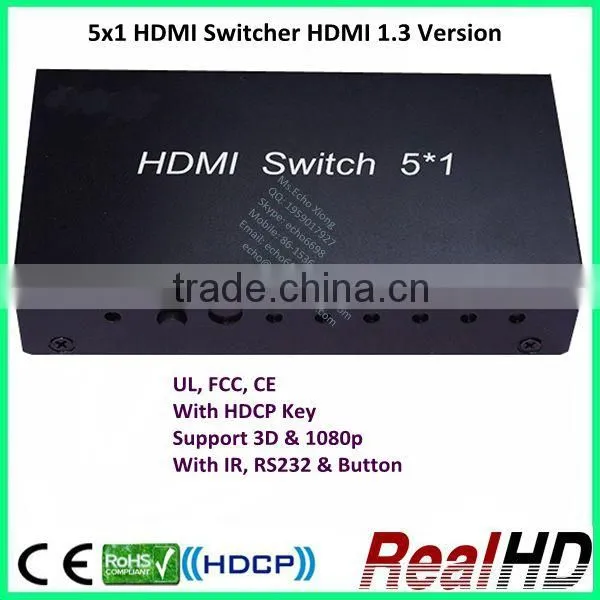

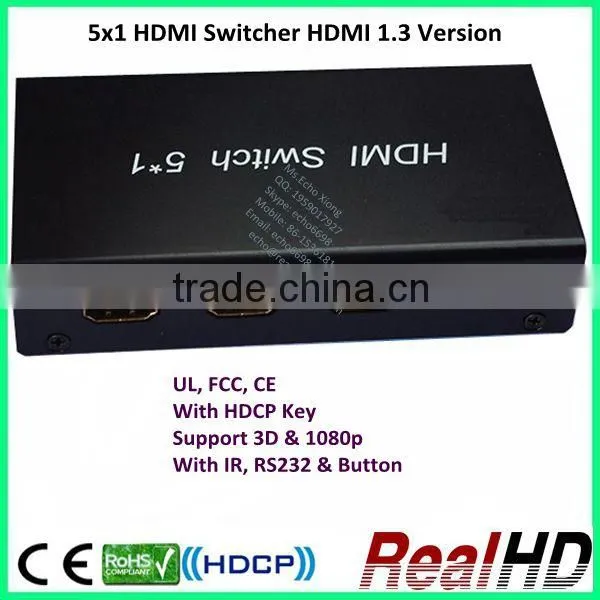

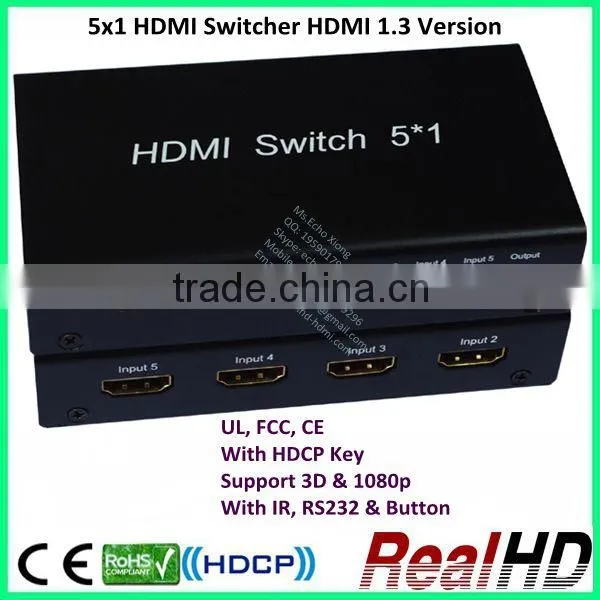

Pictures of 2016 Wonderful Sales 5X1 HDMI Switcher Mini Switcher With Remote:
Package:
1 x HDMI 1.3 Version HDMI Switcher 5x1.
1 x 5V Power Adapter
1 x User Manual.
Payment:
1) We could accept T/T and Western Union and Paypal Order. If you want other payment terms please let us know before you order.
2) Full payment should be made within 7 days after placing your order.
3) Make sure that you have completed all the detailed information like contact person, address, post code and telephone number when filling in your buyer's information.
Shipping:
1) UPS, DHL, Fedex and EMS, TNT are available.
2) The goods will be sent within 3 business days after the full payment has been confirmed. If payment is not available, your order will be closed automatically.
3) The products could be marked as "gifts" or "sample" for your easy custom clearances and less charge if you need. If you want to declare the goods as other item name, or specify an value for custom, please inform us when making the order.
Note: DHL/UPS/Fedex Express usually takes about 4-6 days to the destination, and about 5-8 work days by EMS or TNT. Hongkong Post Air Mail and Hongkong Post Air Parcel takes 7-30 days to ship to worldwide.
1. All products have proceeded aging test before shipping and we guarantee it's safety to use.
2. OEM and ODM are welcome, and could imprint your logo.
3. 3 years warranty for all products, and If not man-made problem, replace or repair are ok.
RealHD Established in 2009 by a group of rich experienced engineers, it is a professional manufacturer engaged in the research, development, production, sale and service of HDMI splitters, switchers, matrixes, converters, extenders and cables, our products are well saled in Europe, North America, Brazil, Australia.
