Specifications
Support 3D & 1080PSupport CEC
Support signal retiming
UL/CE/FCC
16 ports HDMI Splitter 1x16
Description:
This 1x16 HDMI Splitter 1.3 Version using a single HDMI source, accessing to multiple HDMI sinks. The HDMI Splitter allows one HDMI devices to be split easily to 16 HDMI compatible monitors or projectors. The HDMI Splitter can also be placed at the end of a long HDMI cable to regenerate the HDMI signal.
Features:
1) One HDMI 1.3b input signal split to 16 HDMI 1.3b sink devices
2) HDCP 1.2 protocol compliant
3) Support 3D
4) Support CEC
5) Support deep color 30bit.
6) Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
7) Digital audio format: DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD
8) Support signal retiming
9) Support input up to 15metres AWG26 HDMI 1.3 standard cable length, output up to 25metres AWG26 cable length
10) No loss of quality
11) Installs in minutes
12) Need DC5V/1A power adapter
Specification:
HDMI version…………………………………………….………….......………….. HDMI 1.3b
HDCP version……………………………………………………………….......……....HDCP1.2
HDMI resolution…....24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Video color format …………………………..………......….24bit/deep color 30bit
Audio format………...DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Max bandwidth……………………………………………………………..…………..225MHz
Max baud rate……………….…….………………….………………………..……..6.75Gbps
Input/Output TMDS signal ………….……………………...… 0.5~1.5Volts p-p(TTL)
Input/Output DDC signal …………………………………………..…… 5Volts p-p (TTL)
Input cable distance..…... …………….≤15m AWG26 HDMI 1.3 standard cable
Output cable distance………………...≤25m AWG26 HDMI 1.3 standard cable
Max working current…………………………………………………...…………….....500mA
Power adapter Input: ……...AC (50HZ, 60HZ) :100V-240V; Output: DC5V/1A
Operating Temperature range……..…………….……………………… (-15 to +55°C)
Operating Humidity range………………………..5 to 90%RH (No Condensation)
Dimension (L x W x H) ……………………………….………….…………380x140x60 (mm)
Weight…..………………………………………………………..……..…..…………………2030g

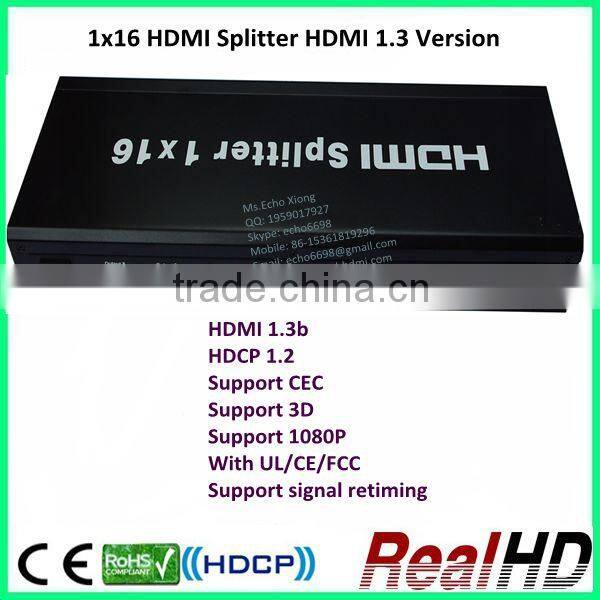

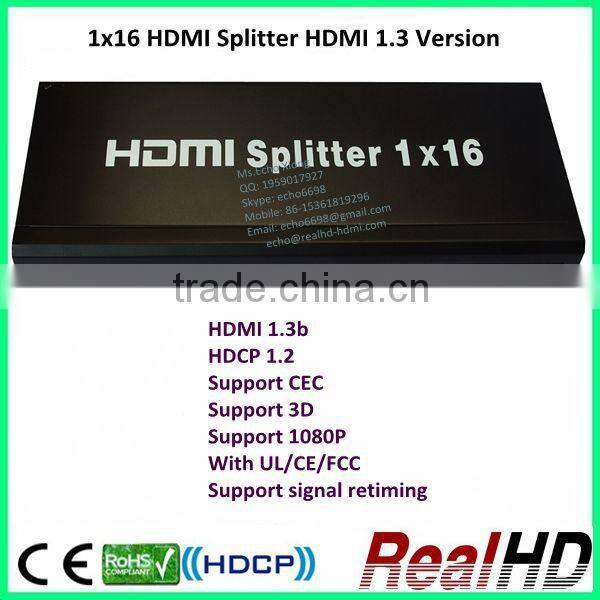

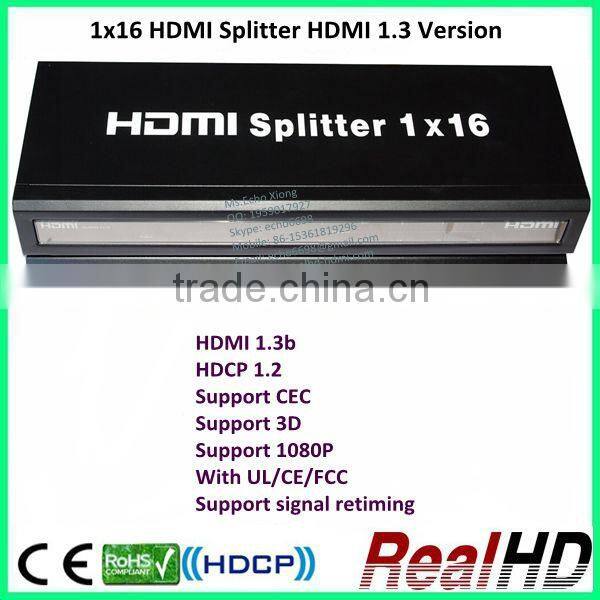

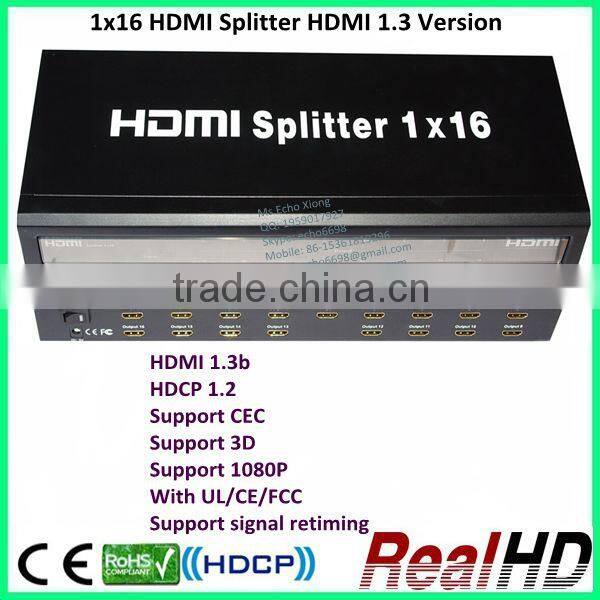

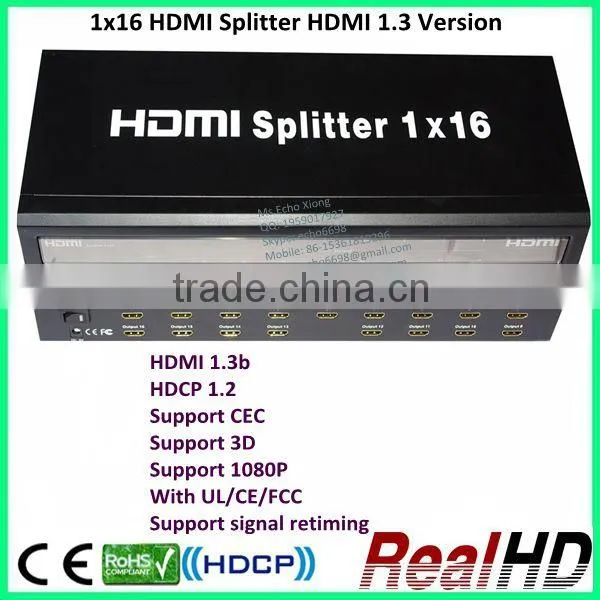

Pictures:
Package:
1 x HDMI 1.3 Version HDMI Splitter 1x16.
1 x 5V Power Adapter
1 x User Manual.
