Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Audio & Video Cable > 1x2 Port HDMI Splitter 1.3

1x2 Port HDMI Splitter 1.3

Name: 1x2 Port HDMI Splitter 1.3
Brand: RealHD
SKU: 104100583
Availability: InStock

US$ 12 - 13.5 MOQ: 10 Pieces

Key Specifications

Get Latest Price

Brand Name:

RealHD

Model Number:

HDSP0102M

Place of Origin:

Guangdong, China

Contact Supplier Request Quote Chat Now

Shenzhen Realhd Technology Co., Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name RealHD

Model Number HDSP0102M

Place of Origin Guangdong, China

Specifications

1.One HDMI1.3 input signal split to 2~16output.HDMI1.3 sink devices.
2.HDCP 1.2 protocol compliant.
3.Support 3d

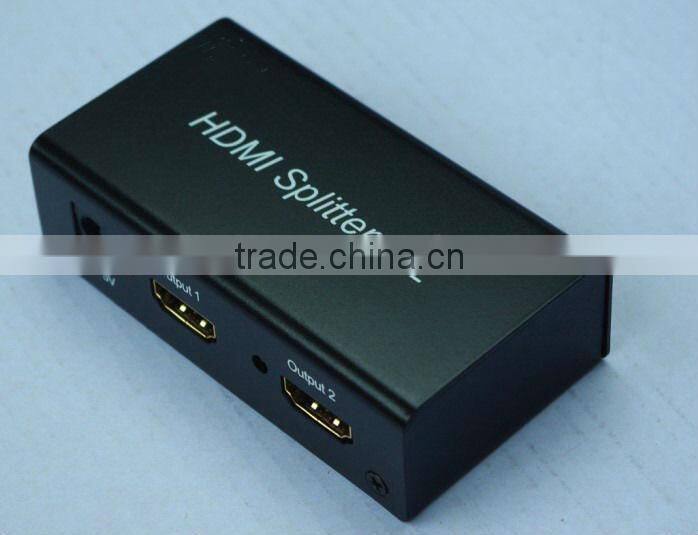

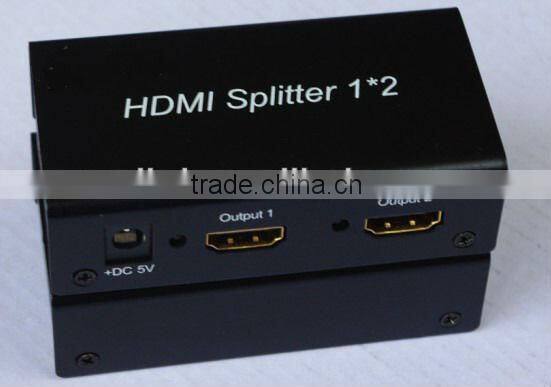

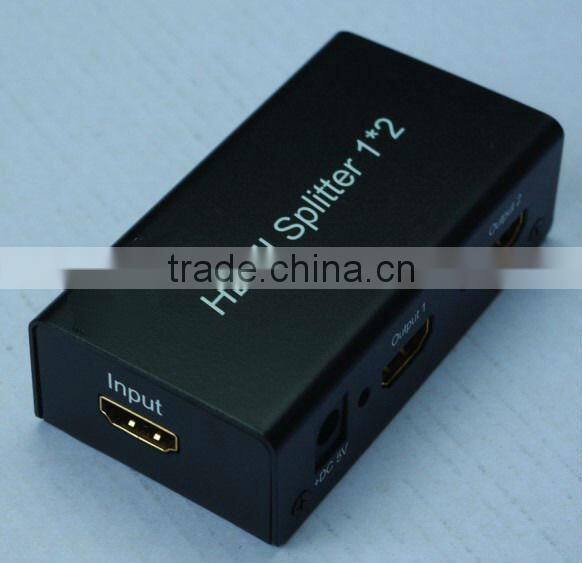

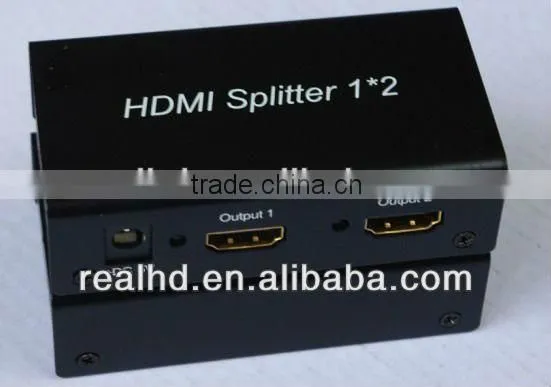

1x2 port HDMI Splitter 1.3

1.One HDMI1.3 input signal split to 2~16output.HDMI1.3 sink devices.

2.HDCP 1.2 protocol compliant.

3.Support deep color 30/36bit.

4.Support up to 1080p/60HZ.Support xv-YCC.

5.Digital audio format,DTS-HD/Dolby-True-HD/LPCM7.1/AC3/DTS/DSD.

6.Support HDMI signal retiming,cascaded above 3 layersin full-HD 1080p format.

7.Support input up to 15metres AWG26 HDMI1.3 standard cable length, output up to 25metres AWG26 cable length.

8.No loss of quality.

9.Installs in minutes.

10.Need DC5V power supply.

The 3D 2 port HDMI splitter with low price use a single HDMI source,accessing to multiple HDMI sinks.The Splitter allows one HDMI devices to be split easily to two HDMI compatible monitors or projectors. The Splitter can also be placed at the end of a long HDMI cable to regenerate the HDMI signal.

FEATURES

One HDMI 1.3b input signal split to two HDMI 1.3b sink devices

HDCP 1.2 protocol compliant

Support CEC

Support deep color 30bit, 36bit

Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC

Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

Support signal retiming

Support input up to 15metres AWG26 HDMI 1.3 standard cable length,output up to 25metres AWG26 cable length

No loss of quality

Installs in minutes

Need DC5V/1A power supply

SPECIFICATIONS: HDCP0102

HDMI Version	HDMI 1.3b
HDCP Version	HDCP1.2
HDMI resolution	24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support video color format	24bit/deep color 30bit,36bit
Support audio format	DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Max bandwidth	225MHz
Max baud rate	6.75Gbps
Input/Output TMDS signal	0.5~1.5Volts p-p(TTL)
Input/Output DDC signal	5Volts p-p (TTL)
Input cable distance	≤15m AWG26 HDMI 1.3 standard cable
Output cable distance	≤25m AWG26 HDMI 1.3 standard cable

Operating and Connecting

1.Connect one cable from HDMI source devices into HDMI Splitter input.

2.Connect one cable from each display (monitor or projector) into the HDMI Splitter outputs.

3.Connect 5V power supply to the HDMI 1x2 Splitter.

Before power on, pls check the connection line carefully. And make sure that all interfaces are normally connected. The common trouble shooting way shows below:

Serial NO	Trouble Description	Cause and Ways to deal with
1	Non-Power-Connencted	1, Check if the power adaptor head is truly and correctly inserted the power socket. 2,Check the power switch if it is in on status.
2	No Picture	1,Pls to make sure that the TV is on and has been connected with the machine,. 2,To check if the signal source is on and well connected. 3,Check the system connection quality. 4,Check if the line is all good quality. 5,Check the cable quality( to see if the cable is compliant with the HDMI V 1.3..
3	Obscure Picture	1,To try again to connect the cable to be free from the unsuccessful connection. 2,HDMI Cable Quality(HDMI Cable is compliant with the HDMI V1.3)
