v1.3 hdmi splitter 1x4 1 input 4 output support 3D full color 1080p 1cd TV

Specifications

Support 3D & 1080P
Support CEC
Support signal retiming
Support UL/CE/FCC

v1.3 hdmi splitter 1x4 1 input 4 output support 3D full color 1080p 1cd TV

 Description of v1.3 hdmi splitter 1x4 1 input 4 output support 3D full color 1080p 1cd TV:

This 1x4 HDMI Splitter 1.3 Version using a single HDMI source, accessing to multiple HDMI sinks. The HDMI Splitter allows one HDMI devices to be split easily to four HDMI compatible monitors or projectors. The HDMI Splitter can also be placed at the end of a long HDMI cable to regenerate the HDMI signal.



Features of v1.3 hdmi splitter 1x4 1 input 4 output support 3D full color 1080p 1cd TV:

1) One HDMI 1.3b input signal split to four HDMI 1.3b sink devices
2) HDCP 1.2 protocol compliant
3) Support 3D
4) Support CEC
5) Support deep color 30bit.
6) Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
7) Digital audio format: DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD
8) Support signal retiming
9) Support input up to 15metres AWG26 HDMI 1.3 standard cable length, output up to 25metres AWG26 cable length
10) No loss of quality
11) Installs in minutes
12) Need DC5V/1A power adapter



Specification of v1.3 hdmi splitter 1x4 1 input 4 output support 3D full color 1080p 1cd TV:

HDMI version…………………………………………….………….......………….. HDMI 1.3b

HDCP version……………………………………………………………….......……....HDCP1.2

HDMI resolution…....24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Video color format …………………………..………......….24bit/deep color 30bit

Audio format………...DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

Max bandwidth……………………………………………………………..…………..225MHz

Max baud rate……………….…….………………….………………………..……..6.75Gbps

Input/Output TMDS signal ………….……………………...… 0.5~1.5Volts p-p(TTL)

Input/Output DDC signal …………………………………………..…… 5Volts p-p (TTL)

Input cable distance..…... …………….≤15m AWG26 HDMI 1.3 standard cable

Output cable distance………………...≤25m AWG26 HDMI 1.3 standard cable

Max working current…………………………………………………...…………….....500mA

Power adapter Input: ……...AC (50HZ, 60HZ) :100V-240V; Output: DC5V/1A

Operating Temperature range……..…………….……………………… (-15 to +55°C)

Operating Humidity range………………………..5 to 90%RH (No Condensation)

Dimension (L x W x H) ……………………………….………….…………115x61x25 (mm)

Weight…..………………………………………………………..……..…..…………………190g

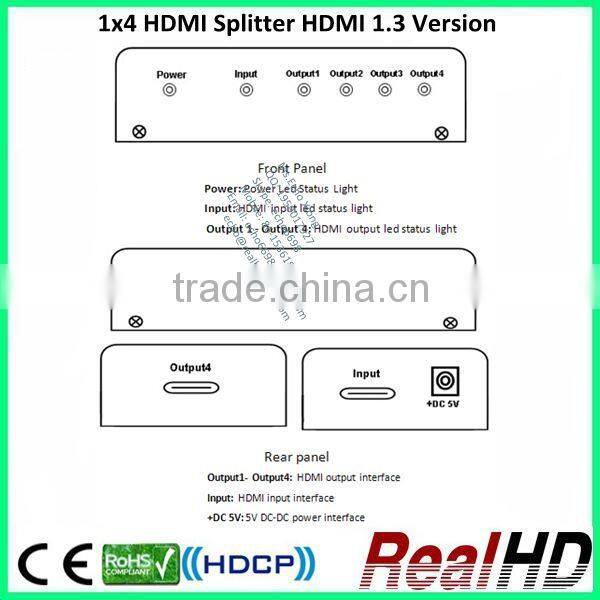

Panel desctiption of v1.3 hdmi splitter 1x4 1 input 4 output support 3D full color 1080p 1cd TV:

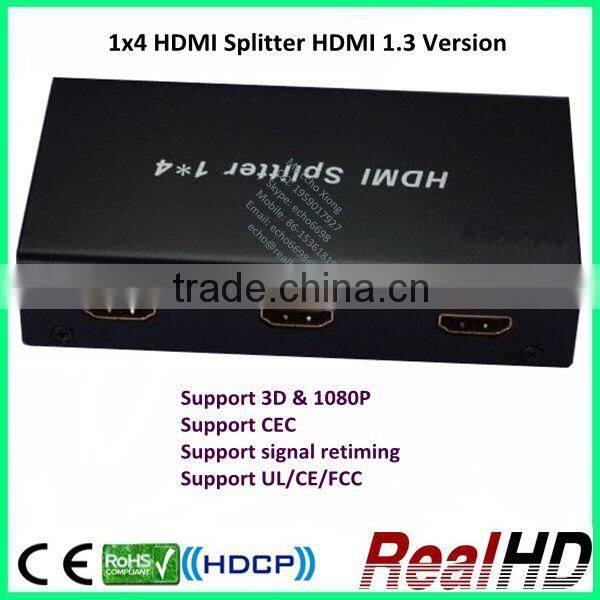

Pictures of v1.3 hdmi splitter 1x4 1 input 4 output support 3D full color 1080p 1cd TV:





Package of v1.3 hdmi splitter 1x4 1 input 4 output support 3D full color 1080p 1cd TV:

1 x HDMI 1.3 Version HDMI Splitter 1x4.

1 x 5V Power Adapter

1 x User Manual.
