2016 China Hottest 120m 1080p HDMI to SDI to HDMI Extender
1. Introduction of 2016 China Hottest 120m 1080p HDMI to SDI to HDMI Extender:
This 120m HDMI Extender over single Coax uses single 75Ω Coax Cable (such as RG-6U cable) to extend the HDTV display up to 120 meters (400 feet Max) for 1080p. It not only breaks the limitation of the HDMI cable transmission length,but also has more flexibility and convenience in cable construction.
This hdmi extender equipped with HDMI (high definition multimedia interface) connector and is capable of supporting DVI (digital visual interface) equipment when used with an HDMI to DVI Adapter, providing greater flexibility and options when integrating several home theater components.
Our hdmi products offer solutions for residential consumers: HDTV retail and show site, HDTV, STUB, DVD and Projector factories, noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
2. Specifications of 2016 China Hottest 120m 1080p HDMI to SDI to HDMI Extender:
Video amplifier bandwidth……………….…………………………………….. 3.4 GHz Max.
Video output................................................................... 1080P@24/60Hz
Color depth.........................................................................12 bit Max. res
Input TMDS signal….................................................................1.2 Volts P-P
Input DDC signal………………………………………………………….......…5 Volts P-P (TTL)
HDMI input/output connector……………………………………..…..HDMI type A 19Pin
Link Connector.......................................................................BNC Shielded
Power Adapter............................................................................ DC5V/1A
Operating temperature range……………………………………………….…-40°C to +70°C
Operating humidity range…………...............…... 5 to 90% RH (no condensation)
Shipping weight……………………………….......................…………......…..… 0.93 Kgs
Dimensions( L x W x H)…………………………....................………. 98.5 x 85 x 31mm
3. Features of 2016 China Hottest 120m 1080p HDMI to SDI to HDMI Extender:
1) Support 3D &1080p

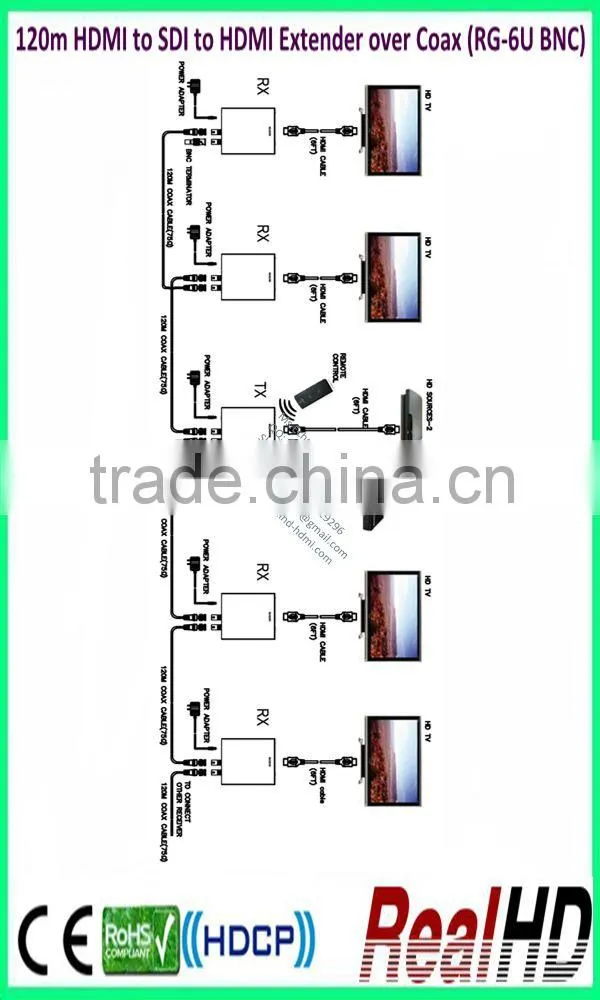

2) Support Cascade function in Transmitter and Receiver and easy to build a network system by installer.
2) Switch easily between two HDMI sources by Remote control.
3) One piece of 75Ω Coax. cable can substitute HDMI cable to achieve long distance transmission.
4) Transmission distance can be up to 120 meters (400 feet Max) for 1080p using RG-6U Cable.
5) Maintains highest HDMI single link video resolution 1080P@24Hz/60Hz.
6) Support digital video formats in Deep Color Mode at up to 12bits/color.
7) Support full HDMI audio and video.
8) Easy to install and simple to use.

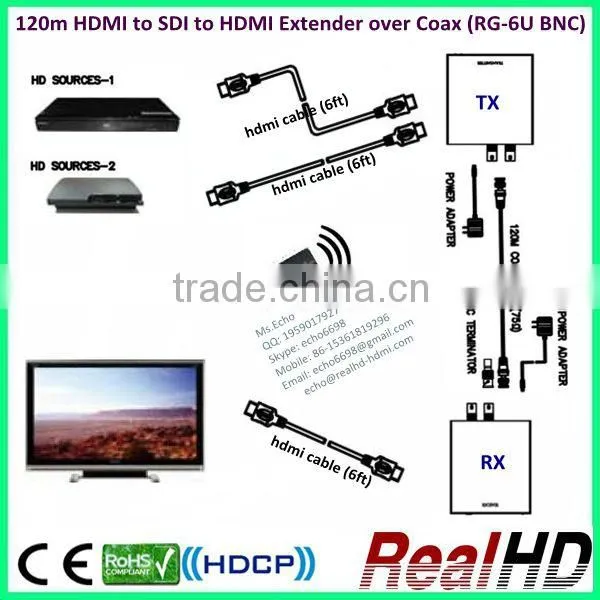

Connection diagrefer to connection diagram section.ne to one connection, a BNC terminator must be applied on the spare BNC of RX unit.
Packing:
1) Main unit (Transmitter and Receiver).
2) Remote control.
3) 75Ω BNC terminator.
4) 5V DC/1A Power Adapter.
5) User Manual.
Payment of HDMI Extender, HDMI Matrix, HDMI Splitter, HDMI Converter, HDMI Switch:
1) We could accept T/T and Western Union and Paypal Order. If you want other payment terms please let us know before you order.
2) Full payment should be made within 7 days after placing your order.
3) Make sure that you have completed all the detailed information like contact person, address, post code and telephone number when filling in your buyer's information.
Shipping of HDMI Extender, HDMI Matrix, HDMI Splitter, HDMI Converter, HDMI Switch:
1) UPS, DHL, Fedex and EMS, TNT are available.
2) The goods will be sent within 3 business days after the full payment has been confirmed. If payment is not available, your order will be closed automatically.
3) The products could be marked as "gifts" or "sample" for your easy custom clearances and less charge if you need. If you want to declare the goods as other item name, or specify an value for custom, please inform us when making the order.
Note: DHL/UPS/Fedex Express usually takes about 4-6 days to the destination, and about 5-8 work days by EMS or TNT. Hongkong Post Air Mail and Hongkong Post Air Parcel takes 7-30 days to ship to worldwide.
Pictures:
1. All products have proceeded aging test before shipping and we guarantee it's safety to use.
2. OEM and ODM are welcome, and could imprint your logo.
2. 3 years warranty for all products, and If not man-made problem, replace or repair are ok.
RealHD Established in 2009 by a group of rich experienced engineers, it is a professional manufacturer engaged in the research, development, production, sale and service of HDMI splitters, switchers, matrixes, converters, extenders and cables, our products are well saled in Europe, North America, Brazil, Australia.
