IP68 Modular patent design LED Street Light
| SN-FL4D TECHNICAL FEATURES | |
| LED Light Source | Phillips Lumileds Luxeon TX |
| Input Voltage | 100-277V AC |
| Total Watt | 30W 40W 50W 60W |
| Watt of LED module | 20W/30W/40W/50W |
| Warranty | 5years |
| Power Efficiency | 89% |
| Power Factor | 0.95 |
| Color Rendering Index | Ra>70 |
| Color Temperature | 3000K,4000k,5000k,5700k |
| Beam Angle | Batwing |
| Lamp Rated Luminous Efficiency | 100 lm/W ±5% |
| Total Harmonic Distortion | < 10% |
| Junction Temperature | <70° |
| Working Environment | minus 40℃ - plus 50℃ 10%~90%RH |
| LED Life Span | >50000hs |
| Body and Shell Materials | Aluminum Alloy |
| Surge Protection | 10KV |
| Installation Diameter | 32-35mm |
| IP rating | IP68 |

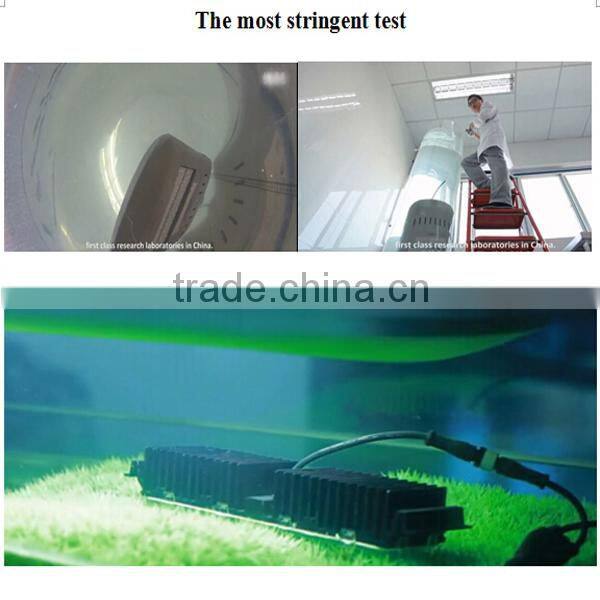

| Note | All data are true and tested by laboratory which are recognized by TUV in Germany. |
| SN-FL4D LED QUANTITIES(LED MODULES) | |||||
| Model(Module) | Power | LM/W | Lumens(lm) | Packing size(mm) | G.W(kg) |
| SNL4D | 20 | 100 | 2000 | 458*165*94 | 2.6 |
| 30 | 100 | 3000 | 458*165*94 | 2.6 | |
| 40 | 100 | 4000 | 458*165*94 | 2.6 | |
| 50 | 95 | 4750 | 458*165*94 | 2.6 | |
.Philips-Lumileds LEDs, flip chip technology, single unit’s damage won't affect others' normal work;
.Honeycomb briquette effect heat dissipation principle, best thermal management system;
.Designed to last at least 50,000 hours at L70;
.Multiple lighting distributions available;
.Wide power range: 30W~60W;
.Standard color temperatures: 3000K, 4000K, 5000K, 5700K;
.Minimum 70 CRI;
.IP68 modules: highest waterproof level, hot-pluggable, easy for installation and replacement;
.Aluminum housing;
.Multiple housing colors: black, white, grey, blue;
.Easy tool onsite maintenance and repair;
.5-year limited warranty.
Street lighting, parking lot lighting, roadway lighting, area lighting,path lighting,lighting retrofit,etc.
Payment Terms :T/T, L/C
Minimum Order :10PCS
Lead Time / Delivery Time :25 Day(s)
Sample Available :YES Ask For Sample
Delivery Details 15 days for small order within 500 sets and 25 working days for over 1000 pieces
FOB Port :Shanghai
Packing Info One set per CTN
Target Market(s) :Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
