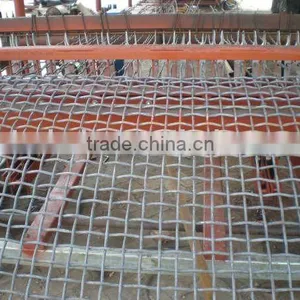

Crimped Wire Mesh

Crimped Wire Mesh thumbnail-1
Crimped Wire Mesh photo-1
US$ 10 - 30 MOQ: 1000 Square Meters
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
DAYU
Model Number:
YX
Contact Supplier Request Quote Chat Now
Anping Yuanxi Metal Products Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Brand Name DAYU
Model Number YX
Material Other, Low-Carbon Iron Wire, Low-Carbon Iron Wire
Type Other, crimped wire mesh
Application Construction Wire Mesh
Hole Shape Square
Aperture 21mesh,18mesh,16mesh and so on
Wire Gauge 1.6mm-16mm

Specifications

Crimped wire mesh is made of wire dia(1.6mm-16mm). Crimped wire mesh can be used for windows, verandas, partitions.

crimped wire mesh is made of wire dia(1.6mm-16mm). Crimped wire mesh can be used for windows, verandas, partitions, counter shelves. Crimped wire mesh has several industrial uses like heavy screening and sieving of coal mines etc.
In the pre-crimping process, wire is first formed (crimped) in precision machines using rotary dies that precisely define the spacing of the wires and insure that the wires will lock firmly together at the intersections. The pre-crimped wires are then assembled in custom designed screen assembly machines (looms).
Extra crimps between the intersections provide a more rigid weave and provide locking and tightness for light wires in relation to the large openings.
Accurate & Consistent Square & Rectangular. Opening from 3 / 8" to 4" with Wire Rods up to 20mm crimped wire mesh in Stainless Steel, Spring Steel, High Carbon High Tensile, G.I. & M.S. Wire etc.
Pre-crimped wire cloth has very accurate openings and is woven much tighter than plain weave. It is typically preferred for vibrating screens and many other applications in which sizing is critical.
crimped wire meshis usually used as barbecue grill wire netting, made of carbon iron wire, galvanized steel wire or stainless steel wire.
crimped wire mesh is woven after wire being crimped.

Standard mesh count per inch for crimped wire mesh:21 mesh/18 mesh/20 mesh/16 mesh/14 mesh/12 mesh:

Specification List of Crimped Wire Mesh :
Wire Diameter (mm) Aperture (mm) Mesh Length (M) Weight (Kg)
4.00 40 0.58 30 142
4.00 30 0.75 30 182
4.00 25 0.87 30 213
3.2 25 0.87 30 141
3.2 20 1.1 30 169
2.6 20 1.12 30 116
2.6 18 1.23 30 127
2.6 15 1.44 30 173
2.0 15 1.49 30 92
2.0 12 1.8 30 110
2.0 10 2.12 30 127
2.0 8 2.54 30 155
1.8 7 3 30 149
1.8 6 3.25 30 161
1.6 7 3 30 117
1.6 6 3.35 30 131
1.6 5 3.85 30 150
1.6 4 4.5 30 176
1.6 3 5.5 30 215
1.4 6 3.5 30 105
1.4 5 4 30 120
1.4 4 4.7 30 140
1.2 8 2.7 30 59
1.2 7 3.1 30 68
1.2 6 3.5 30 77
1.2 5 4 30 88
1.2 4 4.9 30 99
1.2 3 6 30 132
1.0 6 3.6 30 55
1.0 5 4.25 30 65
1.0 4 5 30 76
1.0 3.2 6 30 92
1.0 3 6.35 30 97
1.0 2.18 8 30 122
0.8 2.83 7 30 68
0.8 2.38 8 30 78
0.8 2.2 8.5 30 83
0.8 2 9 30 88
0.8 1.75 10 30 98
0.8 1.5 11 30 108
0.8 1.3 12 30 118
0.7 1.4 12 30 90
0.7 1.84 10 30 75
0.6 1.21 14 30 77
0.6 1.52 12 30 66
0.6 1.94 10 30 55
0.5 1.3 14 30 54
0.5 1.09 16 30 61
0.5 0.9 18 30 69
0.5 0.77 20 30 76
