Specifications
GabionRetaining Walls
Rock fall Protection
Bridges
Culverts Protection
Gabions Specification

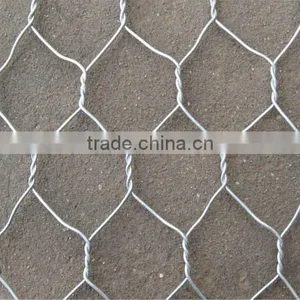

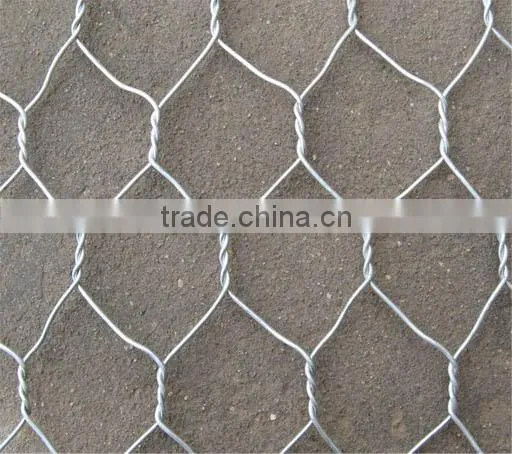

Gabions made from a hexagonal double twisted wire mesh, with a mesh type 8x10 and 8x12. The main wire diameter 2.5, 2.7 or 3.0 mm.
Specific situations allow also the instalation of prefilled gabionsCubirock, which are filled with stones and dynamicaly compacted to form of flexible structures.
For the reason of higher abrasion resistance and higher strength of front face of gabion baskets, was designed a new
type of Gabion SF (Strong Face), produced with mesh of diameter 3,9 mm on front and end parts.
The material: Heavily galvanized , PVC coated, Galfan coated
wire diameter Minimum weight of coating gm/m2
2.0mm 230
2.2mm 245
2.4mm 260
2.7mm 260
3.0mm 275
3.4mm 275
3.9mm 290
| Wire diameter | Mesh opening | Length | Width | Height | Diaphragms |
| 2.5mm 2.7mm 3.0mm |
80x100mm 80x120mm 100x120mm |
1 | 1 | 1 | 0 |
| 1.5 | 1 | 1 | 0 | ||
| 2 | 1 | 0.5 | 1 | ||
| 2 | 1 | 1 | 1 | ||
| 3 | 1 | 1 | 2 | ||
| 4 | 1 | 1 | 3 |
