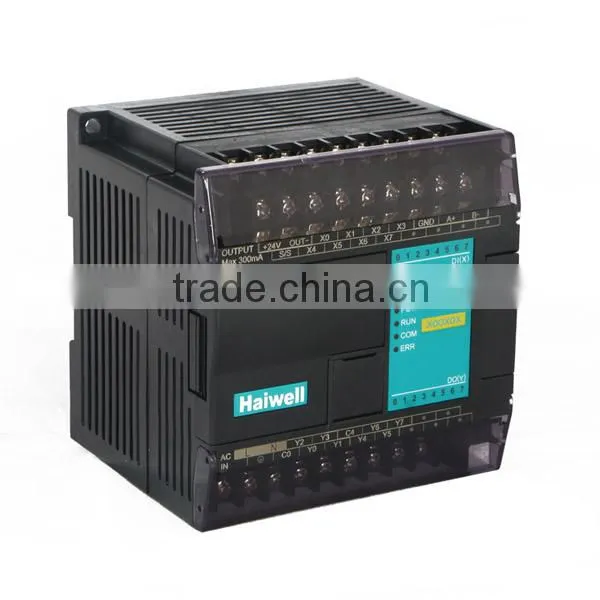

Haiwell T16S0R 16 Points PLC Controller for Air Compressor

Name: Haiwell T16S0R 16 Points PLC Controller for Air Compressor
Brand: Haiwell PLC
SKU: 104095529
Availability: InStock

Haiwell T16S0R 16 Points PLC Controller for Air Compressor thumbnail-1

Haiwell T16S0R 16 Points PLC Controller for Air Compressor photo-1

US$ 127 - 237 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Fujian, China

Brand Name:

Haiwell PLC

Model Number:

T16S0R

Contact Supplier Request Quote Chat Now

Xiamen Haiwell Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Xiamen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Fujian, China

Brand Name Haiwell PLC

Model Number T16S0R

Haiwell T16S0R 16 points PLC controller for air compressor

Haiwell PLC controller is a versatile high-performance programmable logic controller, which is widely used in plastics, packaging, textiles, food, medical, pharmaceutical, environmental, municipal, printing, building materials, elevators, central air conditioning, numerical control machine tools and other fields of systems and control equipment.

It is the first PLC controller (Programmable logic controller) designed with 100% built-in simulator from China.

Very easy to study and use!

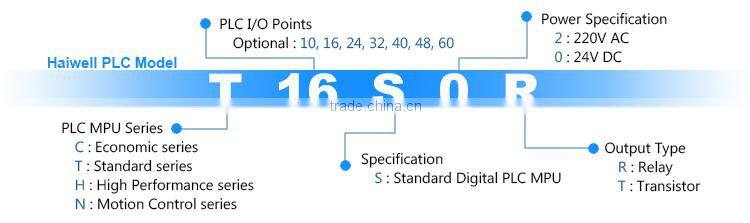

PLC Model Spec.

PLC Model	Power	DI	DO	Pulse input	Pulse output	Built-in COM Port	Extensible
T16S0R	24V DC	8	8 relay	2 Channels, 200Khz	/	1RS232+1RS485	7 expansions

Haiwell T16S0R standard PLC controller Terminal Wiring Diagram

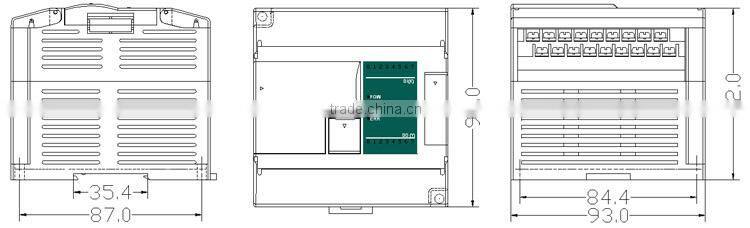

Haiwell T16S0R standard PLC controller Dimension

Haiwell PLC controller Technical Specification List

Item		Haiwell PLC Specification	Declare
Execution Speed		0.05us/basic instruction
Programming Language		LD - Ladder diagram, FBD - Function block diagram, IL - Instruction list	Accord with IEC 61131-3
Program Capacity		48K
Storage Way		Flash ROM permanent storage, dispense with backup battery
X	External Input	X0~X1023	Support edge catch and signal filtering set
Y	External Output	Y0~Y1023	Power-off preserve output can be configured
M	Auxiliary Relay	M0~ M12287	Power-off preserve area can be set freedom
M	Auxiliary Relay	(default power-off preserve) M1536~M2047	Power-off preserve area can be set freedom
T	Timer (Output Coil)	T0~T1023	Power-off preserve area can be set freedom, time base: 10ms, 100ms, 1s be set freedom, T252~T255 1ms
T	Timer (Output Coil)	(default power-off preserve) T96~T127
C	Counter (Output Coil)	C0~C255	Power-off preserve area can be set freedom
C	Counter (Output Coil)	(default power-off preserve) C64~C127	Power-off preserve area can be set freedom
S	Step State Bits	S0~S2047	Power-off preserve area can be set Freedom
S	Step State Bits	(default power-off preserve) S156~S255	Power-off preserve area can be set Freedom
SM	System State Bits	SM0~SM215
LM	Local Relay	LM~LM31
AI	Analog Input Register	AI0~AI255	Support quantities convert, sample times and zero point correct
AQ	Analog Output Register	AQ0~AQ255	Support quantities convert, power-off preserve output can be configured
V	Internal Data Register	V0~V14847	power-off preserve area can be set freedom
V	Internal Data Register	(default power-off preserve) V1000~V2047	power-off preserve area can be set freedom
TV	Timer (Current Value Register)	TV0~TV1023	Power-off preserve area can be set freedom, time base: 10ms, 100ms, 1s can be set freedom,T252~T255 1ms
TV	Timer (Current Value Register)	(default power-off preserve) TV96~TV127
CV	Counter (Current Value Register)	CV0~CV255	Power-off preserve area can be set freedom, CV48~CV79 are 32 bits, Other are 16 bits
CV	Counter (Current Value Register)	(default power-off preserve) CV64~CV127
SV	System Register	SV0~SV900
LV	Local Register	Lv0~Lv31
P	Indexed Addressing Point	P0~P9, use for indirect addressing
I	Interrupt	I1-I52
LBL	Label	255, use for program skip
Communication Port		MPU built-in 2 communication ports (RS232+RS485), Max 5 communication ports (RS232/RS485) extension	can be program or networking (master/slave)
Communication Protocol		Modbus RTU/ASCII protocol, freedom communication protocol, Haiwellbus speed communication protocol, Baud rate 1200~115200bps
PLC Network Capacity		PLC communication address can be set external set, Max 254. Supports 1: N, N: 1, N: N networking
Real Time Clock(RTC)		Display: year/month/day/hour/minute/second/week	built-in battery
Float Point Arithmetic Instruction		support within 32 bits float point arithmetic, integer/float point convert arithmetic
Password Protection		Support 3 levels password protect functions (program file password, program block password, PLC hardware password) and upload prohibited function

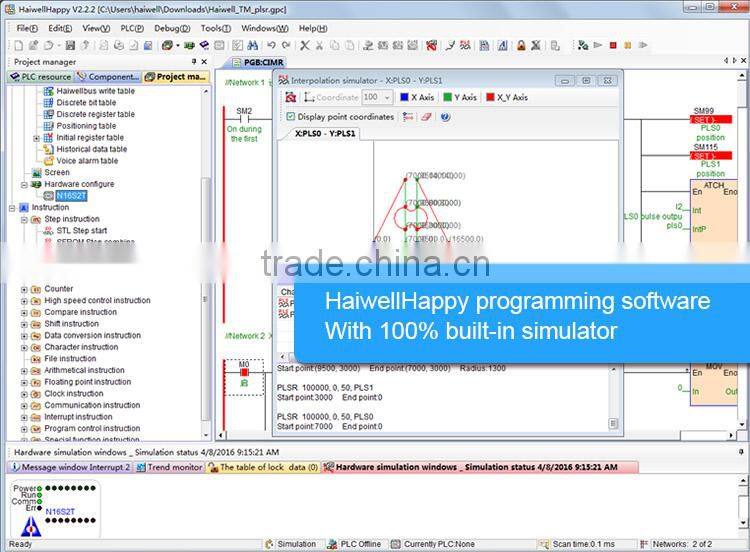

Programming Software

HaiwellHappy is a IEC 61131-3 standard programming software for Haiwell PLC products. It is most convenient PLC programming software for users. All neccessary instructions are highly intergrated, Very easy to study and use.

It supports 100% built-in simulator(Interpolation simulator, communication simulator and PLC hardware simulator). LD-Ladder Diagram, FBD-Function Block Diagram and IL-Instruction List 3 programming languages are supported.

Runing with Windows 98, Windows 2000, Windows XP and newer versions.

Totally free PLC software with all features.

PLC Advantages

Very easy to study and use
User-friendly IEC-61131 standard designed PLC controller
Built-in 10/16/24/32/40/48/60 IO points
Innovative facilitate instruction set
Very simple PID control
Remote I/O modules are supported by all PLC controller models
Motion control, linear and arc interpolation etc
Unique 100% simulation for interpolation, communication and hardware
Up to 8 groups AB signal high speed pulse inputs at 200khz
Up to 8 groups AB signal high speed pulse outputs at 200khz.
Support Modbus RTU/ASCCI Protocol, Freedom communication protocol and Haiwellbus Protocol
Analog input and output support engineering value conversion directly
Up to 5 communication ports and 7 expansion modules

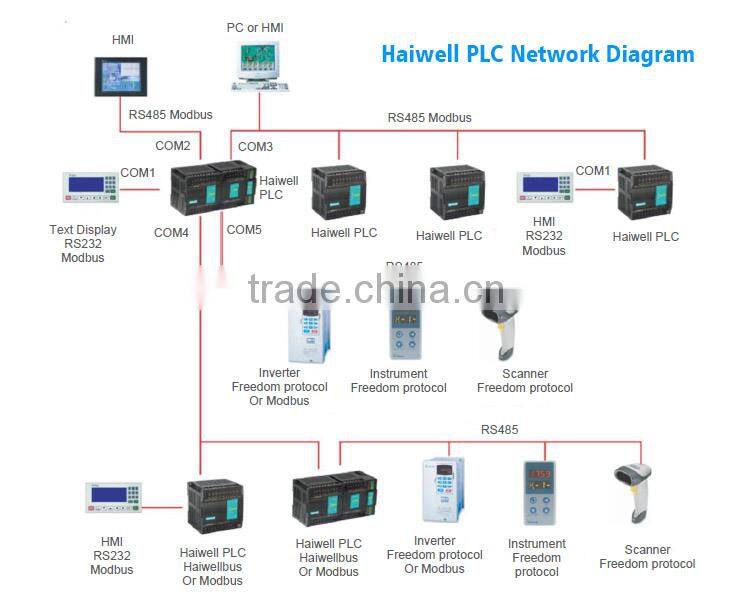

Powerful networking capability, 1:N/ N:1/ N:N networking are supported
Powerful intelligent gateway module with Ethernet function
OEM/ODM are supported, 100% IIPR reserved with national “ high-tech enterprise ” certification
