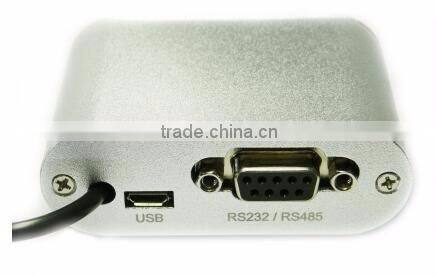

Haiwell PC2ZB PLC controller wireless Zigbee communication module
Haiwell PLC controller is the first programmable logic controller designed with 100% built-in simulator from China. Very easy to study and use. It is the best choice for small and medium PLC controller market. As compared to Siemens/Mitsubishi/AB etc, it is more cost-effective, very simple to study and use, equipped with all the necessary functions.
It is a versatile high-performance programmable logic controller, widely used in plastics, packaging, textiles, food, medical, pharmaceutical, environmental, municipal, printing, building materials, elevators, central air conditioning, numerical control machine tools and other fields of systems and control equipment etc.
The PC2ZB Zigbee communication module is a wireless communication module for the PC side. With this module, HaiwellHappy and other PC software can wirelessly operate the PLC which extended H01ZB wireless communication module .
PC2ZB Zigbee communication module specification list. PCRS232/USB to Zigbee module.
Item |
Specification |
Power supply |
USB port power supply(+5V) |
Environment temperature |
Operating temperature:0~+55℃ Storage temperature:-25~+70℃ Humidity: 5~95%RH, No condensation |
Operating Frequency |
2.4~2.5GHz |
Transmit Power |
+14dBm |
Receiver sensitivity |
-95dBm |
Allowed relay/routing Number |
Up to 6 by default |
Protocol conversion |
Zigbee<=>modbus |
Maximum communication rate |
38400bps |
The number of channels |
6 |
PANID range |
1~31 |
The largest network capacity |
65535 |
Reliable transmission distance |
150m(No hinder , linear distance) |
ZigBee protocol version |
ZigBee Pro |
Network type |
Mesh |
Node types |
The coordinator, routers |
Antenna type |
SMA antenna |
HaiwellHappy is a Free for download PLC controller software. Complied with IEC 61131-3 standard. It supports 100% built-in simulator, and LD-Ladder Diagram, FBD-Function Block Diagram and IL-Instruction List 3 programming languages.
Runing with Windows 98, Windows 2000, Windows XP and the newer versions.
Quality Guarantee
Haiwell PLC controller is in accordance with IEC-61131 international standard development, easy to study and use.
Independent Property Rights
100% independent intellectual property rights, OEM/ODM are supported.
100% Built-In PLC Simulator
First PLC controller with 100% built-in simulator with programming software, user can do programming without a PLC hardware
High Openness
Support 5 communication ports simultaneous working, may constitute N:N network for PLC applications
Communication Function
Support Modbus RTU/ASCII, Haiwellbus high speed protocol, freedom protocol
Distributed PLC IO function
Module with built-in communication port can be installed distributedly as a remote IO unit
All Haiwell PLC controller products support 24months warranty.
Shipment within 5 workdays after payment received.
