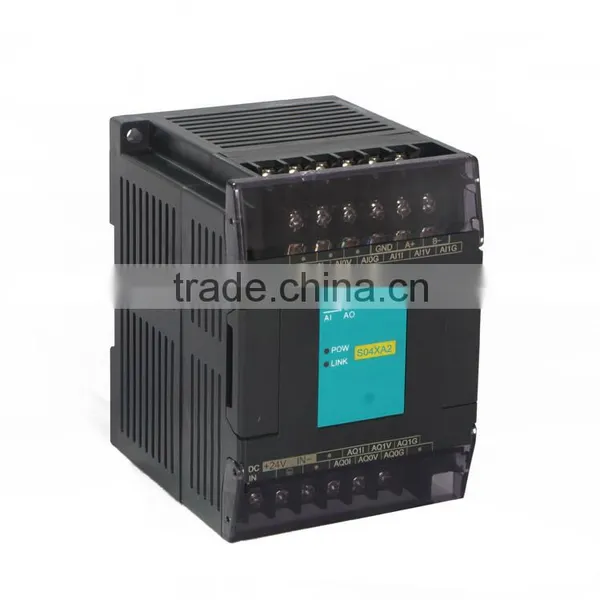

Haiwell S04XA2 PLC analog remote IO module for process automation control

PLC Model

Power

AI

AO

Conversion Accuracy

Communication

Haiwell series

S04XA2

220V AC

2

2

12bit

RS485, supports remote IO functions

Analog IO module

Item

Voltage Input

Current Input

RTD Input

Thermocouple Input

Input range

-10V~+10V

0V~+10V

0V~+5V

1V~+5V

0~20mA

4~20mA

Pt100, Pt1000, Cu50, Cu100

S, K, T, E, J, B, N, R, Wre3/25, Wre5/26, [0-20]mV, [0-50]mV, [0-100]mV

Resolution

5mV

2.5mV

1.25mV

1.25mV

5uA

5uA

0.1℃

0.1℃

Input impedance

6MΩ

250Ω

6MΩ

6MΩ

Max input range

±13V

±30mA

±5V

Input indication

LED light means normal , dark means break OFF

Response time

5ms/4 Channel

560ms/4 Channel ,880ms/8 Channel

Digital input range

12 bits, Code range: 0~32000(H series module 16 bits A/D convert)

16 bits, Code range: 0~32000

Precision

0.2% F.S

0.1% F.S

Power supply

MPU use internal power supply, Extension module use external power supply 24VDC ±10% 5VA

Isolation mode

Opto-electric isolation, Non-isolation between Channel ,between analog and digital is opto-electric isolation

Power consumption

24VDC ±20%,100mA(Max)

24VDC ±20%,50mA(Max)
