Help CenterCarbon Brush Type Voltage Regulator AVR 20KVA Three Pahse
Related Products
-
Intelligent AC Voltage Stabilizer Carbon Brush Type Three Phase AVR 30KVAUS$ 100 - 10,000MOQ: 10 Units -
Carbon Brush Type AC Intelligent Voltage Regulator AVR 60KVA Three PhaseUS$ 100 - 10,000MOQ: 10 Units
-
AVR Intelligent AC Voltage Stabilizer Three Phase Voltage Regulator 15KVAUS$ 100 - 10,000MOQ: 10 Units
-
AVR Intelligent AC Voltage Stabilizer Three Phase Voltage Regulator 45KVAUS$ 100 - 10,000MOQ: 10 Units
-
AVR Intelligent AC Voltage Stabilizer Three Phase Voltage Regulator 10KVAUS$ 100 - 10,000MOQ: 10 Units
Production introduction
AVR series single, three-phase intelligent voltage regulator is the use of advanced international technology. When the external power supply network voltage fluctuations or load changes caused the voltage fluctuations, it can automatically maintain the stability of output voltage. Comparing with other kinds of voltage regulators, it has the advantages of large capacity, high efficiency, no waveform distortion, voltage stability and so on.
Application
CNC automatic punching machine PCB automatic drilling machine program control system
precision wire cutting machine CNC numerical control machine safety alarm system
mirror EDM machine metal laser cutting machine SMT automatic component inserter exposure laser machine medical equipment imported printing machines
CNC die engraving machine precision circuit etching machine
precision color printing equipment chemical equipment
Related Parameter for intelligent AC voltage stabilizer
| Input voltage scope | ±15% (can be customized) |
| Output voltage scope | ±1% ~2% |
| Regulator accuracy | ±1% (1% ~2%can be customized) |
| Waveform distortion | < 0.1% |
| Environment temperature | -10℃~+40℃ |
| work efficiency | < 98% |
| Power factor | 80% |
| Noise | < 45db |
| Frequency | 50HZ/60HZ |
| Strain age | voltage stabilize speed less than 100ms,regulation speed more than 25V/0.1S |
| Over load ability | allow 1.2 times instantaneous current |
| Environment | No corrosive gas,no dust |
| Protection function | over-voltage,under-voltage,short phase,short power |
Specification for AVR series intelligent AC voltage stabilizer
| Model No. | Capacity | Output voltage | Iutput voltage | Output current | Dimenstion(L*W*H mm including wheel) | Weight(KG) |
| AVR-3010 | 10KVA | 380V±15% | 380V±(1-1.5%) | 15 | 500*380*480 | 40 |
| AVR-3015 | 15KVA | 380V±15% | 380V±(1-1.5%) | 23 | 700*360*600 | 78 |
| AVR-3020 | 20KVA | 380V±15% | 380V±(1-1.5%) | 30 | 700*360*600 | 90 |
| AVR-3030 | 30KVA | 380V±15% | 380V±(1-1.5%) | 46 | 700*360*600 | 100 |
| AVR-3045 | 45KVA | 380V±15% | 380V±(1-1.5%) | 68 | 700*400*660 | 130 |
| AVR-3060 | 60KVA | 380V±15% | 380V±(1-1.5%) | 91 | 700*440*700 | 140 |

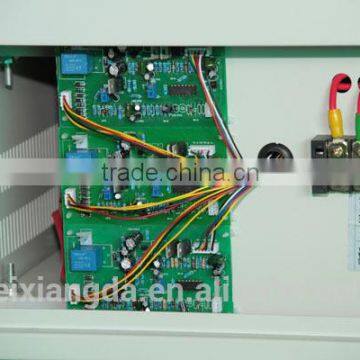

Products pictures
ShenZhen FeiXiangDa Electrical Co.,Ltd specialized in manufacturing and selling various power supply products including precise and energy-efficient voltage stabilizer, transformer, voltage regulator, variable frequency power, DC power and UPS power supply etc…
Our company is integrated with R&D, design, manufacturing, marketing, and service, and was introduced by ISO9001 quality standard and 3C certifying for multi-products, we are supplying reliable, energy-efficient products and guarantee to different scopes covering OEM factory, minerals, telecommunications , finance, government, energy, traffic, medical, military, education etc.
Our company is based on honesty, loyalty and credibility, we always offer overall solution with professional technique, precise equipments and perfect service.
Certifications
Our partner
We service most domestic and oversea famous customers of transformer and receive high reputation for many years.Our products widely used in the follow machines and service our customers:
You can send your inquiry to MS. Ivy Wu through below ways
M:+86-18923857949 T:+86-755-27525435
Skype:ivy.wu.1
Send Inquiry to This Supplier
