SVC High accuracy single phase voltage stabilizer 5KVA voltage regulator
Production introduction
SVC series single phase intelligent voltage regulator, which is composed of the contact type voltage regulator, servo motor, automatic control circuit, etc. It can automatically maintain the stability of output voltage when the voltage fluctuation is caused by the external power supply network voltage fluctuation or the load fluctuation. Which has the advantages of reliable performance, high efficiency, no waveform distortion, stable voltage regulation.
Application
computer TV air conditioning equipment color design system
stereo system Industrial automation equipment lighting system
medical equipment
Related Parameter for precision single phase voltage stabilizer
| Input voltage scope | ±15% (can be customized) |
| Output voltage scope | ±1% ~2% |
| Regulator accuracy | ±1% (1% ~2%can be customized) |
| Waveform distortion | <0.1% |
| Environment temperature | -10℃~+40℃ |
| work efficiency | >98% |
| Power factor | 80% |
| Noise | <45db |
| Frequency | 50HZ/60HZ |
| Strain age | voltage stabilize speed less than 100ms,regulation speed more than 25V/0.1S |
| Over load ability | allow 1.2 times instantaneous current |
| Environment | No corrosive gas,no dust |
| Protection function | over-voltage,under-voltage,short phase,short power |
Specification for precision single phase voltage stabilizer
| Model No. | Capacity | Output voltage | Iutput voltage | Dimenstion(L*W*H mm including wheel) | Weight(KG) |
| SVC-102 | 2KVA | 220V±15% | 220V | 240*260*200 | 16 |
| SVC-103 | 3KVA | 220V±15% | 220V | 290*230*230 | 22 |
| SVC-105 | 5KVA | 220V±15% | 220V | 320*230*270 | 28 |
| SVC-107 | 7KVA | 220V±15% | 220V | 430*240*380 | 45 |
| SVC-1010 | 10KVA | 220V±15% | 220V | 500*380*480 | 50 |
| SVC-1015 | 15KVA | 220V±15% | 220V | 500*380*480 | 60 |
| SVC-1020 | 20KVA | 220V±15% | 220V | 500*380*480 | 65 |

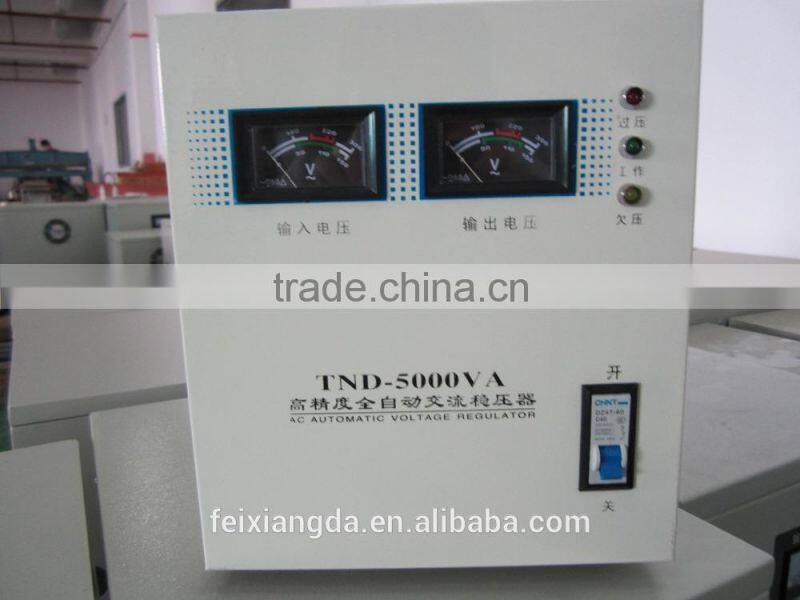

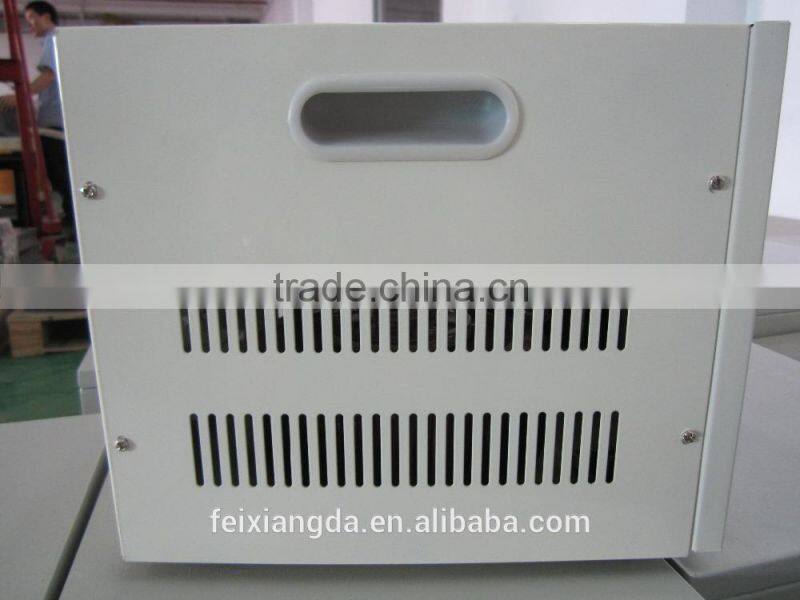

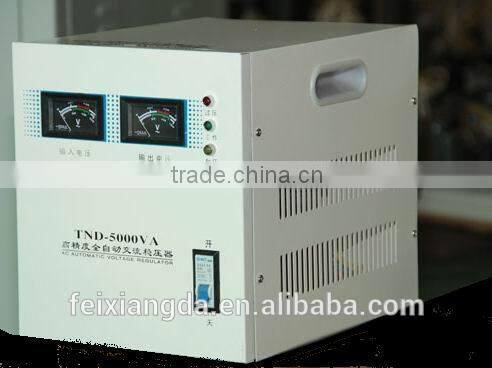

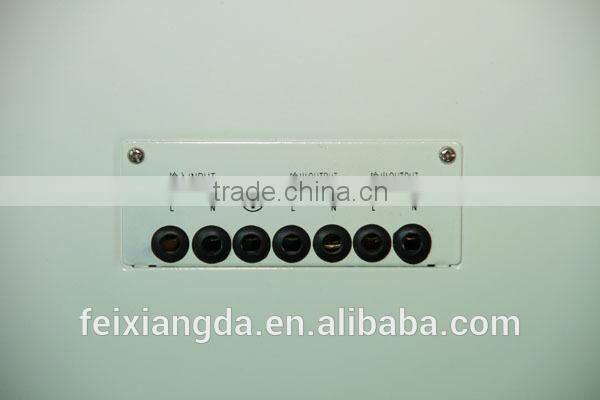

Products pictures
ShenZhen FeiXiangDa Electrical Co.,Ltd specialized in manufacturing and selling various power supply products including precise and energy-efficient voltage stabilizer, transformer, voltage regulator, variable frequency power, DC power and UPS power supply etc…
Our company is integrated with R&D, design, manufacturing, marketing, and service, and was introduced by ISO9001 quality standard and 3C certifying for multi-products, we are supplying reliable, energy-efficient products and guarantee to different scopes covering OEM factory, minerals, telecommunications , finance, government, energy, traffic, medical, military, education etc.
Our company is based on honesty, loyalty and credibility, we always offer overall solution with professional technique, precise equipments and perfect service.
