TK103-B gps rfid tracking systems by SMS and website software Quality Choice

Specifications

gps rfid tracking systems
1.Remote control vehicle engine
2.With SOS panic button
3.Door,sensor alarm
4.vehical GPS

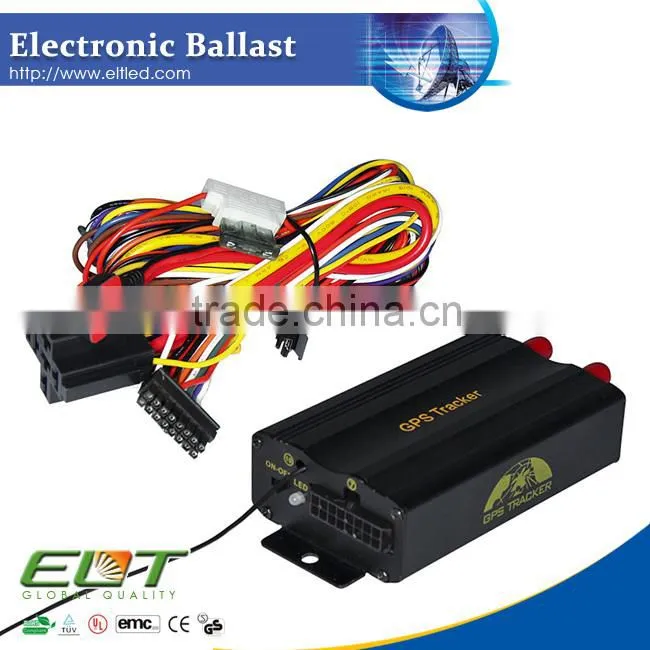

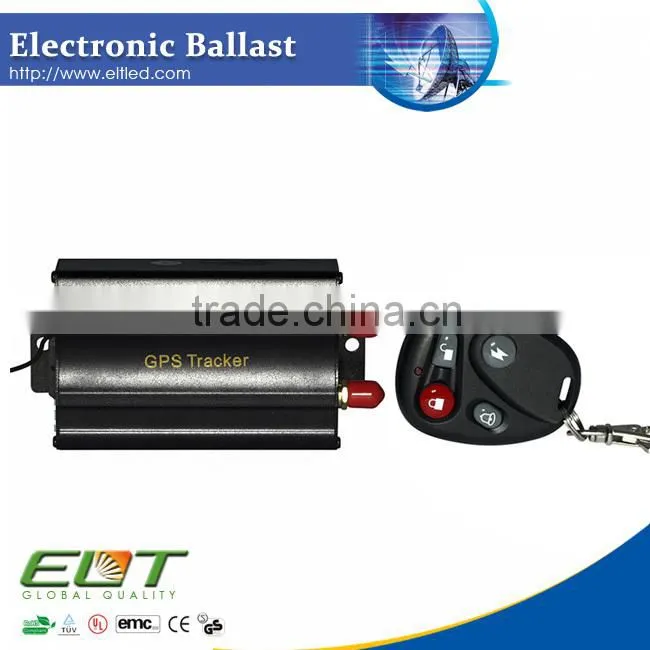

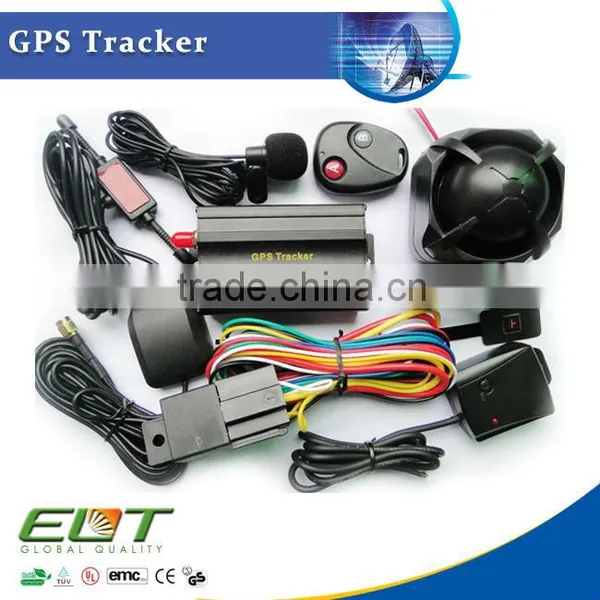

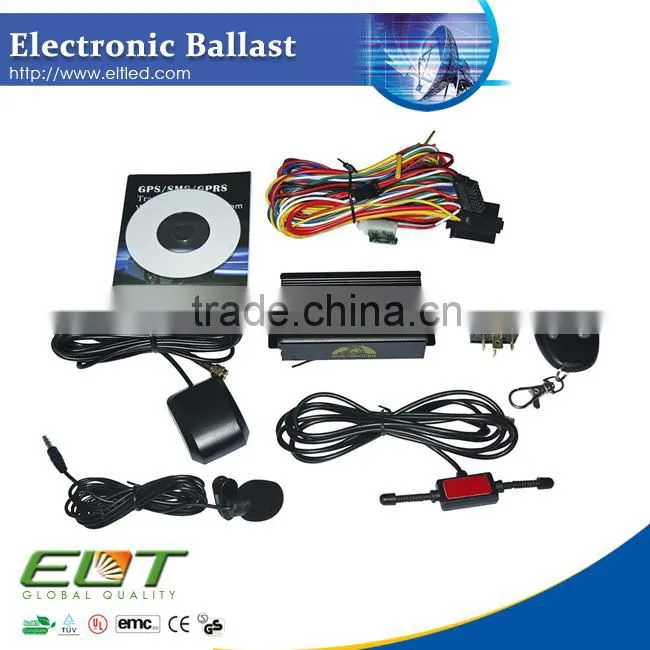

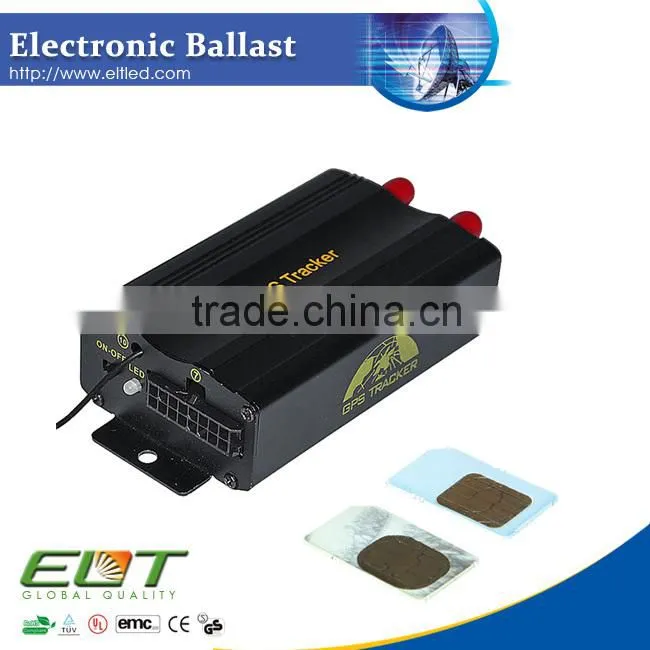

TK103-B gps rfid tracking systems by SMS and website software





1. For vehicle (12V-24V).

2. Location based service(LBS)+GPS double real time tracking solution,monitor

3. Dual simcard switch automatically

4. ARM & DISARM, LOCK / UNLOCK BY SMS

5. Remote shutdown vehicle engine and resume

6. Reset by SMS

7. Track upon time and distance intervals

8. GPS blind spot alert

9. Power save mode, less gprs traffic mode

10. Automatic update positions of vehicle turns

11. SOS,Geo fence, movement, overspeed, low battery and power off alert

12. Door alarm, ACC alarm,shock sensor alarm, fuel alarm

13. Configure parameters by USB

14. SMS tracking on cellphone with google maps link

15. Absolute street address by SMS

16. Free PC based tracking software

17. Web online tracking server

18.OEM order is acceptable.

--------------------------------------------------------------------------------------------





Model	TK103-B+
Product Name	gps rfid tracking systems
GPS Module	SiRF III 32 CHANNEL
Sensitivity	-157dBm
Accuracy	< 5m
GSM	850/900/1800/1900MHZ
Volt.	12-36V DC
Current	Normal mode: <20mA Power Save mode: <10mA
Cold Startup	< 33s
Warm Startup	< 3s
Working Temp	-40°C~+85°C
Water proof	IP63
GSM/GPRS module	Simcom Sim340 or Simcom Sim300
Car charger	12~24V input,5V output
Home charger	110-220V input,5V output

-------------------------------------------------------------------------------------------------







VEHICLE TRACKING DEVICE DETIALS



-------------------------------------------------------------------------------------------------

Our gps rfid tracking systems is high quality and  guaranteed





-------------------------------------------------------------------------------------------------

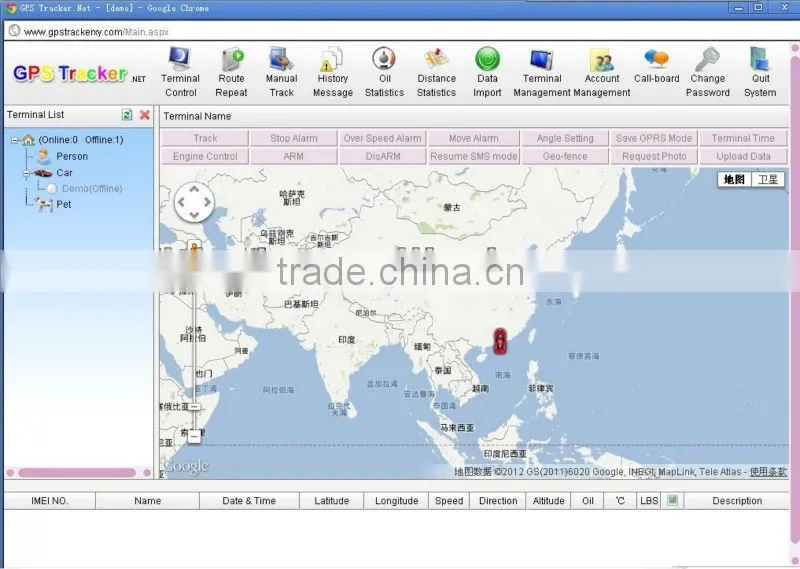

WEB BASED TRACKING



-------------------------------------------------------------------------------------------------



Our facory has specialized in gps rfid tracking systems sinc 2003,our customers are mostly from America, Europe, Australia, Japan, Korea, etc.



  -------------------------------------------------------------------------------------------------

WARRANTY POLICY:

We provide 12 months for warranty since the date of delivery from China.

  -------------------------------------------------------------------------------------------------------------------

LEADING TIME:

2-4 working days for sample; 15 working days for mass production. Pls confirm with our sales in time before placing order. Thanks in advance.

  -------------------------------------------------------------------------------------------------------------------

PAYMENT TERM:

30% should be paid as deposit against order confirmation; 70% should be paid as balance before delivery. All by T/T or Western Union.

  -------------------------------------------------------------------------------------------------------------------

MY FRIENDS, YOU ARE WELCOME TO INQUIRE ON OUR  gps rfid tracking systems  PRODUCT AND PRICES, AND ANY INQUIRY SHOULD BE REPLIED WITHIN 24 HOURS.
