Fiber Microscope
US$ 700 - 950
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
Grandway/F2H
Model Number:
FIM-5
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Shanghai, China
Brand Name
Grandway/F2H
Model Number
FIM-5
Description:

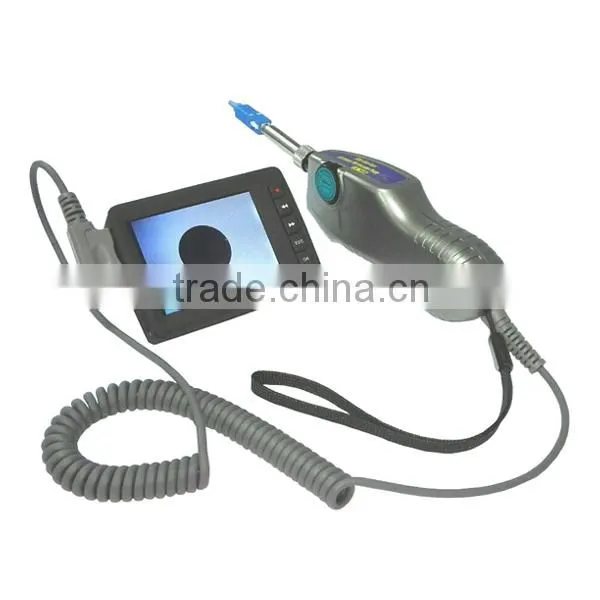

FIM-5 Fiber Microscope is used to inspect end-face of fiber optic connectors. It magnifies 125um fibers 400 times, enlarging picture through a video signal to the display where the status of fiber end-face is showed clearly.
Not only portable and easily in-hand, FIM-5 Fiber Microscope is also multi-functional. It can detect simplex and duplex fiber ends located in both male and female connectors. Also, working stably is it’s another feature. It eliminates the need to find solutions for hard-to-reach areas inspection, which can detect connectors even installed on the backside of patch panels or inside hardware devices, providing you a completely convenience for checking .
Features:
Fiber Microscope Probe:
FIM-5 Fiber Microscope is used to inspect end-face of fiber optic connectors. It magnifies 125um fibers 400 times, enlarging picture through a video signal to the display where the status of fiber end-face is showed clearly.
Not only portable and easily in-hand, FIM-5 Fiber Microscope is also multi-functional. It can detect simplex and duplex fiber ends located in both male and female connectors. Also, working stably is it’s another feature. It eliminates the need to find solutions for hard-to-reach areas inspection, which can detect connectors even installed on the backside of patch panels or inside hardware devices, providing you a completely convenience for checking .
Features:
Fiber Microscope Probe:
- Consistent alignment, simple to operate
- Unidirectional focusing, quick and accurate imaging.
- 400X magnification, clear image
- Small, light, and portable
- Changeable high capacity batteries
- Photo, video and record tested fiber
- Brightness and Contrast adjustable
| Fiber Microscope Probe: | |||
| Magnification | 400X | ||
| Resolution | <1μm | ||
| View of Field | X: 0.3165 Y: 0.285 |
||
| Focus Direction | unidirectional | ||
| Focus Speed | 2~6S | ||
| Alignment | >98% | ||
| Output Port | Dual pins AV port | ||
| Weight | 110g | ||
| Dimension | 180L*22W*56H (mm) | ||
| Display: | |||
| Screen Dimension | 2.7 inch / 960*240 | ||
| Enlarged Size | 22mm | ||
| Picture | Single-framed 640x480JPG | ||
| Timer | 5/15/30mins selections | ||
| Batteries | Li-ion1800mAh | ||
| Languages | English/Chinese/Russian | ||
| TF Storage | Support 32G | ||
| Input/Output Port | AV /USB2.0 | ||
| Weight | 85g | ||
| Dimension | 78L*22W*56H (mm) | ||
| Standard Accessories: | |||
| Name | Quantity | ||
| Fiber microscope probe | 1pc | ||
| 2.7 inch display | 1pc | ||
| SC-PC-F (For SC/PC adaptor) | 1pc | ||
| FC-PC-F (For FC/PC adaptor) | 1pc | ||
| LC-PC-F (For LC/PC adaptor) | 1pc | ||
| 2.5PC-M (For 2.5mm connectors, SC/PC, FC/PC, ST/PC) | 1pc | ||
| Li-ion batteries | 2pcs | ||
| Charger | 1pc | ||
| USB cable | 1pc | ||
| Earphone cable | 1pc | ||
| 8G TF Reader | 1pc | ||
| Soft case | 1pc | ||
| Optional Accessories: | |||
| Name | Quantity | ||
| ST-PC-F (For ST/PC adaptor) | 1pc | ||
| MU-PC-F (For MU/PC adaptor) | 1pc | ||
| E2000-PC-F (For E2000/PC adaptor) | 1pc | ||
| MTRJ-PC-F (For MTRJ/PC adaptor) | 1pc | ||
| 1.25PC-M (For 1.25mm connectors, LC/PC, MU/PC) | 1pc | ||
| SMA-M (For SMA/PC connector) | 1pc | ||
| FC-APC-F (For FC/APC adaptor) | 1pc | ||
| SC-APC-F (For SC/APC adaptor) | 1pc | ||
| LC-APC-F ((For LC/APC adaptor) | 1pc | ||
| E2000-APC-F ((For E2000/APC adaptor) | 1pc | ||
| 2.5APC-M (For 2.5mm connectors, SC/APC, FC/APC, ST/APC) | 1pc | ||
| 1.25APC-M ( (For 1.25mm connectors, LC/APC, MU/APC) | 1pc | ||
| MPO-PC-F (For MPO/PC adaptor); MPO-APC-F (For MPO/APC adaptor) |
1set | ||
| TIP60 (60 degree base for 60 degree tips) | 1pc | ||
| FC-PC-F60 (For FC/PC adaptor at 60 degree testing) | 1pc | ||
| SC-PC-F60 (For SC/PC adaptor at 60 degree testing) | 1pc | ||
| LC-PC-F60 (For LC/PC adaptor at 60 degree testing) | 1pc | ||
| LC-APC-F60 (For LC/APC adaptor at 60 degree testing) | 1pc | ||
| SC-APC-F60 (For SC/APC adaptor at 60 degree testing) | 1pc | ||
