ADSL2+ Tester
US$ 140 - 200
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
Grandway/F2H
Model Number:
ADSL2+
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Shanghai, China
Brand Name
Grandway/F2H
Model Number
ADSL2+
Description:

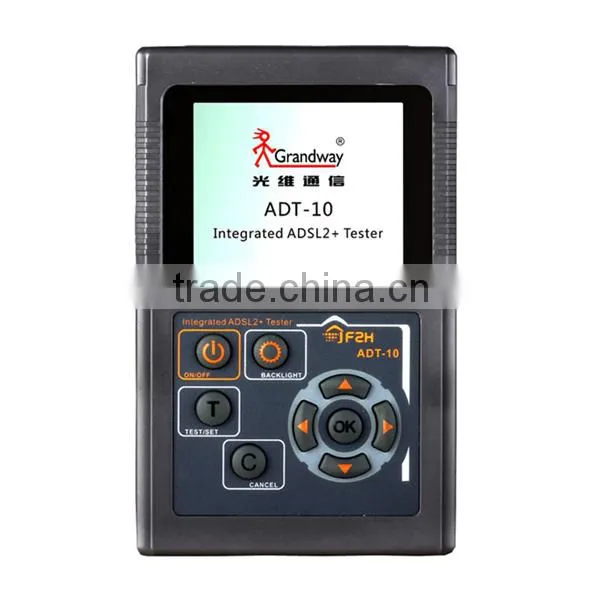

ADT-10 ADSL2+ Tester is one kind of handheld and large display meter for analyzing and testing ADSL2+. It enables engineers to verify the ADSL transmission parameters, proceed PING test, DMM and trouble-shooting. It is a wise choice to maintainers. This meter has excellent function of activate service validating and line fault solving.
Features:
1. Support multi-line standard
2. Suitable for testing ADSL, ADSL2+ and READSL
3. Rugged design, portable, 2.8 inch color LCD display
4. Programmable auto power-off function
5. User-friendly manual
6. Up to 99 results storage
7. Management software available for uploading testing
8. Result via RS232
Function:
1.Verification ADSL transmission parameters (up/down actual and max. Rates, attenuation, SNR margin, TX power, etc.)
2.Pass/fail indication and programmable thresholds
3.Graphical bit/tone display
4.Distance-to-short CRC, HEC, FEC, NCD, OCD bit error statistics
5.Default 8 groups of VPI and VCI
6.Modem Emulation (Replace the user’s ADSL Modem completely)
7.PPPoE dial
8.LAN Ping and WAN Ping
9.DMM test, including line length test
10.Uploading test results for analysis and process
Specifications:
ADT-10 ADSL2+ Tester is one kind of handheld and large display meter for analyzing and testing ADSL2+. It enables engineers to verify the ADSL transmission parameters, proceed PING test, DMM and trouble-shooting. It is a wise choice to maintainers. This meter has excellent function of activate service validating and line fault solving.
Features:
1. Support multi-line standard
2. Suitable for testing ADSL, ADSL2+ and READSL
3. Rugged design, portable, 2.8 inch color LCD display
4. Programmable auto power-off function
5. User-friendly manual
6. Up to 99 results storage
7. Management software available for uploading testing
8. Result via RS232
Function:
1.Verification ADSL transmission parameters (up/down actual and max. Rates, attenuation, SNR margin, TX power, etc.)
2.Pass/fail indication and programmable thresholds
3.Graphical bit/tone display
4.Distance-to-short CRC, HEC, FEC, NCD, OCD bit error statistics
5.Default 8 groups of VPI and VCI
6.Modem Emulation (Replace the user’s ADSL Modem completely)
7.PPPoE dial
8.LAN Ping and WAN Ping
9.DMM test, including line length test
10.Uploading test results for analysis and process
Specifications:
| Applied Standards | ITU G.992.1(G.dmt), ITU G.992.2 (G.lite), ITU G.994.1 (G.hs), ANSI T1.413 issue #2, ITU G.992.5 (ADSL2+)Annex L. Max range 6.5km, suitable for ADSL, ADSL2, READSL | |
| Max. Testing Distance | 6.5km | |
| Channel Rate | upstream: 0~1.2Mbps; downstream: 0~4Mbps | |
| Attenuation | 0~63.5dB | |
| SNR Margin | 0~32dB | |
| Voltage | DC: -110V~110V | tolerance: ±5%±2V |
| AC: 0~290V | tolerance: ±5%±2V | |
| Loop Resistance | 0~20KΩ | tolerance: ±3%±2Ω |
| Insulation Resistance | 0~1.0MΩ | tolerance: ±0.1MΩ |
| 1.0~50MΩ | tolerance: ±10%±0.5MΩ | |
| Capacitance | 0~10nF | tolerance: ±2nF |
| 10~1000nF | tolerance: ±3%±2nF | |
| Power Supply | AC/DC adapter, 2000mAH rechargeable lithium battery | |
| Working Temperature | -30℃ to +55℃ | |
| Storage Temperature | -30℃ to +60℃ | |
| Working Humidity | 5% to 95% | |
| Dimension | 201×92×36mm | |
| Weight | 460g | |
| Standard Accessories: | ||
| AC/DC adapter, batteries, crocodile clip telephone testing cable, ADSL protocol testing cable, ADSL network cable, CD disk, user manual, test report | ||
| Optional Accessories: | ||
| carrying bag, shocking proof jacket | ||
