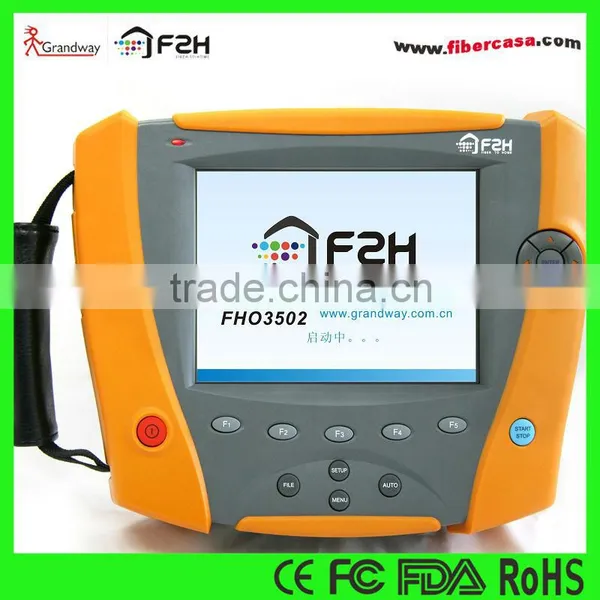

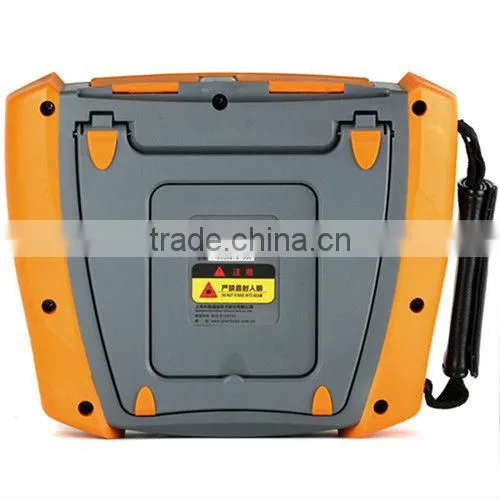

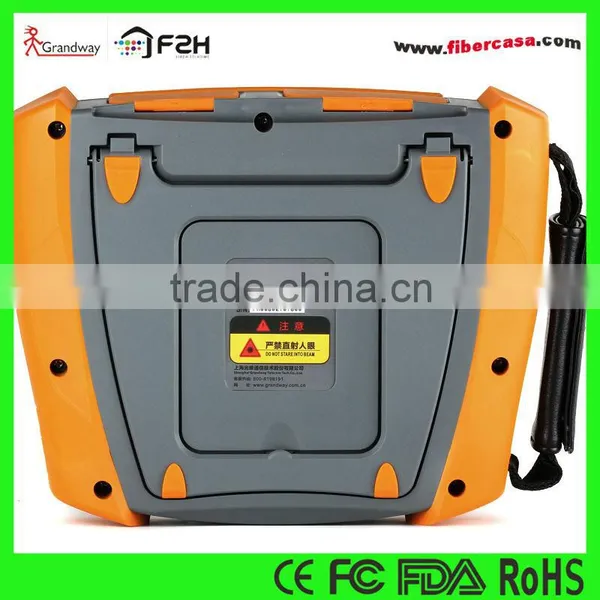

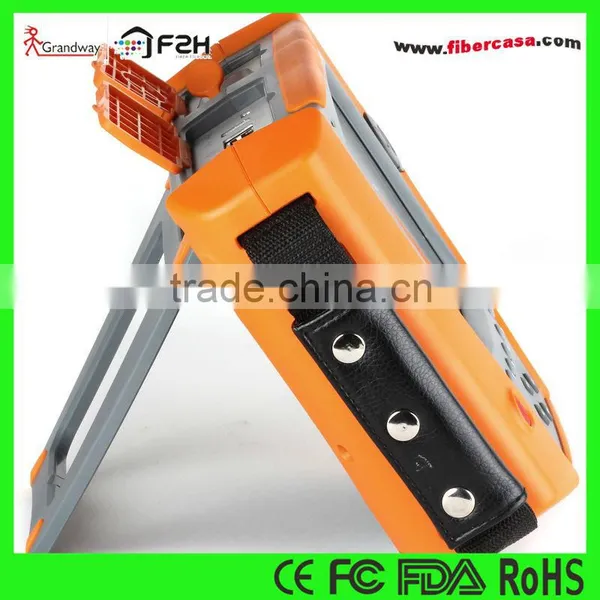

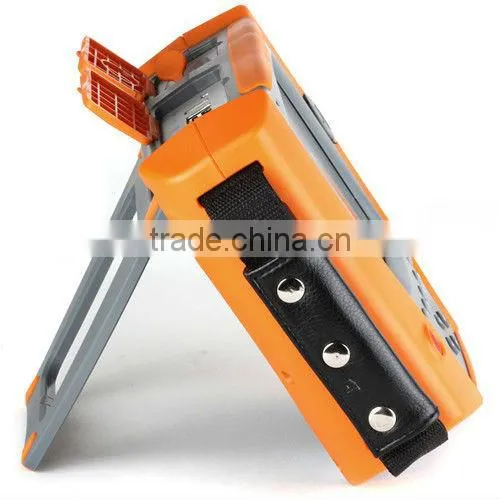

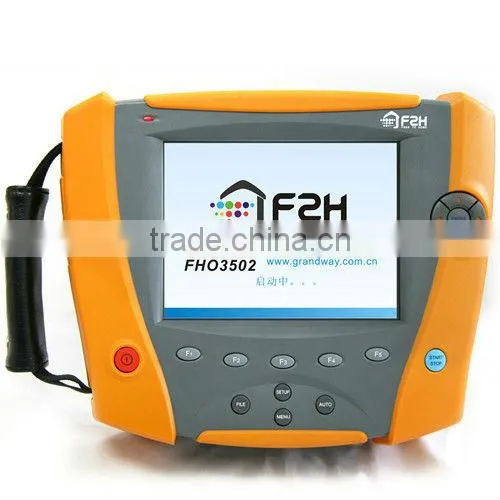

Grandway FHO3502 OTDR Machine
General Description:
FHO 3502 is a protable ODTR machine which is integrated with features of multi-function, high precision, compact structure and etc. Compared to other protable otdr, the performance of this OTDR is also very advanced. FHO 3502 can be applied to the construction of optical network, traditional optical network accessing, maintenance and fault locating of a optical network. And the performance of it will be satisfied to users.
Features:
♦ High precision—min blind zone is below 3m
♦ Fast operation speed —min testing time can be set to 10s. The operation time of testing for 100km optical line is just several decade seconds
♦ Easy to use—button operation, intelligent analyse
♦ Compact design and protable— shock-proof, dirt-proof, moisture-proof, integrated with 6.4' TFT screen, 8h8hours operation time
♦ Networking —data sharing and remote control is available though internet
♦ Lower cost
Specifications:
Fiber type |
SMF 9/125µm |
Output wavelength |
1310±20nm / 1550±20nm |
Dynamic range |
35/33dB |
Pulse width |
5ns~20µs |
Event blind zone |
3m |
Attenuation blind zone |
10m |
Sampling point counts |
64000 |
Testing distance |
5m~200km |
Distance resolution |
0.1m |
Distance precision |
±(0.5m+sampling resolution+1×10-5distance) |
Loss resolution |
0.001dB |
Loss threshold |
Min 0.01dB |
Monitor type |
6.4" TFT colored screen |
Optical adaptor |
FC/PC SC/PC |

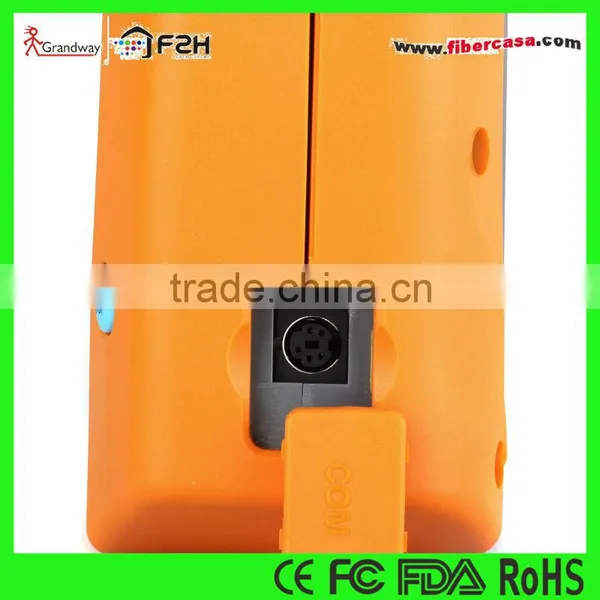

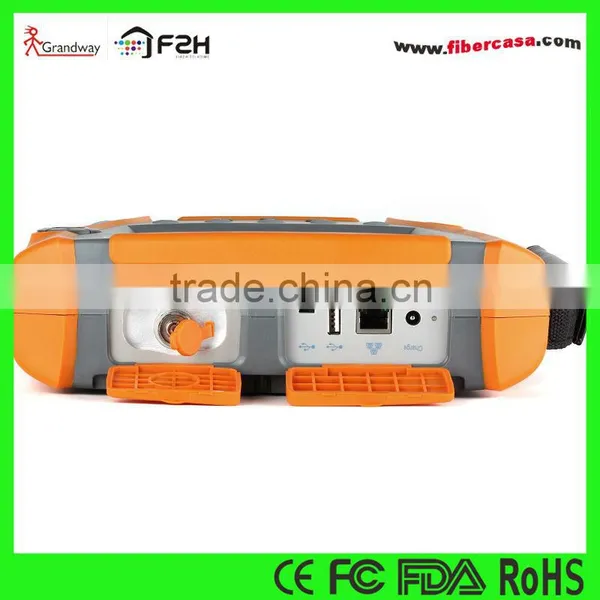

External interface |
USB,SD,RJ45 |
Battery |
Build-in rechargeable li-battery,charging time <4h,operation time>8h |
Power |
AC/DC adaptor,input AC90~240V±10%,output18V |
Dimension |
248×201×75mm |
Weight |
2.5kg |
Accessories |
FC/PC adaptor,SC/PC adaptor,PC disc,user manual,soft bag |
