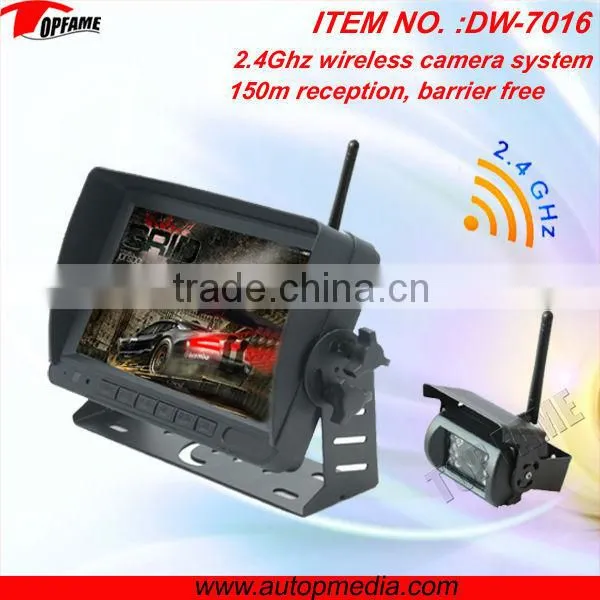

DW-7016 wireless bluetooth parking camera system backup camera with strong signal, provide stable, secure, confidential signal

Specifications

DW-7016 wireless bluetooth parking camera system backup camera with strong signal, provide stable, secure, confidential signal

DW-7016 2.4Ghz DIGITAL SIGNAL wireless camera system with digital screen & HD CCD camera, ideal for reversing, monitoring office, home, shop, etc.

Simple Feature:

Very stable signal, bigger range signal

Wireless rear view system for truck/vans/buses/etc.
7inch monitor with wireless receiver built in
High resolution camera with wireless transmitter built in

150M transmission&reception barrier free

7" Wireless rear view digital screen monitor
Built in wireless 2.4GHz VIDEO Receiver, 150M reception open air

Frequency: 2400~2483.5MHz.
Wireless AUDIO optional
Ratio: 16:9 /4:3
Pixel: 800*480 (480x234 optional)
Video input: 1 way digital signal wireless reception
View angle: U/D/L/R
Power supply: DC12V, 11-32V optional
Operating temp.:-10°C ~ 60°C
Device size:171*125*19mm(W/H/D)
weight: 550g

Wireless Camera Spec
Wireless camera with built in 2.4GHz VIDEO Transmitter

150m transmission open air
Wireless AUDIO optional
ImageSensors: 1/3", 1/4" CCD camera optional
TV System:PAL / NTSC
waterproof rate:Ip67
Effective Pixels:512 x 582 pixels / 512 x 492 pixels
Resolution:420TV lines
Minimum Illumination:0.2Lux / F1.2 (0Lux IR ON)
Pin Lens:f=2.8mm / F = 1.8
Lens Angle:120/170°
Power Supply:DC12V, DC 11-32V optional
Current Consumption:≤300mA

Packaging included:
7" wireless LCD monitor x 1
wireless HD CCD camera x 1
with wireless audio optional

with 1way, 2way, 4 way wireless optional

with in built QUAD optional

with in built AV recording optional

Support SD recording 64G max
