Specifications

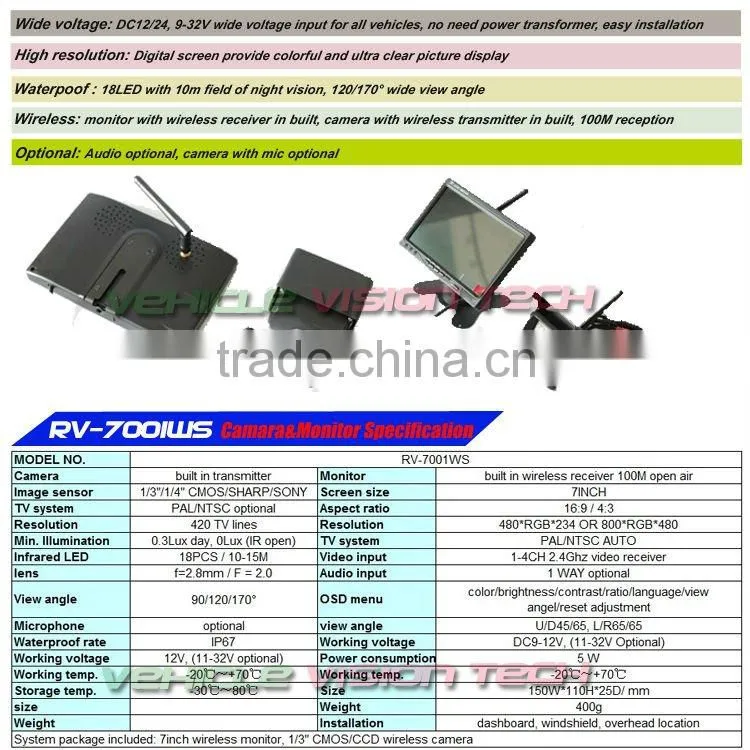

RV-7001WS car wireless camera7inch monitor with wireless video receiver
14" CMOS camera with wireless
RV-7001WS car wireless camera kit with 7inch TFT LCD screen & wireless CMOS camera
Simple Feature:

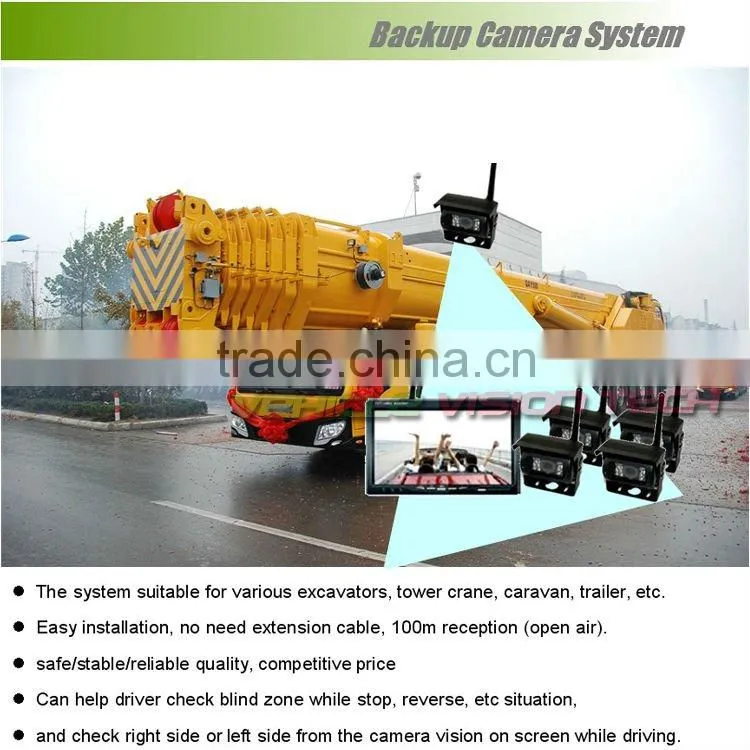

Wireless rear view system for truck/vans/buses/etc.
7inch monitor with wireless receiver built in
High resolution camera with wireless transmitter built in
With 20m cable included optional
7" Wireless rear view digital screen monitor
Built in wireless 2.4GHz VIDEO Receiver
Wireless AUDIO optional
Ratio: 16:9 /4:3
Pixel: 800*480
Video input: 2 way
Backup: V2 auto reverse
View angle: U/D/L/R
Power supply: DC12V, 11-32V optional
Current: 0.7A
Luminance: 300-400/m2
Operating temp.:-10°C ~ 60°C
Device size:171*125*19mm(W/H/D)
weight: 550g
Installation: (stand bracket, Air-container Vent, headrest, Z-clip optional)
Wireless Camera Spec:
Wireless camera with built in 2.4GHz VIDEO Transmitter
Wireless AUDIO optional
ImageSensors: 1/3", 1/4" CMOS/CCD camera optional
TV System:PAL / NTSC
waterproof rate:Ip67
Effective Pixels:512 x 582 pixels / 512 x 492 pixels
752x582 pixels / 768×494 pixels
Resolution:420TV lines
Minimum Illumination:1.0Lux / F1.2 0.2Lux / F1.2 (0Lux IR ON)
Pin Lens:f=2.8mm / F = 2.0
Lens Angle:120°
Vertical Sync. Frequency:50Hz / 60Hz
Video Output:1.0vp-p, 75Ohm
Power Supply:DC12V, DC 11-32V optional
Current Consumption: ≤ 300mA

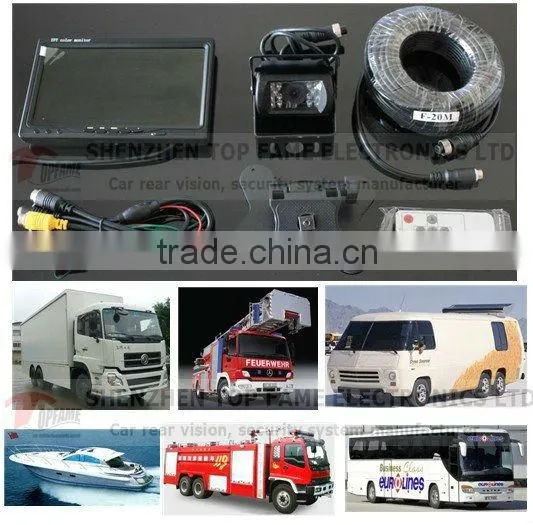

Packaging included:
7inch monitor x 1
Stand bracket x 1
1/4" sharp CCD camera x 1
20m water resistant cable as alternative optional
Product Display:
