Specifications
car wireless camera kit7inch monitor with wireless video receiver
CMOS/CCD wireless cam

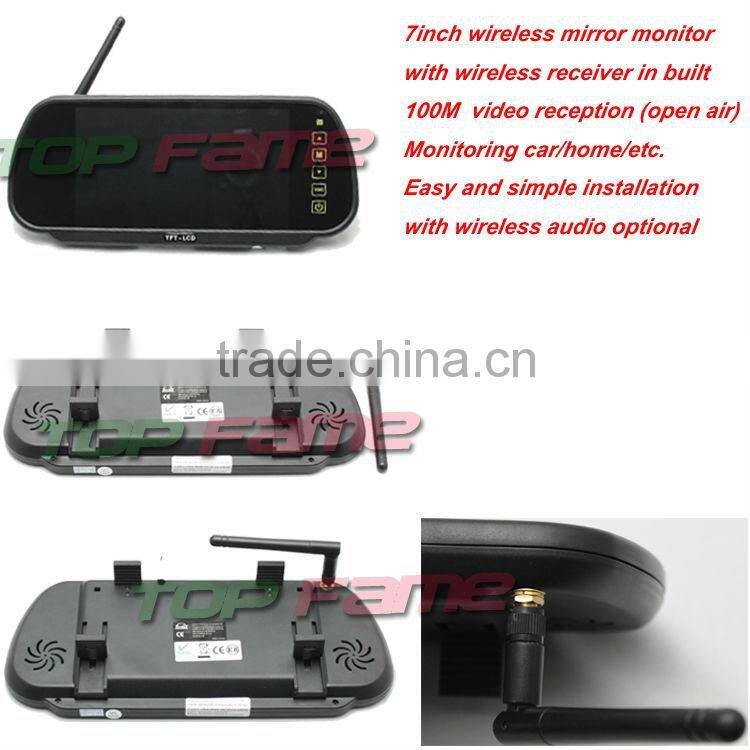

RV-700WS-1 7inch car wireless reversing camera with rearview mirror & CCD/CMOS camera
Simple Feature:
Wireless rear view system for truck/vans/buses/etc.
7inch monitor with wireless receiver built in
High resolution camera with wireless transmitter built in
100m wireless transmission & reception (open air )
7" Wireless rear view digital screen monitor
Built in wireless 2.4GHz VIDEO Receiver
Wireless AUDIO optional
Ratio: 16:9 /4:3
Pixel: 800*480
Video input: 2 way
Backup: V2 auto reverse
View angle: U/D/L/R
Power supply: DC12V, 11-32V optional
Current: 0.7A
Luminance: 300-400/m2
Operating temp.:-10°C ~ 60°C
Device size:171*125*19mm(W/H/D)
weight: 550g

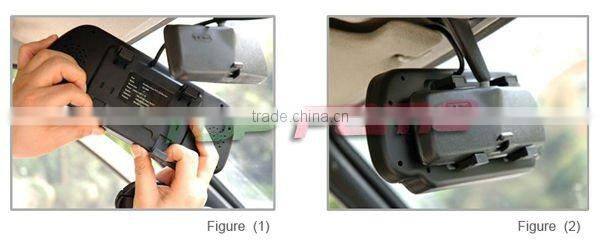

Installation:clip on existing mirror
Wireless Camera Spec
Wireless camera with built in 2.4GHz VIDEO Transmitter
Wireless AUDIO optional
ImageSensors: 1/3", 1/4" CMOS/CCD camera optional
TV System:PAL / NTSC
waterproof rate:Ip67
Effective Pixels:512 x 582 pixels / 512 x 492 pixels
752x582 pixels / 768×494 pixels
Resolution:420TV lines
Minimum Illumination:1.0Lux / F1.2 0.2Lux / F1.2 (0Lux IR ON)
Pin Lens:f=2.8mm / F = 2.0
Lens Angle:120°
Vertical Sync. Frequency:50Hz / 60Hz
Video Output:1.0vp-p, 75Ohm
Power Supply:DC12V, DC 11-32V optional
Current Consumption: ≤ 300mA
Packaging included:
7inch monitor x 1
Stand bracket x 1
1/4" sharp CCD camera x 1
20m water resistant cable as alternative optional
