Specifications
camera reversing system7 inch rear view monitor
Back Camera with 120 view angle and night vision

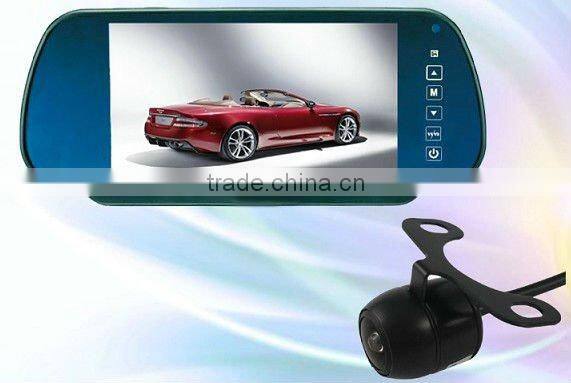

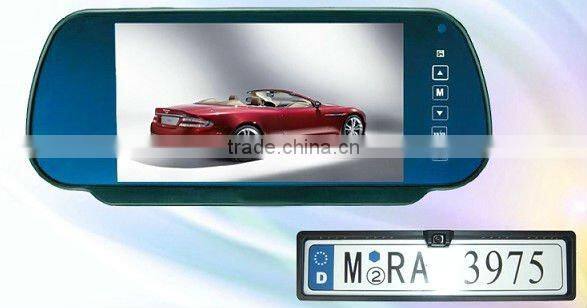

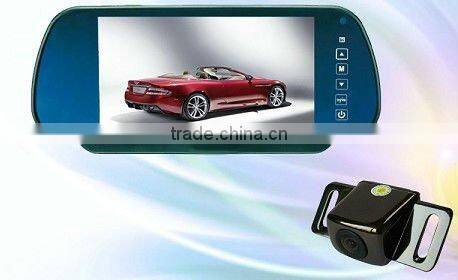

RV-7016 Rear view camera system with 7inch LCD monitor
Monitor
7inch rearview monitor with touch button
Screen: (16:9/(4:3)
Resolution degree:480(W)xRGBx234(H)
PAL/NTSC compatible
Dual video input(V1/V2)
Can be connected with camera for safer parking
Rearview image auto display
Full function remote control
Power supply : DC12V
Operating temperature:-10oC~60oC
Camera
Image Sensors: OV7950/KR1030
TV System:NTSC
waterproof rate:Ip67
Effective Pixels:656×492 pixels
Resolution:420TV lines
Minimum Illumination:1.0Lux / F1.2
Pin Lens:f=1.8mm / F = 2.0
Lens Angle:170°
Vertical Sync. Frequency:60Hz
Video Output:1.0vp-p, 75Ohm
Power Supply:DC12V
Current Consumption:≤120mA
Electronic Shutter:1/60 ~ 1/10,000 Seconds
Gamma Consumption:0.45
S/N Ratio:Better than 48Db
Scanning System:2:1Interlace
Operating Temperature:-20°C~70°C ,RH95% MAX
Storage Temperature:-40°C~85°C ,RH95% MAX
Dimension:12x27X26mm
Weight:50g
