RV-7009v car reversing system with 7 inch TFTmonitor and night vision HD camear

Specifications

RV-7009v rear view system for car
7inch TFT LCD monitor with LED backlight
HD camera with night vision
Waterproof connection

RV-7009v professional rear view system ideal forvarious vehicles with 7inch car lcd monitor, CCD camera



7" TFT LCD monitor with  U-bracket, sunshade

Ratio: 16:9 /4:3

Pixel: 480*234/800*480

System: PAL/NTSC auto switch

Video input: 2 way

Audio input: 1 way optional

Backup: V2 auto reverse

View angle: U/D/L/R

Adjustable image brightness/color/contrast

Power supply: DC11-32V

Current: 0.7A

Luminance: 300-400/m2

Operating temp.:-10°C ~ 60°C

With remote control and OSD menu

Installation: dashboard, windshield, roofmount



Backup Camera

Image device: CMOS PC1030/Sharp CCD

Lens angle: 120/170°

Resolution: 420 TV lines

TV system:PAL/NTSC

Effective pixels:  512 x 582 pixels / 512 x 492 pixels

Waterproof: IP67

Selectable parking line display

Minimum Illumination:0.2Lux / F1.2 (0Lux IR ON)

Operation voltage: DC 11-32V

Pin Lens:f=2.8/2.5mm

Current Consumption:≤300mA

Image: mirror/standard selectable

Operation temperature:-20°C - 75°C,RH 95% MAX

Waterproof,shockproof, resistance to temp.&humidity



Packaging included:
7inch DIGITAL LCD monitor x 1
1/4" CCD Camera x 1
20m Aviation cable x 1
10m, 15m, 20m extension cable optional
With microphone optional

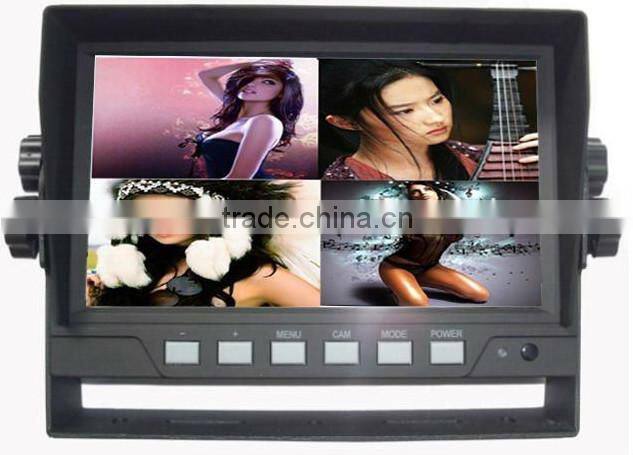

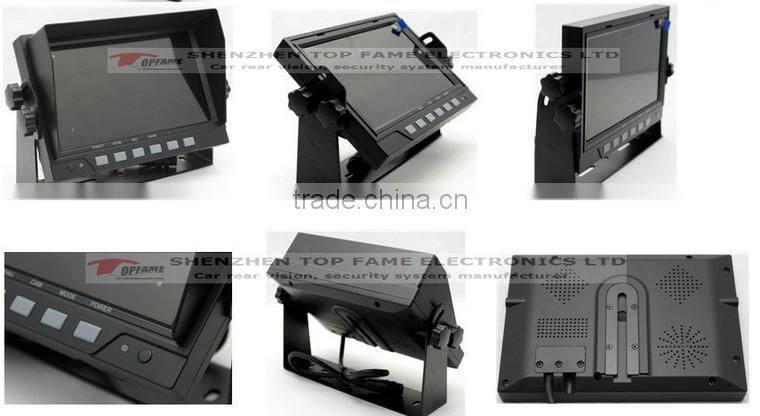

7" TFT LCD monitor with led backlight

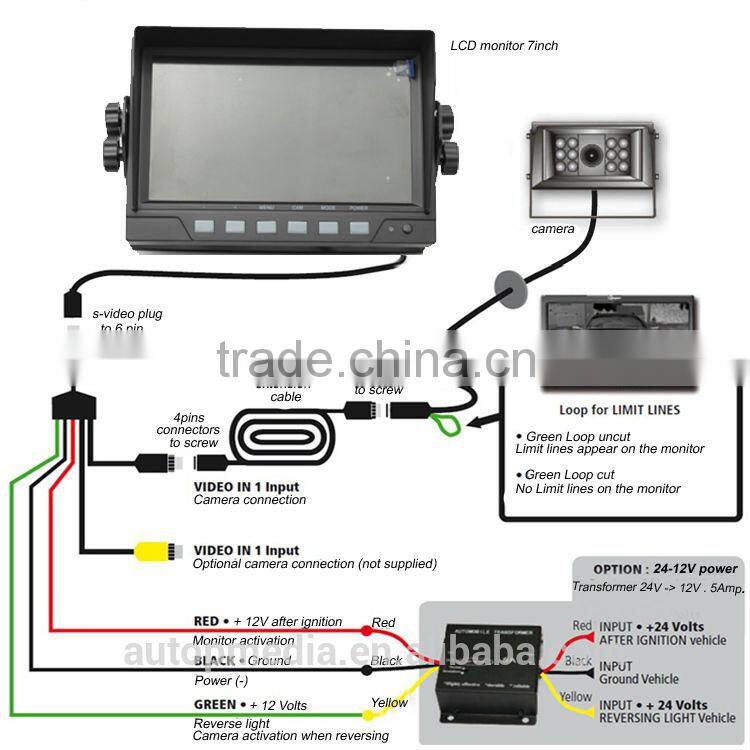

RV-7009V rearview system connection
