Specifications
rear view camera for vehicles* With 9" sunvisor DVD monitor
* Back up CCD/CMOS camera
10/15/20m extension cable

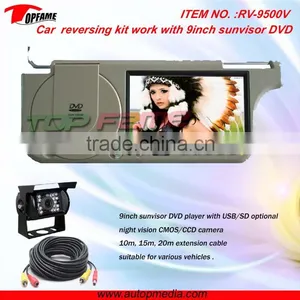

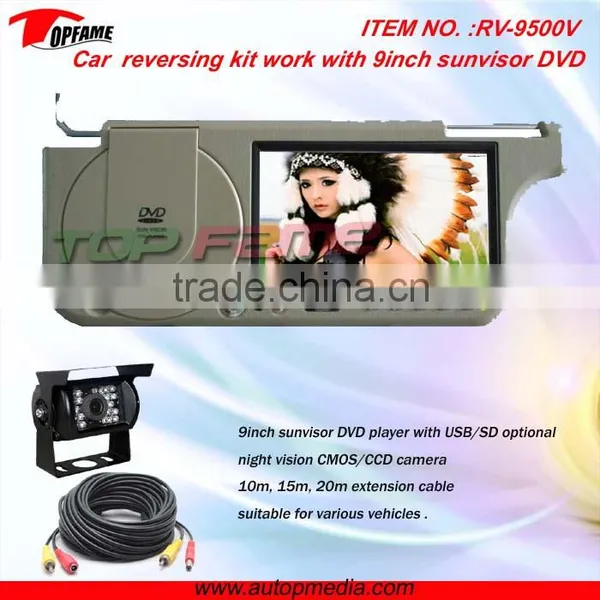

RV-9500V 9inch Rear View Car Camera with sunvisor DVD monitor for Bus/Truck/Vans
Monitor Spec:
9" SUNVISOR DVD MONITOR
support DIVX/DVD/VCD/CD/MP4/MP3/WMA/JPEG/ETC.
Support USB/SD/MMC/MS for multimedia playback
support game player optional
Ratio: 16:9 /4:3
Pixel: 800x 480 480x234
System: PAL/NTSC auto switch
Video input: 2 way
Audio input: 1 way
Backup: V2 auto reverse
View angle: U/D/L/R
Adjustable image brightness/color/contrast
With remote control and OSD menu
Power supply: DC12V, 11-32V
Current: 0.7A
Luminance: 300-400/m2
Operating temp.:-10°C ~ 60°C
Device size:389*171*25mm(W/H/D)
weight: approx. 2000g
Back up camera:
Image Sensors: 1/4" /1/3" CMOS/CCD
TV System:PAL / NTSC
waterproof rate:Ip67
Effective Pixels:628x582 pixels / 656×492 pixels
Resolution:420TV lines
Minimum Illumination:1.0Lux / F1.2
Pin Lens:f=3.6mm / F = 2.0
Lens Angle:120°
Vertical Sync. Frequency:50Hz / 60Hz
Video Output:1.0vp-p, 75Ohm
Power Supply:DC12V, 11-32V
Current Consumption:≤200mA
Electronic Shutter:1/60 ~ 1/10,000 Seconds
Gamma Consumption:0.45
S/N Ratio:Better than 48Db
Scanning System:2:1Interlace
Operating Temperature:-20°C~70°C ,RH95% MAX
Storage Temperature:-40°C~85°C ,RH95% MAX
Package included:
9inch sunvisor DVDLCD monitor x 1
Remote control x 1
1/4" Sharp CCD bus camera x 1
0.8M aviation connection cable x 1
20m connection cable x 1
With different cable, camera optional:
