Specifications
Smart Car Parking System for Truck/Vans/Bus* 7inch monitor with built in Quad display
* 1/3" CMOS/CCD camera night vision
RV-7000V Smart Car Parking System with Touch Button monitor, CMOS/CCD camera for Truck/Vans/Bus
7" rear view monitor
Built in Quad for 4 section display
Ratio: 16:9 /4:3
Pixel: 480*234
Video input: 4 way
Backup: V2 auto reverse
Eight language OSD menu
View angle: U/D/L/R
Power supply: DC11-32V
Current: 0.7A
Luminance: 300-400/m2
Operating temp.:-10°C ~ 60°C
Device size:171*125*19mm(W/H/D)
weight: 550g
Installation: (stand bracket, Air-container Vent, headrest, Z-clip optional)

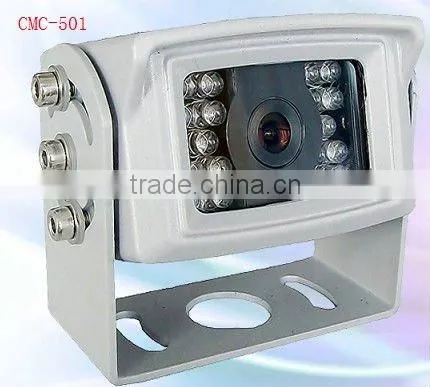

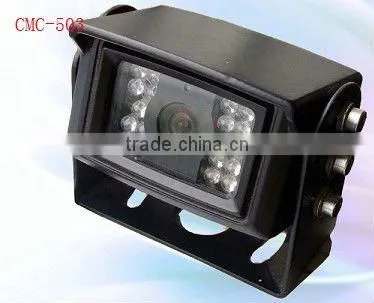

Backup Camera Spec
ImageSensors: 1/4" Sharpe CCD (1/3"Sharpe CCD
-1/3"SonyCCD or 1/4",1/3" CMOS Optional)
TV System:PAL / NTSC
waterproof rate:Ip67
Effective Pixels:512 x 582 pixels / 512 x 492 pixels
752x582 pixels / 768×494 pixels
Resolution:420TV lines
Minimum Illumination:1.0Lux / F1.2 0.2Lux / F1.2 (0Lux IR ON)
Pin Lens:f=2.8mm / F = 2.0
Lens Angle:120°
Vertical Sync. Frequency:50Hz / 60Hz
Video Output:1.0vp-p, 75Ohm
Power Supply:DC11-32V
Current Consumption:≤300mA
Packaging included:
7inch monitor x 1
Stand bracket x 1
1/4" sharp CCD camera x 4
20m water resistant cable x4
Other type of camera optional
