Specifications
RV-430A CE RoHS car rear view system4.3inch digital panel with bracket with menu
1/3" CMOS Camera
Infrared LED light

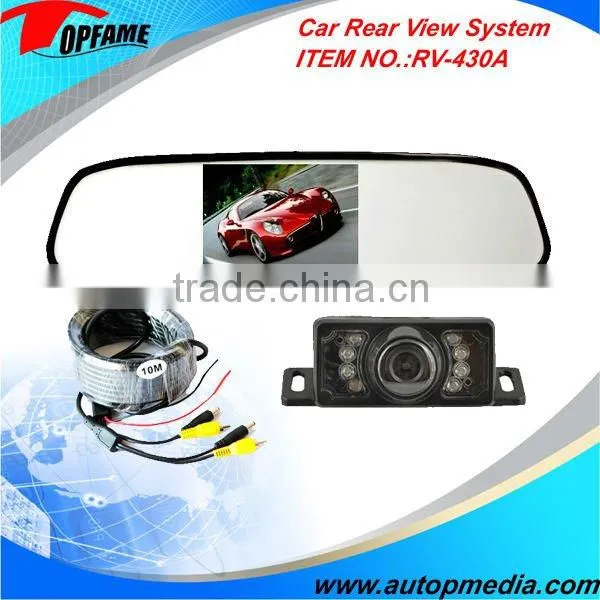

Shenzhen supplier CE RoHS car rear view system with 4.3 inch monitor and backup camera
RV-430A Car rear view system
4.3inch digital panel with bracket with menu
1/3" CMOS Camera,Infrared LED light
10M video cable
4.3inch digital LCD monitor
Resolution: 640(h) x RGB x 480(v)
Visible Area : 96 x 54mm
TV system: PAL/NTSC auto-switch
Power:DC 11-32V 1-3W
Auto save power function
Brightness and contrast adjust button
Ratio: 16:9
Video input: VI/V2 (V2 auto reverse)
Operation Temp.: -5°C- +50°C
Storage Temp.:-20°C - +60°C
Color: black
Display: black screen when no signal input
Dimension(L)*(H)*(D): 120*76*16MM
Net weight: 130g
Rear view Camera
Image Sensors: /1/3"1/4" CMOS/Sharp/Sony CCD
TV System:PAL / NTSC
waterproof rate:Ip67
Effective Pixels:512 x 582 pixels / 512 x 492 pixels
Resolution:420TV lines
Minimum Illumination: 0Lux / F1.2
Pin Lens:f=2.8mm / F = 2.0
Lens Angle:120/170°
Power Supply:DC12V
Current Consumption:≤300mA
Operating Temperature:-20°C~70°C ,RH95% MAX
Packaging included:
4.3inch monitor x 1
bracket x 1
1/3" CMOS camera x 1
10M video cable x 1
10m, 15m, 20m extension cable optional
CCD camera optional
With different type of camera, cable optional:
More Models:
