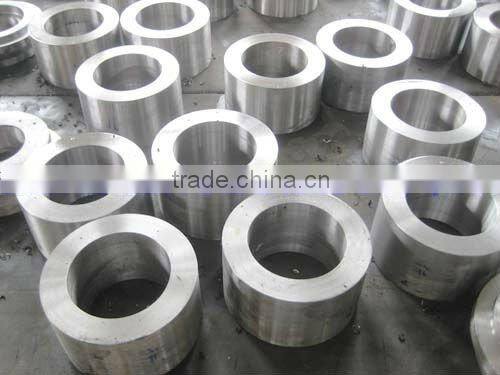

Sand blasting forging

Specifications

Focus on process quality & stage inspection.
The third-part inspection(TPI)
Integral test bars are taken from forgings.

Focus on process quality & stage inspection.

We are professional manufacturer of forgings and have 10 year’s forgings export experience.



Material:ASTM A105	Heat-treatment:Q+T	UT&MPT as per asme A355&ASME B16.34
OD:762mm	Yield=350Mpa	Elongation=34.0%
ID:587mm	Tensile=540Mpa	Reduction=75.8%
H:430mm	Headness(Avg)=167HB	Minimum reduction ratio of product is 4:1



1. The mechanical property is carried out at lab authorized National.
2. The visual & dimension & hardness on component are inspected & tested.
3. All procedures of production are recorded & traceability and offer the 3.1 certificate.
4. According to customer demand,we would carry out the intermational Third-Party Inspection(TPI) and offer EN10204 3.2 Certificate.
5. UT & MPT are witnessed by BVIS OF TPI as per ASME A355 & ASME B16.34.
6. Through sandblasting treatment made the product surface texture more uniform.
7. The integral test bars for mechanical property are taken from location of forings.

 About us



For the forging,the material of our capability include all kinds of steel(like CC/CS/Martensitic Steel/Duplex SS)

Our company is ISO9001:2008 Certified for the production & sevice of forging steel parts of valves & flanges and design.

All procedures of making included heat-treatment are completed in our own forged shop,heat-treatment shop and machining shop.
