Help CenterCoaxial Cable RG6 Compression F Plug Connector, Coaxial Cable Connector With Cheap Price
Related Products
-
Good Quality RG6 F Connector Crimp UL CE ROHSUS$ 0.3 - 1.5MOQ: 100 Pieces -
Female Solder Connector MCX Semi FlexibleUS$ 0.5 - 2MOQ: 100 Pieces
-
High Performance Male Plug Crimp MCX Connector for CableUS$ 0.5 - 2MOQ: 100 Pieces
-
MCX Male Coaxial Connector for RG174 CableUS$ 0.5 - 2MOQ: 100 Pieces
-
PCB Mount MCX Connector Right Plug Male 50 OHMUS$ 0.5 - 2MOQ: 100 Pieces
1. Fast delivery
2. Low MOQ
3. ODM&OEM welcomed
4. High quality
5. Competitive price
Features
F connectors series are economically priced connectors specially designed for use with NTSC TV ANTENNA and other similar applications.
| Characteristic impedance | 75Ω | Temperature range | -65~+165°C |
| Frequency range | DC~1GHz | Working Voltage | ≤170V max |
| Center conductor retention force | ≥0.2 N | Vibration | 100m/s2 (10~500Hz) |
| Conductor resistance | Internal ≤ 10 mΩ | Mating cycles | ≥500 |
| External ≤ 5 mΩ | Withstanding voltage | ≤500V rms | |
| Voltage Standing Wave Ratio | Straight | ≤1.20 | |
| Right angle | ≤1.30 | ||
| Material And Plating | Parts Name | Material | Plating |
| Body | Brass | nickel plated | |
| Pin contact | Brass | gold or silver plated | |
| Resilient contact | Tin bronze | gold or silver plated | |
| Insulators | PTFE | - | |
| Gaskets | Silicon rubber | - | |
| Crimp ferrules | Copper alloy | nickel or gold plated | |
| Applicable standard | IEC 60169-24 | ||

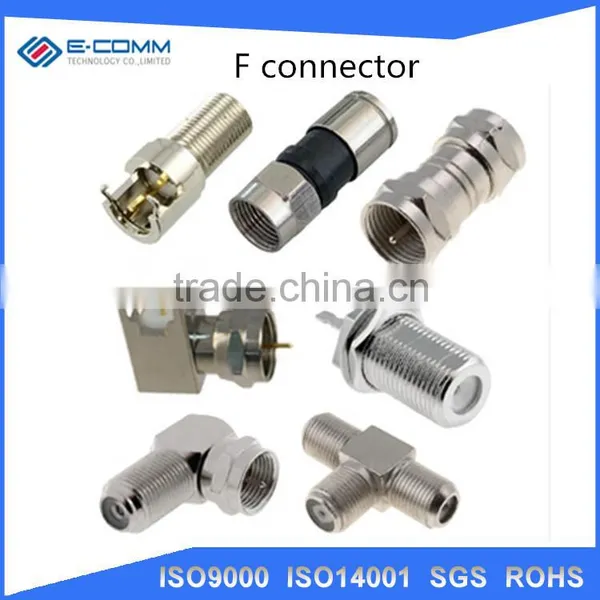

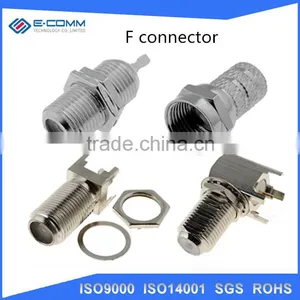

Product shows:
Packing and Shipping:
1.Standard packing : 1pc/polybag for inner packing ,Carton for outer packing or as customers' requirements.
2.Express delivery: UPS / DHL / TNT / FEDEX / EMS/Air freight /Shipping to meet customers' need.
Ours main test device:
We can offer you all the accurately date about ours all product from ours lab.
Include all these following items.
And make sure all the proseccing reject ratio is 0.
<This is ours promise for all ours customers.>
FAQ :
1,Q:what is you brand ?
A: E-comm antennas
2,Q:how can i get the sample ?
A: if you need sample to test ,please pay for the shipping cost ,there we can free for two samples to you
3,Q: how much the shipping cost will be for sample ?
A :That depends on the weight and packing size of the package.
4, Q :how can i get the price list ?
A :please send the email and order information for us , so we can offer you the latest price.
Pls click here back to ours home page!
