Help CenterResistance Coil Electric Kettle Heating Element
Related Products
-
Electric Water Heater Heating Element of the KettleUS$ 0.8 - 2MOQ: 1 Piece -
Water Heater Heating Element of Electric KettleUS$ 0.8 - 2MOQ: 1 Piece
-
Hot Sell AC 220V 2500W Stainless Steel Electric Kettle Heating Element With Best PriceUS$ 0.8 - 1.1MOQ: 10 Pieces
-
Hot Sell Powerful Water Heating Element for Electric Kettle Boiling Water With Best PriceUS$ 0.8 - 1.1MOQ: 10 Pieces
-
Hot Sell High Quality Immersion Electric Water Kettle Heating Element With Best PriceUS$ 0.8 - 1.1MOQ: 10 Pieces
| |||||||
|
Changshu Tinymote Electrical Appliance Co., Ltd. is the professional manufacturer of heating element with more than 10 years experience.Our factory total area 3000 square meters,which is located at Suzhou City, near by Shanghai,only 50 kms far from our factory to Shanghai and 200 kms to Ningbo.
Our main products are water heating element for water heater, solar energy heating element and ALCI( capability of leakage protective plugs.).we introduced many advanced technology and equipment so that we can provide higher quality product to customer, and the delivery time will be shorter. Our products are accpeted by many customer.
| |||||||
| |||||||
| Our Product Experience | |||||||
| Tiny mote is the professional manufacturer of electric heater,with experienced design team, specialized in the production of high quality electric heating element, which mainly sales at: South Africa,the Middle East,Latin America and so on. | |||||||
| |||||||
|
|
Technical Parameter | |
resistance coil electric kettle heating element | |
Body Material |
SUS304 |
Pipe Size |
Φ6.5 |
Tube wall thickness |
0.4~0.5mm |
Terminal Size |
SS187#parent plugins |
Terminal Connection |
spot welding |
Temperature control |
Snap action thermostat |
Watt |
Customized |
Voltage |
Customized |

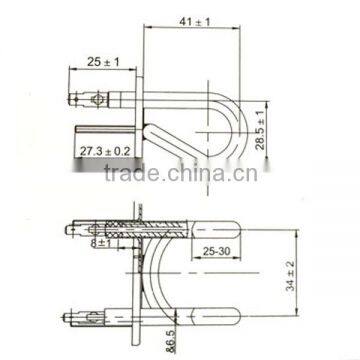

Overall Dimensions |
OEM,customized in drawing or samples. |
Electrical Performance |
AC1500V/0.5mA.3S;DC500V 100MΩ;Leakage current<0.5mA |
Life Time |
Power on 0.5 time voltage boil dry until trip,then water cooling within 5 seconds,non-yellowing on tube surface. |
Warranty |
TWO year |
High- pot test |
1500V/2mA/1S |
Resistance insulation |
100MΩ MIN |
Leakage current |
0.5mA MAX |
Surface Treatment |
Natural color bright heat-treatment, rustproof in water |
Hydraulic testing |
Screw bolt resistance 1.2N.m torsion not shed |
Flange material |
SUS304 or SUS430 |
|
Seal with sealing ring,fasten with M5 screw |
| ||||||||
| ||||||||
| ||||||||
|
|
|
|
1.Q: Are you a trading company or .a factory? A:We are a factory. |
|
2.Q:Where is your factory located? How can I visit there? A:Our factory is located in Changshu of Suzhou city, Jiangsu province, China. It is about 100 km far from Changshu to Shanghai,drive only need 2 hours to our factory. All the client, from home or abroad, are warmly welcome to visit us. |
|
3.Q:How can I get some samples? A:We are honored to offer you samples,will send to you by express. |
|
4.Q:Are your products customized? A:Yes, the products in the website are only common type or the customized types ordered by our customers, we can supply products according to your samples and drawings. |
|
5.Q: How does your factory control quality? A:Quality is priority, our QC always keep step to quality control during production process,all of the orders will be delivery after QC passed. |
