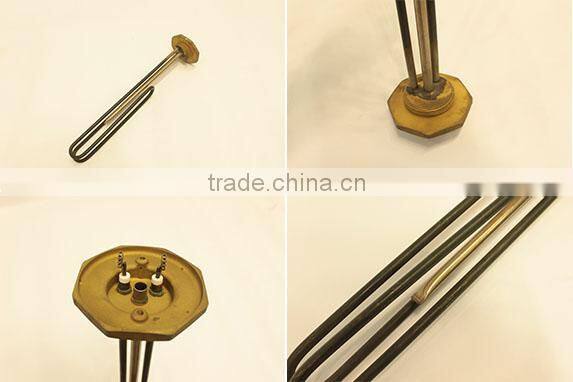

SUS304 600W Electric Water Immersion Heater With Flange

Name: SUS304 600W Electric Water Immersion Heater With Flange
Brand: Tinymote
Price: USD $1.8 - 3.8 / Piece

FOB Price

USD $1.8 - $3.8 / Piece

1 Piece(Min.Order)

Supply Ability 40000 Piece / Pieces per Month
Port SHANGHAI/NINGBO
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:

Jiangsu, China

Brand Name:

Tinymote

Model Number:

TM2038

Product Description

Company Information

Changshu Tinymote Electrical Appliance Co., Ltd. is the professional manufacturer of heating element with more than 10 years experience.Our factory total area 3000 square meters,which is located at Suzhou City, near by Shanghai,only 50 kms far from our factory to Shanghai and 200 kms to Ningbo.

Our main products are water heating element for water heater, solar energy heating element and ALCI( capability of leakage protective plugs.).we introduced many advanced technology and equipment so that we can provide higher quality product to customer, and the delivery time will be shorter. Our products are accpeted by many customer.

We hope to establish a long term business relationship with you on the basis of high quality products, competitive prices, timely delivery and the best service.Sincerely welcome new and old friends both from home and abroad to visit us for patronization and
cooperation!

Our Product Experience

Tiny mote is the professional manufacturer of electric heater,with experienced design team, specialized in the production of high quality electric heating element, which mainly sales at: South Africa,the Middle East,Latin America and so on.

10 years production experience of electric heater	Professional team in design and productionthe order feedback in process every 3 days.	Complete electrical performance testing equipment

Application

Products Application

1.Water heater
2.Plastic Processing & packaging
machinery
3.Dies&Tools
4.Water&Oils heating appliances
5.Vending machines
6.Kitchen equpiments
7.Medical equpiments
8.Home appliance parts

Technical Parameter

Technical Parameter
SUS304 600W Electric Water Immersion Heater With Flange
Body Material	T2 Copper;SUS304;SUS316L;SUS310S,and so on.
Pipe Size	Φ6.5~8.5mm
Tube wall thickness	0.4~0.6mm
Terminal Size	SS250#parent plugins
Terminal Connection	Spot welding
Temperature Control	Insertion Regulated Thermostat; sealing with screw flange coupling
Watt	Customized
Voltage	Customized
Overall Dimensions	OEM, customized in drawing or samples.
Electrical Performance	AC1500V/0.5mA.3S;DC500V 100MΩ;Leakage current<0.5mA
Life Time	Rated voltage to boil water until temperature control disconnect,outage after 5 seconds then drain and cooling, refill cold water to boil until the temperature control disconnect.So more than 10000 cycles.
Warranty	TWO year
High- pot test	1500V/2mA/1S
Resistance insulation	100MΩ MIN
Leakage current	0.5mA MAX
Surface Treatment	Electronickelling;Natural color bright heat- treatment
	Flange and pipe joint with brazing,Withstand 1.2MPa pressure test no leakage
Flange material	The weight of 1 3/4"copper flange is about 200g,1 3/4"SS flange
	No serious leakage solder inside of flange

Product Details

Our Services

Production Process&Team

Accept your enquiry requirements, our engineer will choose ingredients
design the installation and electrical performance, also equip with the complete equipment design, to ensure the product safety
conform to the requirement of production condition and quality in consistency


Demand	Design and make drawing according to the product requirements	Tooling design and production	Sample production & proceduce confirmation


Operater training & assessment	Professional operating	Strict testing

Packaging & Shipping

FAQ

1.Q: Are you a trading company or .a factory?
A:We are a factory.

2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Changshu of Suzhou city, Jiangsu province, China. It is about 100 km far from Changshu to Shanghai,drive only need 2 hours to our factory. All the client, from home or abroad,
are warmly welcome to visit us.

3.Q:How can I get some samples?
A:We are honored to offer you samples,will send to you by express.

4.Q:Are your products customized?
A:Yes, the products in the website are only common type or the customized types ordered by our customers, we can supply products according to your samples and drawings.

5.Q: How does your factory control quality?
A:Quality is priority, our QC always keep step to quality control during production process,all of the orders will be delivery after QC passed.
