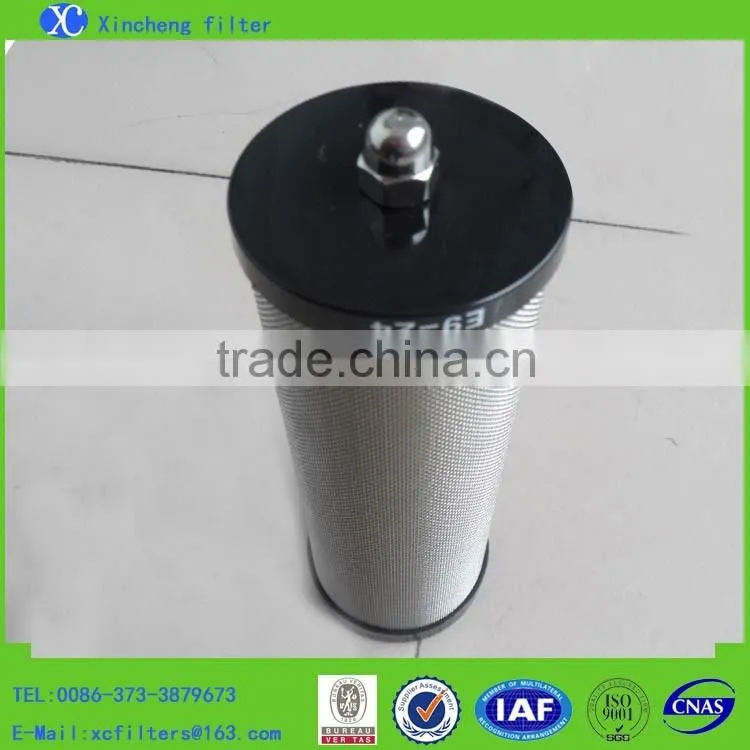

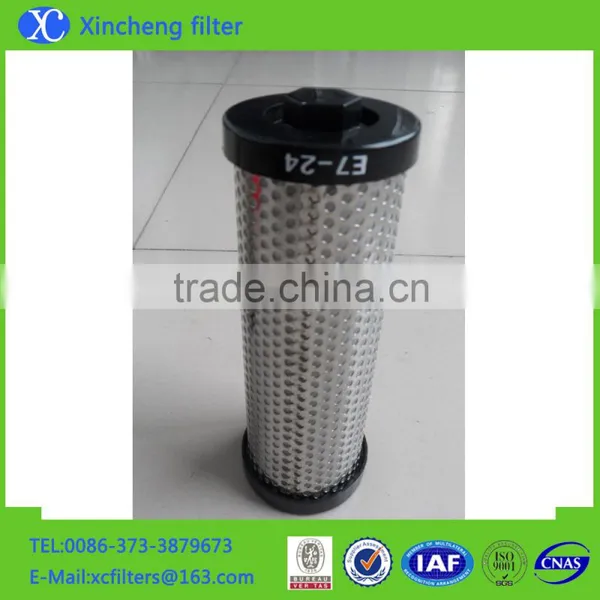

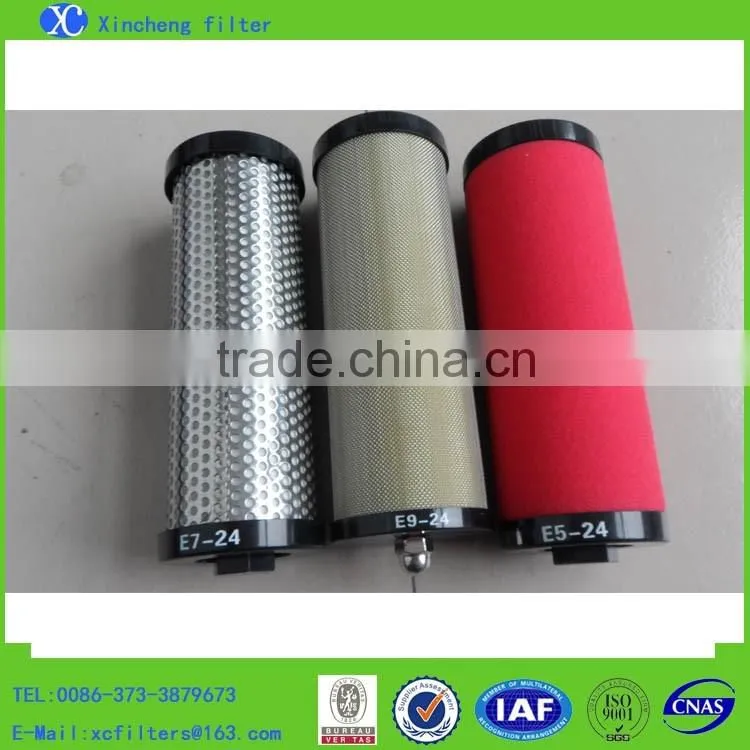

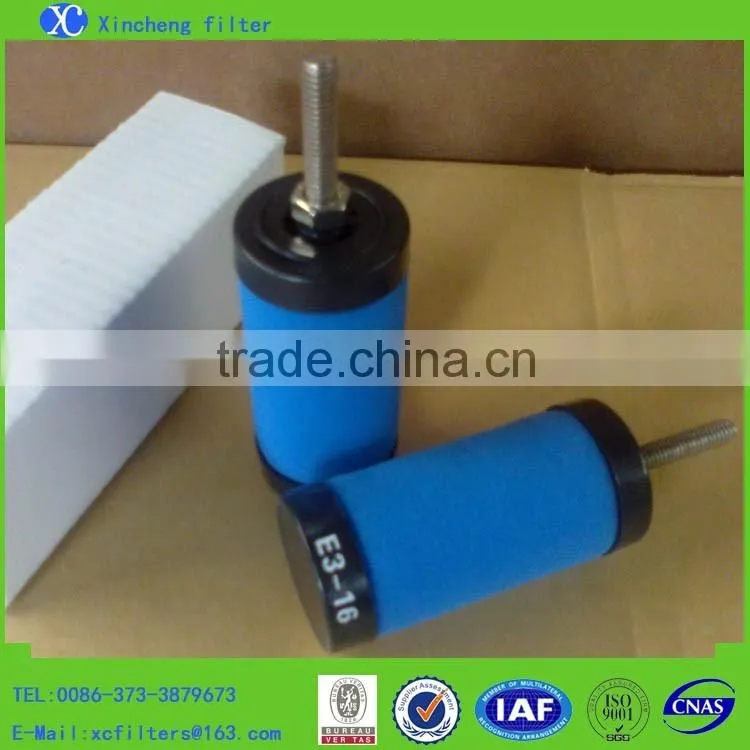

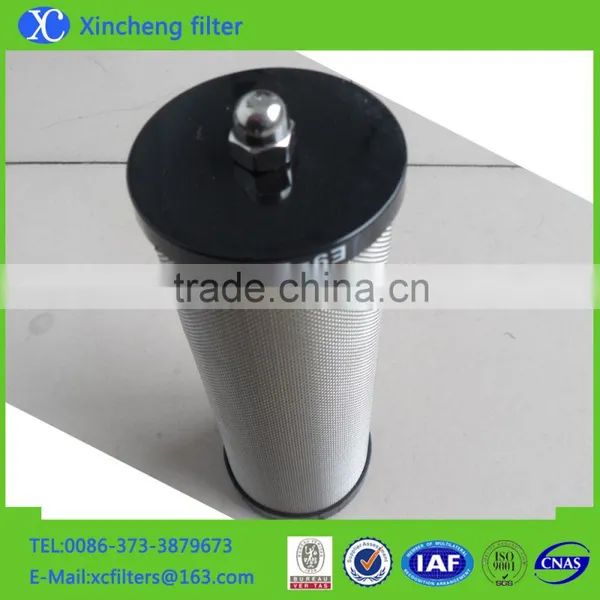

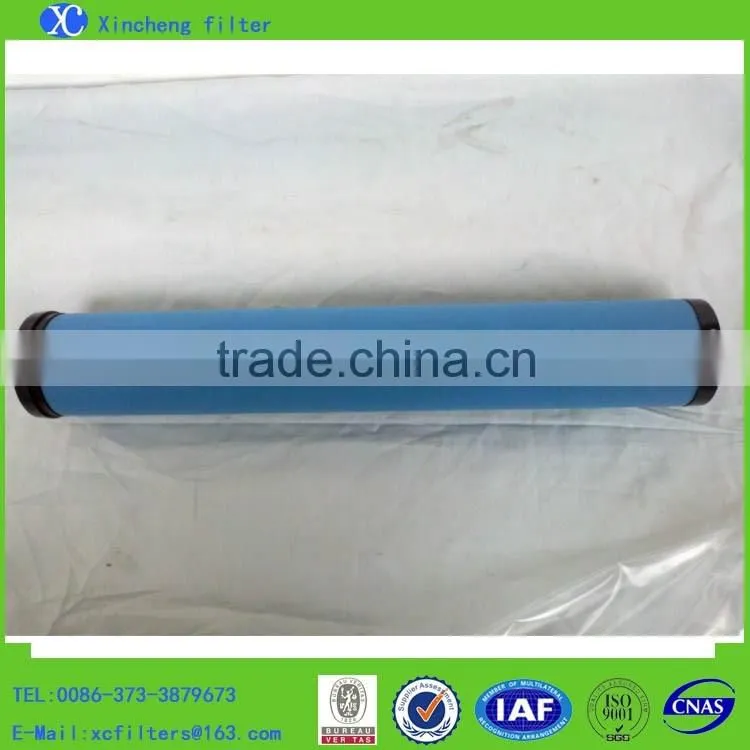

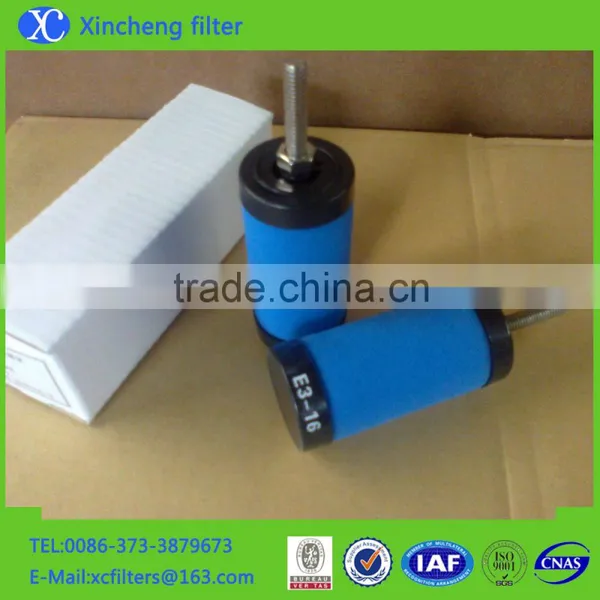

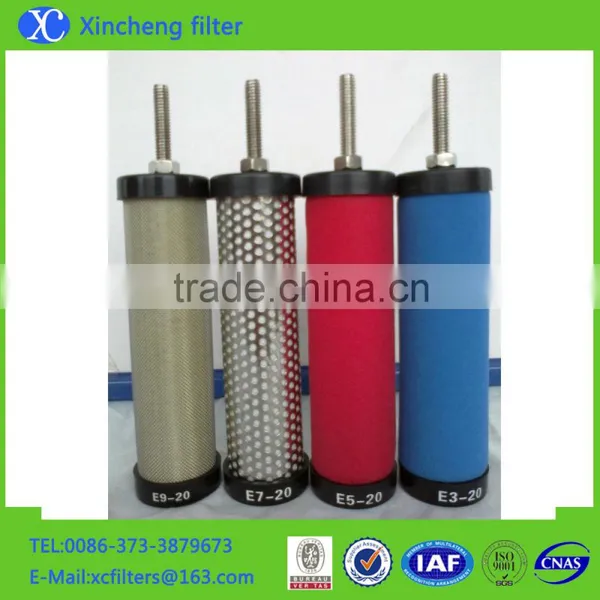

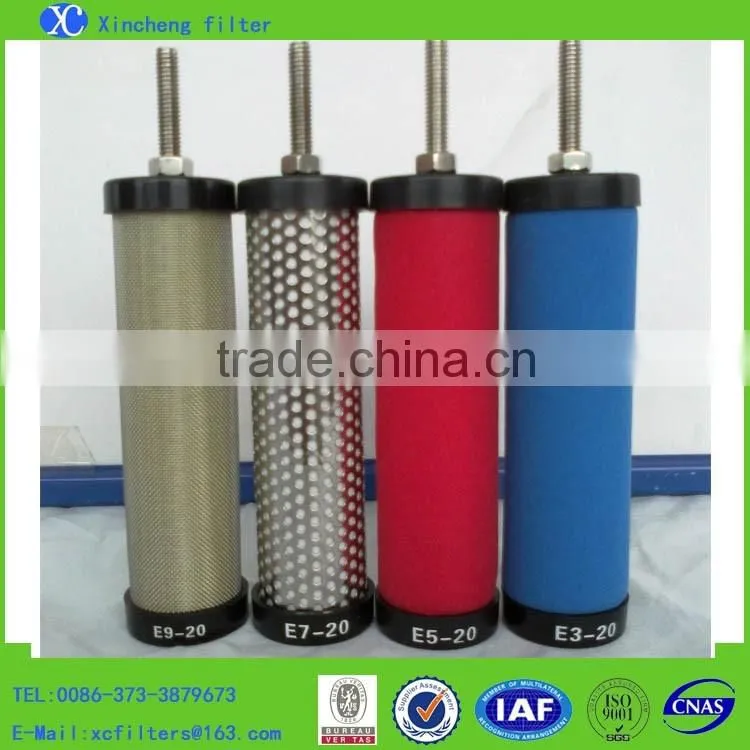

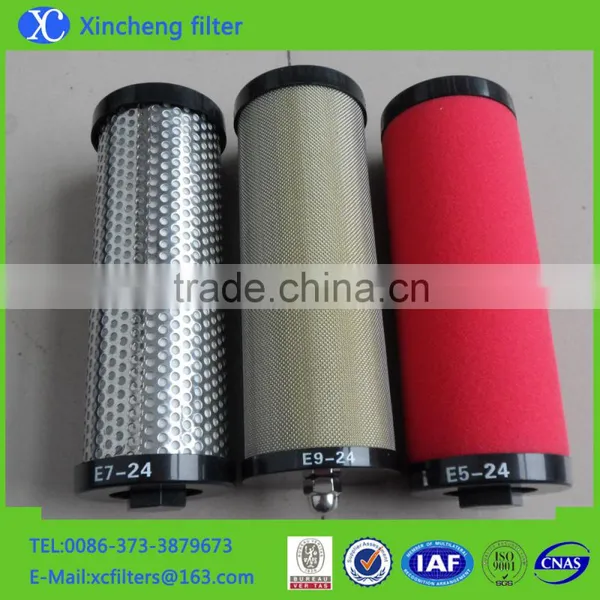

Hankison compressor inline air filter cartridge E9-24
Hankison compressor air filter E9-24 Introduction
Hankison Filter are used to filter different structure of stainless steel skeleton, structure, excellent performance, welding, high strength, low airflow resistance. Acid class of chemical with anti-corrosion oil paint foam bubble sleeve closed, preventing the coalescence of liquid back into the air, to ensure the high efficiency degreasing. is widely used to filter out the impurities in the air, such as oil, water, solid particles.
1. Hankison compressed air filter is widely used to filter out the impurities in the air, such as oil, water, solid particles and so on. It belongs to Compressed Air Filter
2. If we do not remove these impurities, they will affect the service life of the equipment, and even threaten the normal operation of the system. The compressed air is the main security energy in the large-scale industrial production, so precision filtration of the air is particularly important.
Hankison air filter cartridge E9-24 Description
1. Filter materials: Imported glass fiber.
2. Filtration accuracy: 0.01μm, 1μm, 25μm.
3. Strength: 1.0Mpa, 2.0Mpa, 16.0Mpa, 21.0Mpa.
4. Application: used for hydraulic and lubrication system oil filter, to filter out pollutants.
Hankison Filter Cartridge---Old Models
Flow Rate NM3/min | C Class | T Class | A Class | H Class | Filter Micron (μm) |
0.5 | 07.4442-01 | 0731-4 | 0712-3 | 0715-3 | C Class: 3 |
2~3 | 07.4444-01 | 0731-5 | 0713-5 | 0715-5 | T Class: 1 |
6 | 07.4445-04 | 0731-6 | 0713-6 | 0715-6 | A Class: 0.01 |
8 | 0.74446-01 | 0731-7 | 0713-7 | 0715-7 | H Class: 0.01 |
10~12 | 07.444-01 | 0731-8 | 0713-11 | 0715-11 |
|
15 | 07.4447-01 | 0731-8 | 0713-11 (2 pieces) | 0715-11 (2 pieces) |
|
20 | 07.4447-01 (2 pieces) | 0731-9 | 0713-11 (3 pieces) | 0715-11 (3 pieces) |
Hankison Filter Cartridge---New Models
Flow Rate N M3/min | E1 Degreasing Deodorant Filter Cartridge | E3 Super UF Degreasing Filter Cartridge | E5 UF Degreasing Filter Cartridge | E7 Ventilation Pipe Filter Cartridge | E9 Separate Filter Cartridge | Filter Precision (μm) | Residual Oil Component (ppm) |
0.57 | E1-12 | E3-12 | E5-12 | E7-12 | E9-12 | E1: 0.01 | 0.001 |
1 | E1-16 | E3-16 | E5-16 | E7-16 | E9-16 | E3: 0.01 | 0.001 |
1.72 | E1-20 | E3-20 | E5-20 | E7-20 | E9-20 | E5: 0.01 | 0.01 |
2.9 | E1-24 | E3-24 | E5-24 | E7-24 | E9-24 | E7: 1 | 1 |
4.9 | E1-28 | E3-28 | E5-28 | E7-28 | E9-28 | E9: 3 | 5 |
7.2 | E1-32 | E3-32 | E5-32 | E7-32 | E9-32 |
|
|
11 | E1-36 | E3-36 | E5-36 | E7-36 | E9-36 |
|
|
14 | E1-40 | E3-40 | E5-40 | E7-40 | E9-40 |
|
|
18 | E1-44 | E3-44 | E5-44 | E7-44 | E9-44 |
|
|
22 | E1-48 | E3-48 | E5-48 | E7-48 | E9-48 |
|
Quality Assurance
ISO 2941------Collapse & Burst Resistant
ISO 2942------Fabrication & Integrity Test
ISO 2943------Material Compatibility with Fluids
ISO3723------Method for end load test
ISO 3724------Flow Fatigue Characteristics
ISO 3968------Pressure Drop vs. Flow Rate
ISO 4572------Multi-pass Performance Testing
Filter Application
Steel factory / Power Plant / Paper mill / Wind plant / Textile factory / Marine line / Oil field / Mining / Chemical line etc.
Company Profile
Xincheng is located in filter hometown of China, specializes in the R&D, manufacturing, distributing of machinery equipment, we focus on filtration line for 18 years with superior technical team, excellent after-sale service. Xincheng passed through ISO 9001-2000 quality certificate, always insist on the principle“Quality is everything” to best serve worldwide client throughout the way.
Our Main Products for you choose:
Hydraulic Oil Filter
Pall Filter, Hydac Filter, Parker Filter, Donaldson Filter, EPE Filter, Internormen Filter, Taisei Kogyo Filter, MP-FILTRI Filter, Filtrec Filter, Stauff Filter, Vickers Filter, Argo Filter, HY-PRO Filter, Rexroth Filter.
Leemin Filters
Air Compressor Filter
Atlas Copco Filter, Ingersoll Rand Filter, Fusheng Filter, Liutech Filter, Compair Filter, Sullair Filter, MANN Filter, Kobelco Filter, Kaeser Filter, Boge Filter, Sotras Filter, Apureda Filter, HITACHI filter.
Compressed Inline Filter
Atlas Copco Filter, Ingersoll Rand Filter, Domnick Hunter Filter, Hankison Filter, Ultrafuilter, Zander Filter, Orion Filter, SMC Filter, BEA Filter, Parker Filter, Hiross Filter.
Air Filter Cartridge
Donaldson Filter
Vacuum Pump Filter
Germany RIETSCHLE, Germany LEYBOLD, Germany Busch, Germany Becker
We also produce filters according to customer's special requirements.
